User's Manual
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.

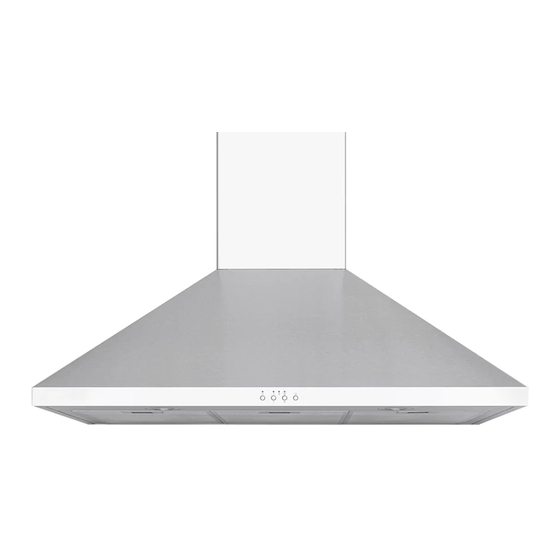

WS-50E30SS
WS-50E36SS
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7 DAYS
OF DELIVERY WILL BE DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
www.windsterhood.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Windster WS-50E30SS
Summary of Contents for Windster WS-50E30SS
- Page 1 User's Manual WS-50E30SS WS-50E36SS NOTE: PLEASE INSPECT HOOD IMMEDIATELY UPON RECEIVING. CLAIM OF DAMAGE AFTER 7 DAYS OF DELIVERY WILL BE DENIED. This unit is designed for indoor residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Safety Information .............. 2 – 3 Content Checklist ..............4 Measurements ................5 Preparation ................6 Installation ................7 – 8 Installation Diagram ..............9 Operation & Features ............10 – 11 Cleaning & Maintenance ............12 Troubleshooting .............. -
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK, AND/OR INJURY OBSERVE THE FOLLOWING: • Unit is intended for indoor residential use only. If you should have questions, contact the manufacturer at the address or telephone number listed in the warranty. - Page 4 SAFETY INFORMATION TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE. • Regardless of heat level, never leave any surface materials unattended while operating an open flame. • Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
-
Page 5: Content Checklist
CONTENT CHECKLIST CONTENT CHECKLIST CONTENTS INCLUDED (1) WS-50E series(30”, 36”)hood assembly (1) Lower duct cover (14-1/4”) (1) Upper duct cover (13-3/4”) (1) User’s manual (1) 6”/ 7” transition collar (2) Aluminum filters/ Baffle filters (30” model only) (3) Aluminum filters / Baffle filters (36” model only) (1) Screw packet CONTENTS NOT INCLUDED WS-50EEXTDC (Extension duct cover) -
Page 6: Measurements
MEASUREMENTS... -
Page 7: Preparation
PREPARATION PREPARATION BEFORE YOU START **BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT** **DO NOT INSTALL IF DAMAGED** **RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED** Be sure you have all the content of your purchase and required tools for this installation. -
Page 8: Installation
INSTALLATION INSTALLATION 1. WALL MOUNT INSTALLATION Make sure all preparation steps are completed. Determine your ceiling height to see if you need an extension. i. Hood unit height = 10-1/2” ii. Duct cover height = 14-1/4” (lower) 13-3/4” (upper) iii. Minimumheight (duct cover only) = 14-1/4” iv. - Page 9 INSTALLATION 3. COLD WEATHER INSTALLATION (OPTIONAL) Check with your local building codes to see if a CFM reducer is an acceptable alternative to make-up air. Open the WS-50ECFMR (CFM reducer) and inspect for any sign of defect or damage. (ie. Cracks, broken flips) AFTER COMPLETING Step A –...
-
Page 10: Installation Diagram
INSTALLATION DIAGRAM INSTALLATION DIAGRAM... -
Page 11: Operation & Features
OPERATION & FEATURES OPERATION & FEATURES EASY ACCESS CONTROL SWITCH (from left to right) Button 1 –Lights ON/OFF Button 2 – Decrease speed Button 3 –Increase speed Button 4 –Power ON / OFF HALOGEN / LED LIGHTS A set of (2) Halogen lamp will be included. Additional Halogen or LED lamp may be purchased separately. - Page 12 OPERATION & FEATURES...
- Page 13 OPERATION & FEATURES CHARCOAL FILTERS **DO NOT WASH CHARCOAL FILTERS! IT WILL DISSOLVE!!** Insert the charcoal filters on each side of the motor on top of the white protective grill as shown below. (Fig. 3a) Fig. 3a Rotate the charcoal filters in a counter-clockwise motion until you hear a click.
-
Page 14: Cleaning & Maintenance
CLEANING & MAINTENANCE CLEANING& MAINTENANCE WARNING!!! To prevent the possibility of a fire and explosion, do not use flammable liquids or solvents to clean the unit or any of its parts. Check to make sure all power sources are disconnected before servicing or taking unit apart for cleaning. -
Page 15: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING WARNING!!! Check to make sure all power sources are disconnected before starting any troubleshooting. Safety gloves and glasses should be worn when working on the unit. Serious injury or death may occur if safety precautions are not followed. WS-50E Series Light issue (All not 1. -
Page 16: Part List / Replacement
PART LIST / REPLACEMENT PART LIST / REPLACEMENT Description Description Duct cover bracket Capacitor Duct cover Control switch 6” collar Motor Duct cover panel Aluminum Filters Hood bracket Hood body assembly Halogen / LED lights Light cover... -
Page 17: Warranty / Contact Us
For a period of one (1) year from the date of purchase, if the product is determined to be defective, Windster will attempt to repair the product, at its option, at no charge. After the warranty period, customer must pay for all labor charges. During the "labor"... - Page 18 CONTACT US Windster Hoods, Inc. 15210 Nelson Ave. City of Industry, CA 91744 TEL: (626) 330 – 5800 FAX: (626) 330 – 5811 Toll Free: (877) 350 – 5215 E-mail: Support@windsterhood.com © Windster Hoods, Inc. Information subject to change without notice...
