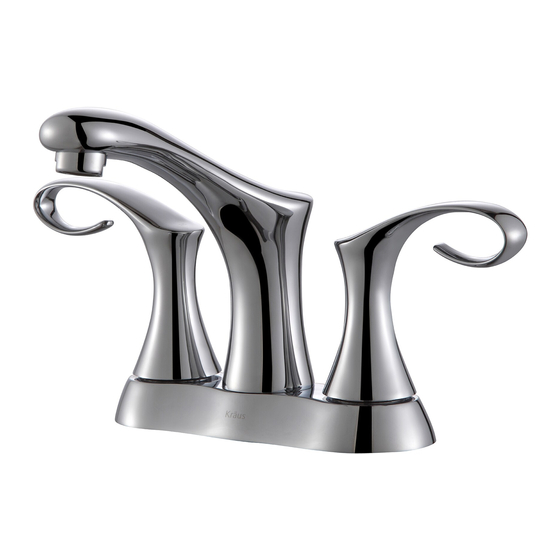

4” centerset basin faucet

Advertisement

Quick Links

I N S TA L L AT I O N MA N UA L
Cirrus 4" Centerset Basin Faucet
FUS-13102
www.kraususa.com I
toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cirrus FUS-13102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kraus Cirrus FUS-13102

  • Page 1 I N S TA L L AT I O N MA N UA L Cirrus 4” Centerset Basin Faucet FUS-13102 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc.
  • Page 2 Thank you for purchasing Kraus We would like to take this opportunity to thank you for your business with Kraus USA. It is our sincere hope that you are completely satisfied with your experience. We welcome any questions or comments you may have, and will be glad to assist you in the future.
  • Page 3: Prior To Installation

    ∅ Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800- 775-0703 for a replacement 1 1/4-18UNF-2A •...
  • Page 4 FUS-13102 Diagram and Parts List A. Faucet Body D. Aerator Assembly B. Putty Plate D1. Aerator Washer C. Mounting Nut D2. Aerator D3. Aerator Cover...
  • Page 5 Faucet Dimensions...
  • Page 6 Lift Rod Drain Diagram and Parts List a. Waste Stopper b. Drain c. Rubber Washer d. Concave Washer e. Plastic Washer f. Mounting Nut g. Tailpipe Washer h. Tailpipe i. Top Hat Washer j. Drain Off Pole k. Washer l. Retaining Nut m.
  • Page 7 Lift Rod Drain Dimensions...
  • Page 8 Step 1: Remove mounting hardware Remove mounting nut (C) and putty plate (B) from threaded mounting pipe Step 2: Install faucet Apply a small amount of putty to groove along bottom outer edge of putty plate (B). Secure putty plate to faucet. Install faucet through holes in sink or countertop Installer Tip: Make sure hole...
  • Page 9 Step 3: Secure faucet Tighten mounting nuts (C) onto threaded mounting pipe from underneath the countertop or sink (HAND-TIGHTEN ONLY) Step 4: Connect waterlines to main valve Thread hot & cold waterlines (not included with faucet) to threaded mounting pipe. (A. Hot Side: Left B.
  • Page 10: Step 5: Install Drain

    Step 5: Install Drain • Remove waste stopper (a) from drain (b). Remove tail pipe (h), mounting nut (f ), plastic washer (e), and concave washer (d) from drain (b). Remove retaining nut (l) and washer (k) from tailpipe Installer tip: Leave top hat washer (g) in tailpipe (h) •...
  • Page 11 Step 5: Install Drain 11 12 • Insert waste stopper (a) into drain (b). Make sure slot at end of waste stopper (a) is facing the rear of the sink • Insert lift pole rod (p) through the hole in the back of the faucet body. Loosen thumb screw (o) and attach extender rod (m) to lift pole rod (p).
  • Page 12 Step 5: Install Drain • Place one end of clip (n) on drain off pole (j). Insert drain off pole (j) through desired hole of extender rod (m). Place other end of clip (n) on drain off pole (j) Installer Tip: You may adjust the extender rod (m) to a desired height Step 6: Flush Faucet...
  • Page 13 Replacement Part List - FUS-13102 1. Metal Handle – HOT 2. Cartridge – HOT 3. Aerator Washer 4. Aerator 5. Aerator Cover 6. Metal Handle – COLD 7. Cover Button 8. Set Screw 9. Decorative Ring 10. Cartridge – COLD 11.
  • Page 14 Replacement Part List - Lift Rod Drain 1. Waste Stopper 2. Drain 3. Rubber Washer 4. Concave Washer 5. Plastic Washer 6. Mounting Nut 7. Tailpipe Washer 8. Tailpipe 9. Top Hat Washer 10. Drain Off Pole 11. Washer 12. Retaining Nut 13.
  • Page 15: Troubleshooting

    Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under handles Hot or cold cartridge (2 Remove cover button...
  • Page 16: Care And Maintenance

    Push Left Open Hot Water Care & Maintenance *To keep the product clean & shining, follow the steps below: Rinse with clean water & dry with a soft cloth Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary *This installation manual is subject to change without further notice.
  • Page 17 If Kraus is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Kraus may elect to refund the purchase price in exchange for the return of the product.
  • Page 18 NON-APPLICABILITY OF THIS WARRANTY By the purchase and use of our products, you agree that Kraus is not liable for incidental, consequential or special damages associated with the return, replacement, installation or use of your product. This includes freight costs,...
  • Page 19 www.kraususa.com...
  • Page 20 www.kraususa.com...
