Use With: OM−04402
PUBLICATION NUMBER PL−04914−01
MR−04835
August 10, 1998
TM

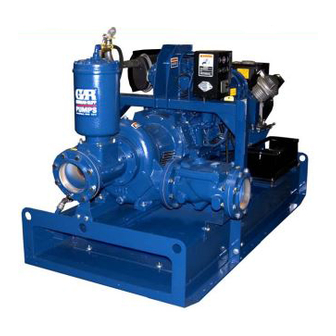

PRIME-AIRE
SERIES
PUMP MODEL
PA4B60−4045T
THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO
D
GORMAN-RUPP OF CANADA LIMITED
ST. THOMAS, ONTARIO, CANADA
Printed in U.S.A.
E
Copyright by the Gorman-Rupp Company

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRIME-AIRE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GORMAN-RUPP PUMPS PRIME-AIRE Series

Summary of Contents for GORMAN-RUPP PUMPS PRIME-AIRE Series

  • Page 1 Use With: OM−04402 PUBLICATION NUMBER PL−04914−01 MR−04835 August 10, 1998 PRIME-AIRE SERIES PUMP MODEL PA4B60−4045T THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A. Copyright by the Gorman-Rupp Company...
  • Page 2 The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Recording Model And Serial Numbers

    PL−04914 PA SERIES PUMP PERFORMANCE CURVE − SECTION A RECORDING MODEL AND PERFORMANCE CURVE SERIAL NUMBERS The performance curve on the following page is Please record the pump model and serial number based on 70_ F (21_ C) clear water at sea level, in the spaces provided below and in the separate corrected to 0.80 specific gravity, with minimum Installation/Operation Manual accompanying your...
  • Page 4 PA SERIES PUMP PL−04914 Performance Curve − Model PA4B60−4045T PAGE A − 2 PART LIST MANUAL...

  • Page 5: This Page Intentionally Blank

    PL−04914 PA SERIES PUMP This Page Intentionally Blank PARTS LIST MANUAL PAGE A − 3...
  • Page 6 ACDE PA4B60−4045T PARTS PAGE S/N 1149679 Up PUMP ISSUE 1 THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA 08/10/98 Printed in U.S.A. 1 of 11 Copyright by the Gorman-Rupp Company Page 64.4 B5...

  • Page 7: Parts List

    PA4B60−4045T ACDE S/N 1149679 Up PUMP ISSUE 1 PARTS LIST Pump Model PA4B60−4045T If your pump serial number is followed by an N", your pump is NOT a standard production model. Contact the Gorman-Rupp Company to verify part numbers. ITEM PART NAME PART MAT’L...
  • Page 8 ACDE PA4B60−4045T S/N 1149679 Up PUMP ISSUE 1 THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA 08/10/98 Printed in U.S.A. 3 of 11 Copyright by the Gorman-Rupp Company Page 64.4 B5...
  • Page 9 PA4B60−4045T ACDE S/N 1149679 Up PUMP ISSUE 1 PARTS LIST PA4B60−4045T Pump Assembly ITEM PART MAT’L PART NAME NUMBER CODE PUMP END ASSY 64B60−(SAE4/10) −−− PUMP CASING GSKT 1679G 18000 STUD C1211 15991 HEX NUT 15991 LOCKWASHER 15991 CHECK VALVE ASSY 26642−124 −−−...
  • Page 10 ACDE PA4B60−4045T S/N 1149679 Up PUMP ISSUE 1 THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA 08/10/98 Printed in U.S.A. 5 of 11 Copyright by the Gorman-Rupp Company Page 64.4 B5...
  • Page 11 PA4B60−4045T ACDE S/N 1149679 Up PUMP ISSUE 1 PARTS LIST 64B60−(SAE4/10) Pump End Assembly ITEM PART NAME PART MAT’L ITEM PART NAME PART MAT’L NUMBER CODE NUMBER CODE PUMP CASING 38218−017 10000 OIL SEAL 25227−773 −−− STUD C1009 15991 IMPELLER ASSY 38628−547 10010 HEX NUT...
  • Page 12 ACDE PA4B60−4045T S/N 1149679 Up PUMP ISSUE 1 VALVE DETAIL SEE VALVE DETAIL THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA 08/10/98 Printed in U.S.A. 7 of 11 Copyright by the Gorman-Rupp Company Page 64.4 B5...
  • Page 13 PA4B60−4045T ACDE S/N 1149679 Up PUMP ISSUE 1 PARTS LIST 46112−703 Peeler Type Priming Valve ITEM PART NAME PART MAT’L ITEM PART NAME PART MAT’L NUMBER CODE NUMBER CODE PRIMING CHAMBER LID 38346−613 13000 FLAT HD CAPSCREW F#10−03 17000 PEELER VALVE NECK 38349−410 10000 LOCKWASHER...
  • Page 14 ACDE PA4B60−4045T S/N 1149679 Up PUMP ISSUE 1 THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA 08/10/98 Printed in U.S.A. 9 of 11 Copyright by the Gorman-Rupp Company Page 64.4 B5...
  • Page 15 PA4B60−4045T ACDE S/N 1149679 Up PUMP ISSUE 1 PARTS LIST 46181−903 Air Compressor Assembly ITEM PART MAT’L PART NAME NUMBER CODE AIR COMPRESSOR MOUNTING PLATE 41881−584 −−− MACHINE SCREW X#10−02 15991 HEX NUT D#10 15991 LOCKWASHER J#10 15991 FLAT WASHER K#10 15991 AIR COMPRESSOR COVER...
  • Page 16 ACDE PA4B60−4045T S/N 1149679 Up PUMP ISSUE 1 44162−119 Drive Assembly ITEM PART MAT’L PART NAME NUMBER CODE COUPLING KIT 48112−001 −−− −BUSHING 24131−345 −−− −COUPLING ASSY 44165−011 −−− −LOCKWASHER 21171−536 −−− −SOCKET HD CAPSCREW B0606 1/2 15991 HEX HD CAPSCREW B0605 15991 LOCKWASHER...
  • Page 17 For U.S. and International Warranty Information, Please Visit www.grpumps.com/warranty or call: U.S.: 419−755−1280 International: +1−419−755−1352 For Canadian Warranty Information, Please Visit www.grcanada.com/warranty or call: 519−631−2870 THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA...
