ACDEU
OM−06081−OE01
November 20, 2007
INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL
WITH PARTS LIST

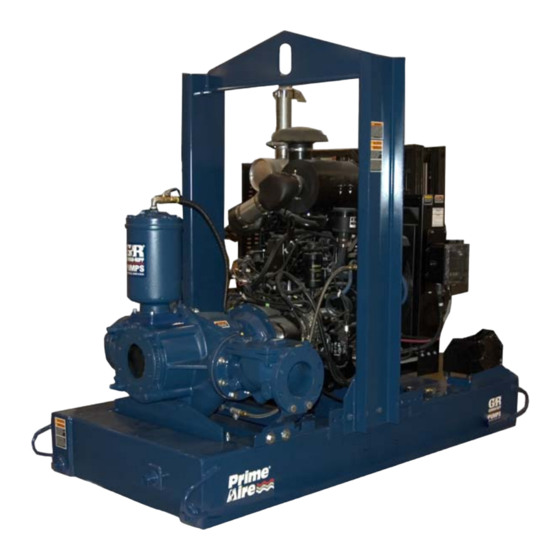

PA SERIES PUMP
MODEL
PA6C60−4045H
THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO
D
GORMAN-RUPP OF CANADA LIMITED
ST. THOMAS, ONTARIO, CANADA
Printed in U.S.A
www.gormanrupp.com.
E
2007 The Gorman-Rupp Company
