Use With: OM−04402

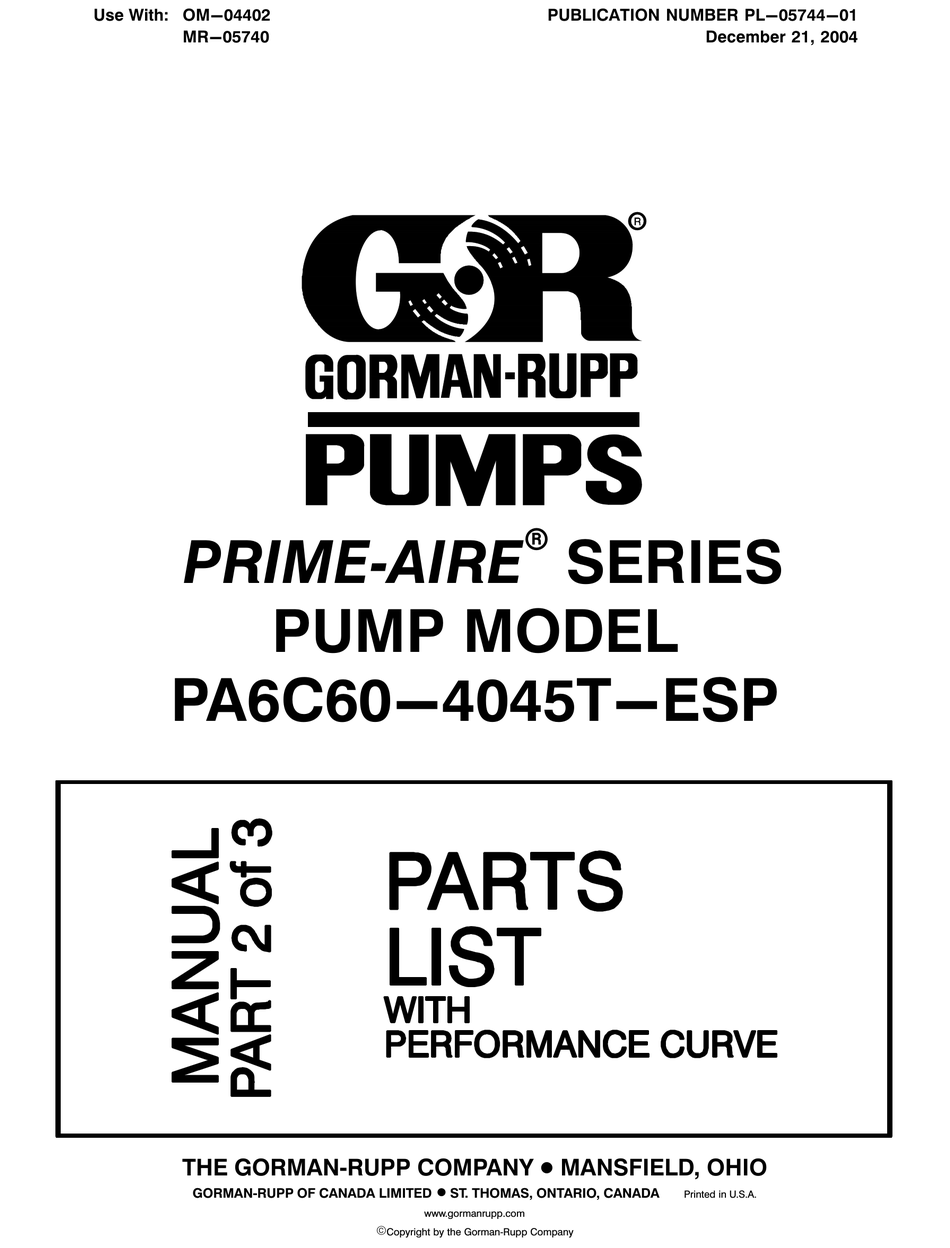

PUBLICATION NUMBER PL−05744−01
MR−05740
December 21, 2004
r

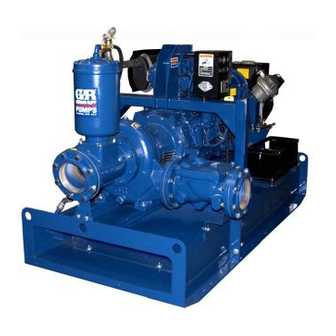

PRIME-AIRE
SERIES
PUMP MODEL
PA6C60−4045T−ESP
THE GORMAN-RUPP COMPANY D MANSFIELD, OHIO
D
GORMAN-RUPP OF CANADA LIMITED
ST. THOMAS, ONTARIO, CANADA
Printed in U.S.A.
www.gormanrupp.com
E
Copyright by the Gorman-Rupp Company
