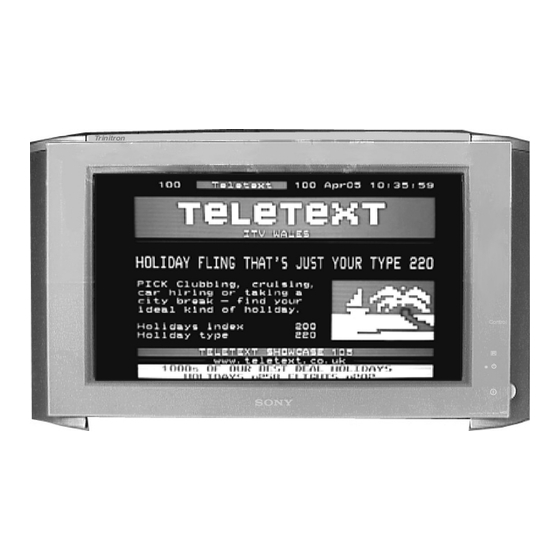

- Page 1 4-206-381-62 420638162 Trinitron Digital TV Operating Instructions KD-32NX100U © 2001 by Sony Corporation Printed in UK...
-
Page 2: Notice For Customers In The United Kingdom
Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service centre. How to replace the Fuse Open the fuse compartment with a flat blade screwdriver, and replace the fuse. - Page 3 Moving the TV If you wish to move the TV after it has been connected to the stand, please observe the following precautions: • Never attempt to lift the TV and the stand together. • Before lifting the TV from the stand, you must disconnect the securing strap on the rear of the TV (see illustration below).
- Page 4 This set is to operate on a 220-240V AC supply only. Take care not to connect too many appliances to the same power socket as this could result in fire or electric shock. Do not open the cabinet and the rear cover of the TV.
-
Page 5: Table Of Contents
Thank you for choosing this Sony television. Please take time to read this instruction manual as it will help you to understand all the features available to you. Getting started Checking the accessories supplied ... 4 Inserting batteries into the remote control handset ... 4 Connecting an aerial and a VCR ... -
Page 6: Getting Started
Follow steps 1 - 6 to install your TV and view the TV programmes 1. Checking the accessories supplied Remote control handset 2. Inserting batteries into the remote control handset Place a coin in the slot at the bottom of the remote control. Turn anti clockwise to release the battery compartment. -
Page 7: Connecting An Aerial And A Vcr
3. Connecting an aerial and a VCR Connecting an aerial only RF loopthrough cable (supplied) Connecting an aerial and a VCR Scart lead (not supplied) 4. Switching on the TV Connect your existing aerial lead to the Digital socket marked TV as shown. -
Page 8: Automatically Tuning The Tv
Getting started 5. Automatically tuning the TV When you switch on this TV for the first time, the Language/Country menu appears on screen with the word ‘English’ highlighted. Press the V or v buttons on the remote control to choose the language you require then press the OK button to confirm. -
Page 9: Overview Of The Tv Buttons
Overview of the TV buttons The TV buttons can be found on the right side of the TV. An expanded view is shown below. Programme Up or Down buttons Press to move to the next or preceding channel. Volume control buttons Press to increase or decrease the volume. -
Page 10: Overview Of The Remote Control Buttons
GUIDE button Has no function on this model. MODE button This remote can operate not only Sony DVDs and VCRs, but also those made by other manufacturers . Press this button to select the type of equipment you want to control. A green light appears momentarily to indicate the mode selected. -
Page 11: Using The Text Services
Using a Digital text service Most digital TV channels broadcast information via their text service. This digital service includes high quality text and graphics along with advanced navigation options. Additionally, this TV has access to dedicated text channels transmitted by the broadcasting authorities. The appearance, content and navigation methods of all Digital text services are decided by the broadcaster. -
Page 12: Using A Conventional Text Service
Using the text services Using a conventional text service Most analogue TV channels broadcast a text service. The index page (usually page 100) provides information on how to use the service. Please ensure you are receiving a strong signal or some text errors may occur. -
Page 13: Using The Text Menu
Using a conventional text service Using the text menu You can access more features by using the text menu: Press the With the text display on screen, press the MENU button to display the ‘text’ menu. Press the V or v button to highlight your desired feature, then press the b button to select. Press the MENU button to remove the text menu from the screen. -
Page 14: Changing The Screen Format Manually
Changing the screen format manually You can change the screen format manually to suit the broadcast you are watching. By pressing the button on the remote control you can choose from the 5 formats listed below. Wide- Zoom- 14:9- 4:3- Smart- For 16:9 broadcasts. -
Page 15: Digital Features
The Channel Index menu The Channel Index menu provides you with a quick and easy way to:- a) View a complete list of the programmes available for selection, b) Obtain a preview of the programmes contained in the list, c) Search for a programme quickly by selecting from different categories of programmes, d) Store programmes into a list of favourites. -
Page 16: Favourite Programmes
Channel Index menu The Category pop-up list The Category pop-up list allows you to search for programmes quickly by dividing the channels into different categories. For example, if you select ‘News’ from the Category pop-up list, then only programmes related to News will be shown in the Channel Index menu. -
Page 17: The Epg Menu
The EPG menu The EPG menu (Electronic Programme Guide) provides you with a quick and easy way to:- a) View a complete list of the programmes available. b) Obtain a preview of the programmes currently being broadcast. Create a list relating to a category of programme, e.g. Sports or Movies. d) Record programmes. -
Page 18: To Select A Programme For Recording Or Timed Display
Digital features The EPG menu To select a programme for recording or timed display 1. Whilst the EPG menu is on screen, press the V, v, B or b buttons to highlight a future programme in the EPG menu that you wish to record, then press the OK button. The Timer screen appears. 2. -
Page 19: The Digital Info Display
The Digital Info display This display gives you information both on the current programme being shown and on the next scheduled programme. When first selected, the Info display gives a brief description of the current programme being transmitted, its channel number and the start and end time. The title of the next programme and its start and end time is also shown in a programme box on the right of the current programmes information. -
Page 20: The Main Menu
Digital features The Main menu The Main menu contains several features that allow you to customise the Digital side of the TV. The Main menu is only available when watching Digital channels. To check if you are in Digital mode, press the button on the remote control. -
Page 21: Parental Control
The Main menu Parental Control This feature allows you to set an age limit for viewing programmes. If any films or programmes classed above the age limit you have set are broadcast, you will be requested to enter a PIN code before viewing is allowed. -
Page 22: Manual Tuning
Digital features The Main menu Manual Tuning This feature allows you to select a programme number from the displayed list and change the digital services of that programme. 1. Press the display the Main menu. 2. Press the V or v button to highlight ‘Detail Set-up’ then press the OK button to display the Detail Set-up menu. -
Page 23: Software Download
The Main menu Software Download Periodically Sony will issue updates for the software that controls your TV. This feature will allow you to automatically receive updates through your existing aerial. 1. Press the display the Main menu. 2. Press the V or v button to highlight ‘Detail Set-up’ then press the OK button to display the Detail Set-up menu. -
Page 24: Cam Setup
The Main menu CAM Setup This feature allows you to access a pay per view service once you have obtained a Conditional Access Module (CAM) and a viewing card. Please contact your nearest pay-per-view supplier for details. 1. Switch off the TV and unplug from the mains. 2. -
Page 25: Tv Menu System
The following pages explain the TV set up menus and their operation. Although most of these menus can be accessed whilst watching digital programmes, we recommend you switch to analogue mode to view all the menus. To check which mode you are in, press the button on the remote control. -
Page 26: Adjusting The Sound
The ‘BBE High definition Sound System’ is manufactured by Sony Corporation under licence from BBE Sound, inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word ‘BBE’ and the BBE symbol are trademarks of BBE Sound, Inc. -
Page 27: Using The Features Menu
Using the Features menu 1. Press the MENU button to display the main menu. 2. Press the v button to highlight the 3. Press the V or v button to select the option you wish to adjust, then press the b button to confirm. The table below explains the function of each option and which buttons to press for adjustment. -
Page 28: Naming A Programme
TV menu system Naming a programme With this feature you can name a programme using up to 5 characters (letters or numbers). 1. Press the MENU button to display the main menu. 2. Press the v button to highlight the 3. -
Page 29: Using The Further Programme Preset Menu
Using the Further Programme Preset menu The Further Programme Preset menu allows you to: a) set the volume level of an individual programme to be different from the rest, b) fine tune a programme to improve its reception or c) preset a scrambled signal applied to one of the AV sockets on the rear of the TV (e.g. -
Page 30: Adjusting The Picture Rotation
TV menu system Adjusting the picture rotation Due to the Earth’s magnetic field the picture can sometimes slant. This feature enables you to cancel out any such effect. 1. Press the MENU button to display the main menu. 2. Press the v button to highlight the 3. -
Page 31: Adjusting The Picture Geometry For An Rgb Source
Adjusting the picture geometry for an RGB source When viewing signals from an RGB source such as a Sony Playstation, it may be necessary to adjust the picture geometry. 1. Press the 2. Press the MENU button to display the main menu. -
Page 32: Manually Tuning Analogue Signals
TV menu system Manually tuning analogue signals With this feature you can manually add analogue programmes to your TV. Manual tuning also allows you to select inputs from the scart sockets (VCRs etc) so that they can be viewed on the programme number of your choice. -
Page 33: Additional Information
Connecting additional equipment The following illustration shows how to connect a wide range of equipment to the rear of your TV. Please note that the connecting cables are not supplied. 1. After you have connected your equipment, press the correct symbol for your equipment appears on the TV screen (see table below). On screen symbol Note: to record digital programmes you must connect your VCR to the Scart socket C using a scart lead. -
Page 34: Connecting Headphones
Additional information Connecting additional equipment You can also connect equipment such as camcorders to the side panel of this TV as shown in the following illustration. 8mm/Hi8/ DVC camcorder 1. After you have connected your equipment, press the correct symbol for your equipment appears on the TV screen (see table below). On screen symbol 2. -
Page 35: Remote Control Configuration For Vcr/Dvd
Remote control configuration for VCR/DVD This remote control has been configured to operate not only Sony DVDs and VCRs but also those made by other manufacturers. To operate other makes of DVD and VCR using this remote control, complete the following procedure: 1. -
Page 36: Specifications
Additional information Specifications TV system I/ DVB-T Colour system PAL, SECAM NTSC 3.58/4.43 (only Video in) MPEG-2 MP@ML UHF: B21-B69 Picture tube 82cm (32inches) FD Trinitron WIDE 102° deflection Dimensions 982mm x 564mm x 586mm (W x H x D) Weight Approx. -
Page 37: Troubleshooting
Wrong external mode selected. Colour level setting. • If you continue to have these problems, have your TV serviced by qualified personnel or you can contact the Sony UK Digital HelpLine on 0870 600 1717. • NEVER open the casing yourself. Cause •... -
Page 38: Removing And Cleaning The Glass Panel
TV. Re-fitting the glass panel NEVER attempt to re-fit the glass panel on your own - for safety reasons Sony recommends that two people carry out the following procedure at all times. Lift the glass, and move toward the TV. - Page 40 How to carry this TV • Sony strongly recommends that this TV should not be lifted by less than two people. • Always assume the correct posture when lifting. • Standing at the side of the TV, place one hand under the glass panel on the front of the TV as shown.
