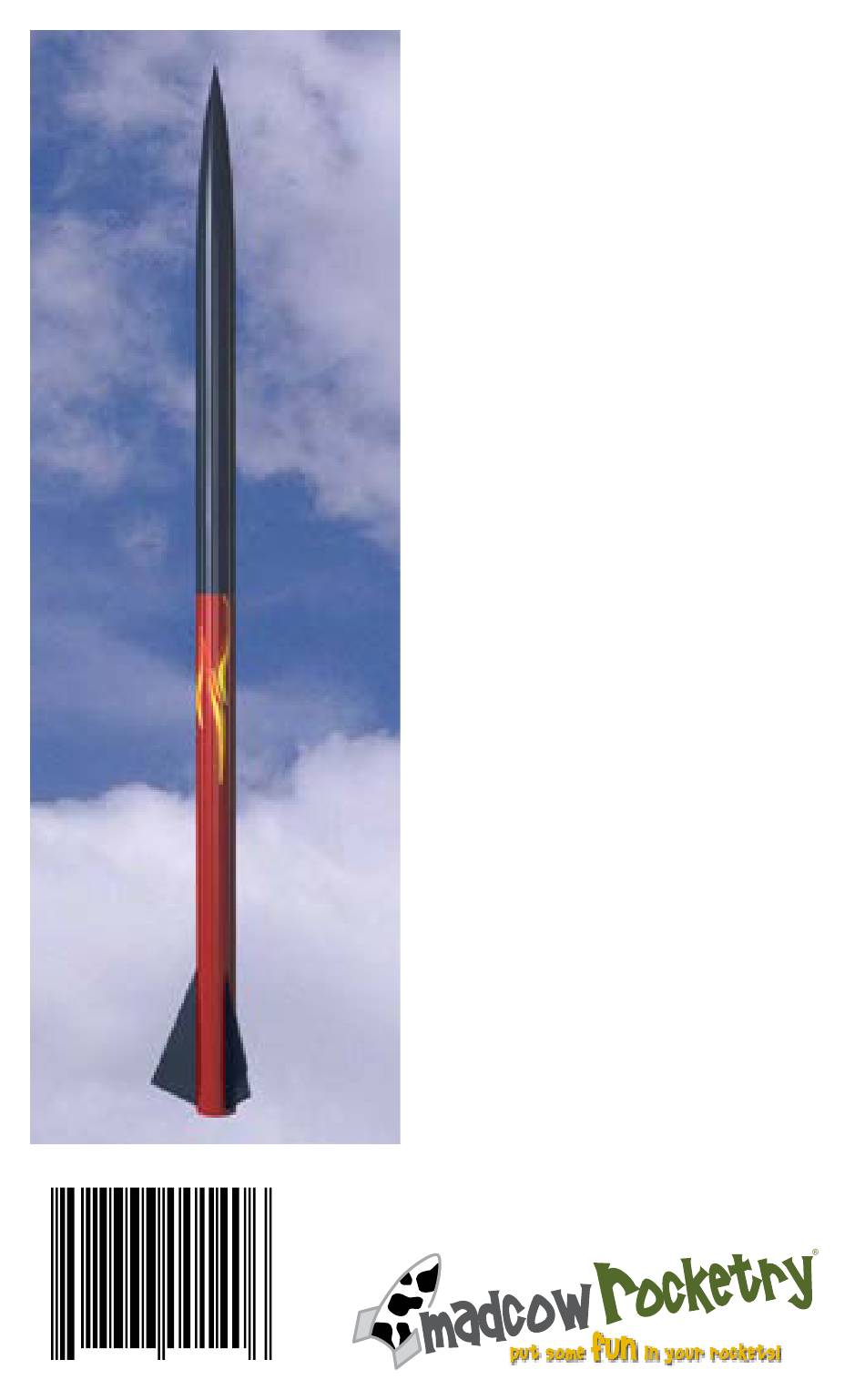

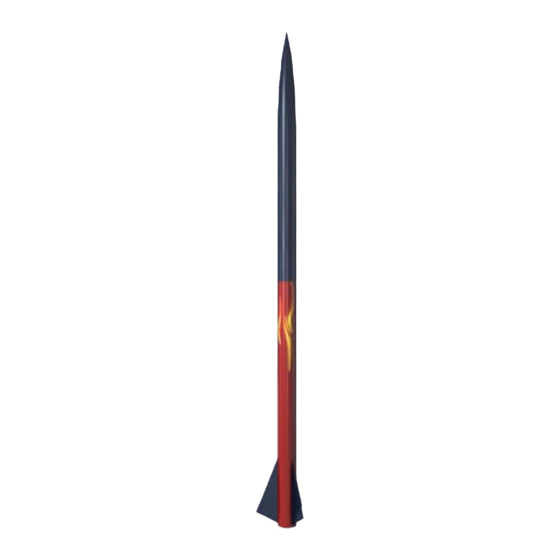

Madcow Rocketry Mini Dual Deploy Screech Quick Manual

Madcow Rocketry Mini Dual Deploy Screech Quick Manual

Advertisement

Quick Links

K-140
98666 00140
8
mini
Specifications:
Parts List
Optional Recovery System
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint, Rubbing Alcohol for cleaning.
6
dual deploy
Screech
FIBERGLASS KIT
Length: 42.5"
Diameter 1.6"
Weight: 18oz
Recovery: 18"/10" Nylon Chutes
Motor Mount: 29m
Fins: 3 - 1/16" G10
CP: 32.5" from nose tip
1.
(1) Fiberglass nose cone
2.
(1) Fiberglass nose cone coupler
3.
(1) G10 nose cone bulk plate
4.
(1) Pre-slotted body tube (22")
5.
(1) Payload tube (12")
6.
(2) G10 centering rings
7.
(1) 29mm (8")
8.
(3) G10 fins
9.
(2) Kevlar/Nylon shock cord
10. (2) Launch Lugs
11. (1) Eyebolt, Nut and Washer
12. (1) Fiberglass Removable A-Bay
1.
(2) 6"x6" flameproof chute protector
2.
(1) 18" Nylon chute (Main)
3.
(1) 10" Nylon chute (Drogue)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini Dual Deploy Screech and is the answer not in the manual?

Questions and answers

Summary of Contents for Madcow Rocketry Mini Dual Deploy Screech

  • Page 1 mini dual deploy Screech ™ FIBERGLASS KIT Specifications: Length: 42.5” Diameter 1.6” Weight: 18oz Recovery: 18”/10” Nylon Chutes Motor Mount: 29m Fins: 3 - 1/16” G10 CP: 32.5” from nose tip Parts List (1) Fiberglass nose cone (1) Fiberglass nose cone coupler (1) G10 nose cone bulk plate (1) Pre-slotted body tube (22”) (1) Payload tube (12”)
  • Page 2 Spread some more epoxy on the inside of the nose cone leaving at least a 1/4” lip to apply a fillet. Next, apply a fillet of epoxy edge of the body tube before sliding the rear centering ring into the body tube. Continue around the bulkplate and nose cone shoulder joint. ©2015 MadCow Rocketry™ FG Screech™ Assembly FG Screech™ Assembly ©2015 MadCow Rocketry™...
  • Page 3 IMPORTANT: In no event shall Madcow Rocketry be liable for any direct, indirect, punitive, incidental, special consequential damages whatsoever arising out of or connected with the use or misuse of it’s products.
