K-3216
8
10440 03216
Specifications:
Parts List
Optional Recovery System
Required to complete: 5 minute epoxy,
120/220 sandpaper, masking tape, finishing
filler/paint, Rubbing Alcohol for cleaning.
1

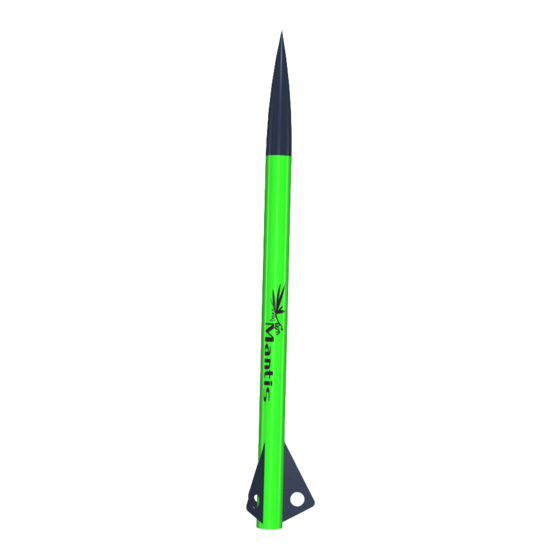

FIBERGLASS KIT
Length: 48"
Diameter 2.6"
Weight: 39oz
Recovery: 30"/14" Nylon Chutes
Motor Mount: 38mm
Fins: 3 - 1/16" G10
CP: 39" from nose tip
1.
(1) Fiberglass nose cone
2.
(1) G10 nose cone bulk plate
4.
(1) Pre-slotted body tube (21")
5.
(1) Payload tube (16")
5.
(2) G10 centering rings
6.
(1) 38mm (8") MMT
7.
(3) G10 fins
8.
(2) Eyebolts (4) nut, (1) washer*
9.
(2) Nylon shock cords
10. (2) Rail Buttons and Screws
11. (1) Fiberglass Removable A-Bay
12. (1) Vinyl Decal
1.
(2) 9"x9" flameproof chute protector
2.
(1) 30" Nylon chute (Main)
3.
(1) 14" Nylon chute (Drogue)
™
