INSTRUCTION MANUAL

30 ": EMPV-30GC37 EMPV-30GC38

36" : EMPV-36GC36

Distributed by:

Empava Appliances Inc.

Add:15253 Don Julian Rd, City of Industry, CA 91745 USA

www.empava.com

Tel: (888)682 8882

Email:support@empava.com

The instructions shall be marked with directions to the installer to leave them with

the appliance and to the consumer to retain them for future reference.

GAS COOKTOP

Appliance Class: 3

Empava Item #:

Table of Contents

Need help?

Do you have a question about the EMPV-30GC37 and is the answer not in the manual?

Questions and answers

Summary of Contents for Empava EMPV-30GC37

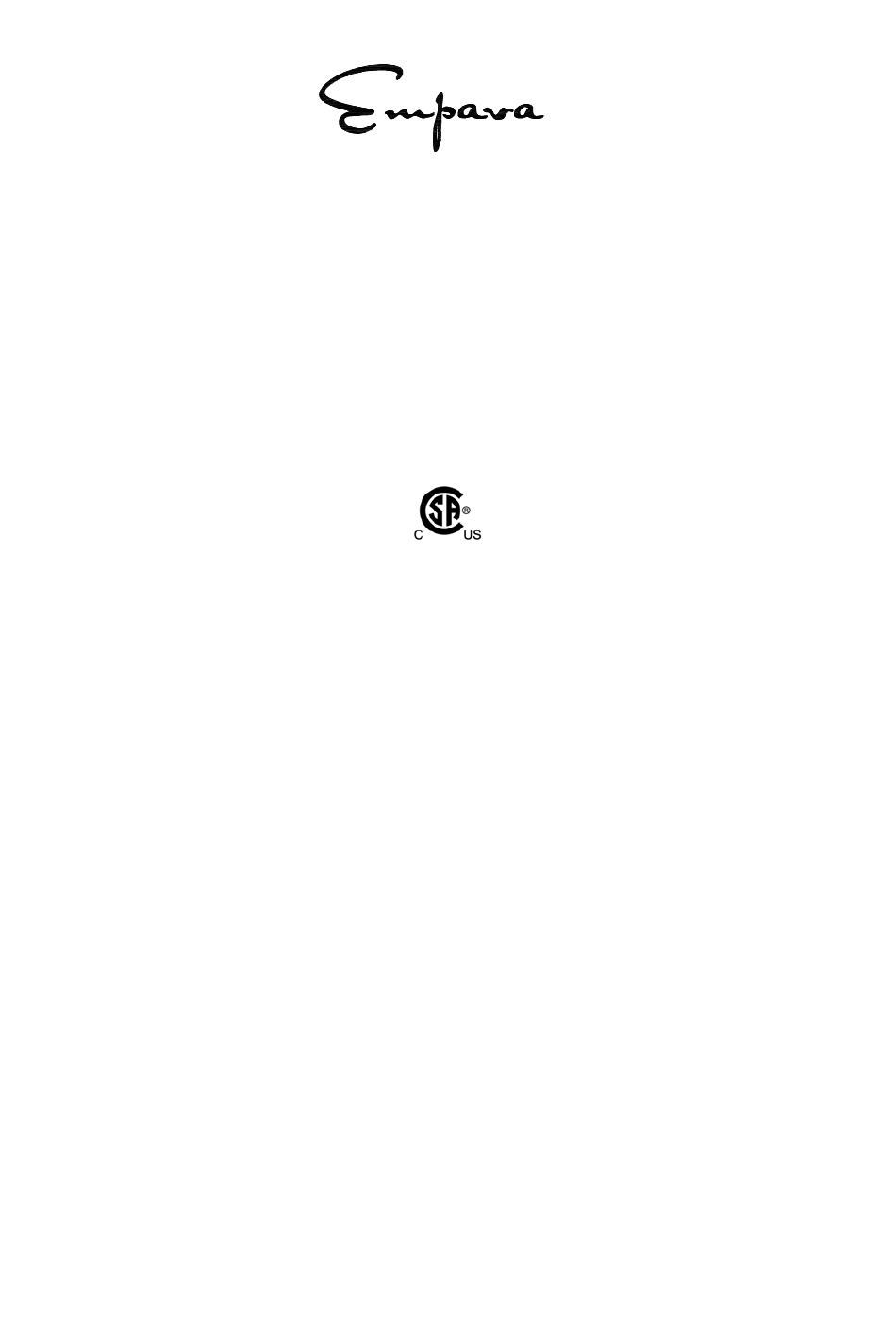

Page 1 INSTRUCTION MANUAL GAS COOKTOP Appliance Class: 3 Empava Item #: 30 ": EMPV-30GC37 EMPV-30GC38 36" : EMPV-36GC36 Distributed by: Empava Appliances Inc. Add:15253 Don Julian Rd, City of Industry, CA 91745 USA www.empava.com Tel: (888)682 8882 Email:support@empava.com The instructions shall be marked with directions to the installer to leave them with...
Page 2 WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 3: Table Of Contents
Contents  Cooktop Description  Important Information  Operation  Maintenance and Cleaning  Troubleshooting  Instructions for the Installer  Important safety requirements  Installation This appliance shall be installed in accordance with the regulations in force and only used in a well- ventilated space.
Page 4: Cooktop Description

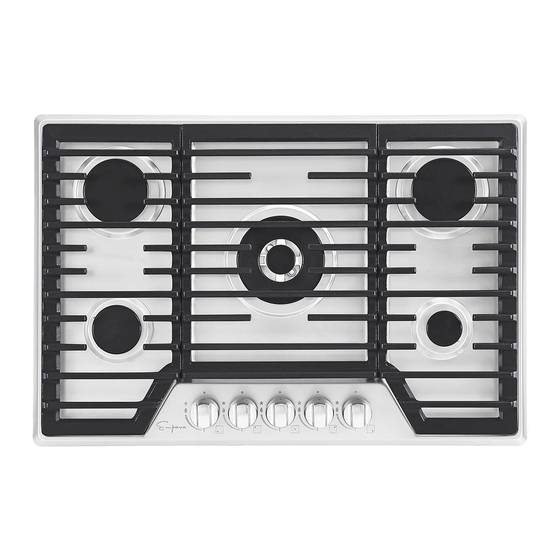

Cooktop Description Operating Instructions: Knob 1 is for semi-rapid burner C EMPV-30GC37 Knob 2 is for rapid burner B Knob 3 is for wok burner A Knob 4 is for rapid burner D Knob 5 is for auxiliary burner E Figure 1 1.
Page 5: Important Information
Important Information Read the instructions before installing or using this appliance. Children should be supervised to ensure that they do not play with the appliance. These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.
Page 6 When Use  This gas cooktop is intended for domestic cooking only. It is not designed for commercial or industrial purposes.  When in use a gas cooking appliance will produce heat and moisture in the room in which it has been installed.
Page 7: Operation
Operation Lighting  Simply press the knob in, turn anticlockwise to ignition position (star icon).  Press the ignition device and hold the knob till the burner is ignited  Before releasing knob, ensure a flame is established.  If the burner fails to ignite, put into off position and try again. If in case of a power failure or failure of the ignition, a match or lighting devise can be used.
Page 8: Maintenance And Cleaning
Pan dimensions Wok burner Rapid burner Semi rapid burner Auxiliary burner inches (mm) 12000Btu/hr 10200Btu/hr 6000Btu/hr 3400Btu/hr ≤9 (229) ≤9 (229) ≤7 (178) ≤7 (178) Outside diameter - top Projected outside ≤8½(216) ≤8½(216) ≤6½(165) ≤6½(165) diameter - bottom WARNING: As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering.
Page 9 Control Panel Sign ● = gas valve is shut off Sign =largest flame Sign =smallest flame Sign = electric discharge for ignition The Burners The burner caps and crowns can be removed for cleaning. Wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner.
Page 10: Troubleshooting
Instructions for the Installer Overall dimensions Model No. Width Depth EMPV-30GC37,EMPV-30GC38 29.92in 20.08in EMPV-36GC36 36.02in 20.67in Cut out dimensions Model No. Width Depth EMPV-30GC37,EMPV-30GC38 28.62in 18.90 in EMPV-36GC36 33.07in 18.90 in For model: EMPV-30GC37, EMPV-30GC38 For model: EMPV-36GC36...
Page 11: Important Safety Requirements
Technical Data Burner configuration Nozzles Dia. (mm) Btu/hr Nozzles Dia. (mm) Btu/hr Wok burner 2.18 18000 1.22 18000 Rapid burner 1.56 12000 1.01 12000 Semi rapid burner 1.42 9500 0.88 9500 Auxiliary burner 1.11 6000 0.72 6000 Different models have different total heat input, please refer to page 3. Gas Type and working pressure: NG gas pressure at 4.0 in w.c.
Page 12 Figure 6 WARNING: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use. Keep natural ventilation holes open or install a mechanical ventilation device. Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
Page 13 Figure 7 When you need to change the gas cooktop, you must first close the air supply valve and the cooktop valve, unplug the plug of models with AC power supply, only after that you can remove the connector hose or threaded connector and then move the gas cooktop. Warn of the potential hazards associated with storage cabinet areas above appliances.
Page 14 1) Air supply valve and cooktop valve need to be closed, unplug the power plug for AC model. 2) When the gas pressure regulator is in NG state and need to be converted to LPG state, counterclockwise unscrew the end cap under the gas pressure regulator, and then counterclockwise unscrew the marked NG threaded rod, reverse the threaded rod, turn the LP arrow upwards and tighten it to the screw cap (see Figure 8), then install the cap back to the gas pressure regulator.
Page 15: Installation
WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
Page 16 Gas Connection and check End of fitting with 1/2 BSP male thread(See Figure 11) Figure 11 The cooktop valve is in the closed state, open the air supply valve, coated the connector with moderate amounts of soapy water, if there is air bubbles that it means there is leakage, tighten the connector and test again.
Page 17 Circuit Diagram Figure 12(for the appliance with five burners)
Page 18 Simply fill in the fields below and print form. Send Completed Form Customer Service:(888)-682-8882 Empava Appliances Inc. Warranty/ Registration Dept. 15253 Don Julian Rd City of Industry,CA,91745 WARRANTY CARD PLEASE READ AGREEMENT BEFORE SIGNING Click Here Keep this copy for yourself.
