R&S RTM Digital Oscilloscope
Digital Oscilloscope
These Release Notes describe the following models and options of the R&S
Oscilloscope:
R&S
R&S
New Features of V4.600:
Release Notes 1305.1004.00 - 11
Release Notes
Revision: 11
R&S
Firmware Release 4.600
®
RTM 1052 Digital Oscilloscope, order no. 1305.0008.52
®
RTM 1054 Digital Oscilloscope, order no. 1305.0008.54
New automatic measurement types "Trigger B Frequency" and "Trigger B
Period"
Waveform arithmetic average, smooth and filter in XY mode
Input coupling to GND possible
Device settings are compatible for higher firmware versions
New remote commands for data export of waveforms in 8 and 16 bit integer
format
RTM
®
Digital
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rohde & Schwarz R&S RTM 1052
Summary of Contents for Rohde & Schwarz R&S RTM 1052

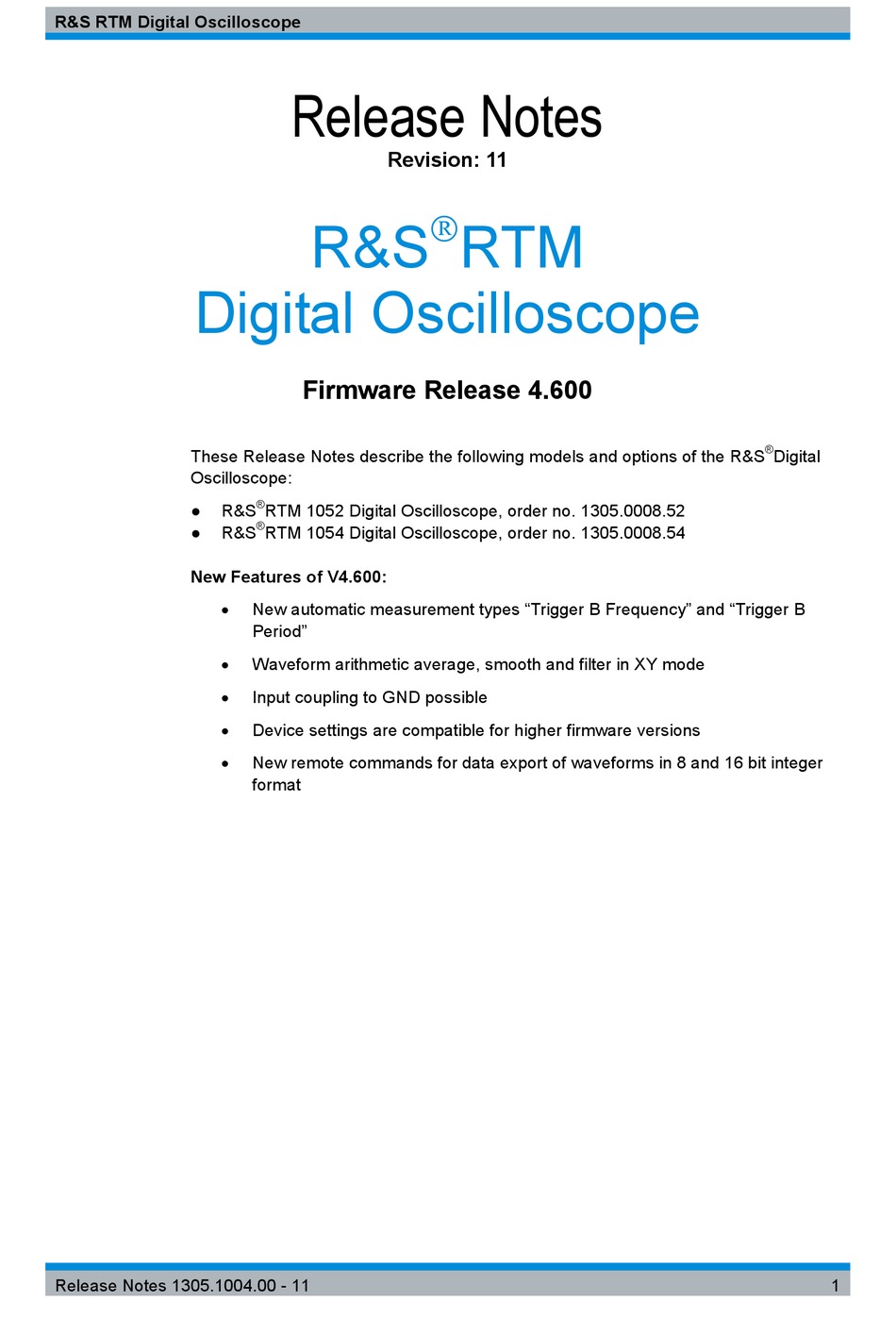

- Page 1 R&S RTM Digital Oscilloscope Release Notes Revision: 11 R&S Digital Oscilloscope Firmware Release 4.600 ® These Release Notes describe the following models and options of the R&S Digital Oscilloscope: ® R&S RTM 1052 Digital Oscilloscope, order no. 1305.0008.52 ® R&S RTM 1054 Digital Oscilloscope, order no.
- Page 2 R&S RTM Digital Oscilloscope Table of Contents Table of Contents 1 Revision History ................. 3 2 Installation Information ..............3 Firmware Update......................3 2.1.1 Preparing the Installation ....................3 2.1.2 Performing the Firmware Update on the Instrument .............4 2.1.3 Performing the Firmware Update on the Interface Board with USB and LAN....4 2.1.4 Performing the Firmware Update on the Interface Board with GPIB (RTM-B10 option)5 2.1.5...
- Page 3 R&S RTM Digital Oscilloscope Revision History 1 Revision History Date Rel. Note rev. Changes 08.07.2010 First version for RTM firmware V3.026 06.08.2010 Version for RTM firmware V3.031 08.10.2010 Version for RTM firmware V3.107 13.12.2010 Version for RTM firmware V3.201 17.02.2011 Version for RTM firmware V3.300 11.03.2011 Service Pack 1 for Firmware V3.300...
- Page 4 R&S RTM Digital Oscilloscope Installation Information B10 option) RTM_Release_Notes_V4.600.pdf This document Extract these files from the archive to a memory stick. 2.1.2 Performing the Firmware Update on the Instrument The firmware update process is performed by the following steps: 1. Insert the memory stick into the USB port of the oscilloscope and push the key Setup.
- Page 5 R&S RTM Digital Oscilloscope Installation Information Please make sure, that there is no interrupt at the main power during the update process. Otherwise this can be make the instrument unusable. 2.1.4 Performing the Firmware Update on the Interface Board with GPIB (RTM-B10 option) The following steps are only necessary, if a RTM-B10 option is available.
- Page 6 R&S RTM Digital Oscilloscope New Functions 3 New Functions The following table lists the new functions and indicates the version in which the new function was introduced: Version Function V4.600 New automatic measurement types “Trigger B Frequency” and “Trigger B Period” V4.600 Waveform arithmetic average, smooth and filter in XY mode V4.600...
- Page 7 R&S RTM Digital Oscilloscope Modifications to the Documentation Version Function 7 Modifications to the Documentation The new and modified functions mentioned in these release notes are already documented. Except the below mentioned last minute changes you can find the description in the online help or in the manual. The manual can be downloaded from the internet under: http://www.rohde-schwarz.com.
- Page 8 R&S RTM Digital Oscilloscope Appendix: Contacting our Hotline Appendix: Contacting our Hotline Any questions or ideas concerning the instrument are welcome by our hotline: USA & Canada Monday to Friday (except US public holidays) 8:00 AM – 8:00 PM Eastern Standard Time (EST) Tel.
