FIC AN19E Manual

Hide thumbs Also See for AN19E:
Table of Contents

Advertisement

Quick Links

Download this manual
DOC No.: M02811
Rev.
: A0
Date
: 9, 2002
Part No. : 25-11659-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN19E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FIC AN19E

Summary of Contents for FIC AN19E

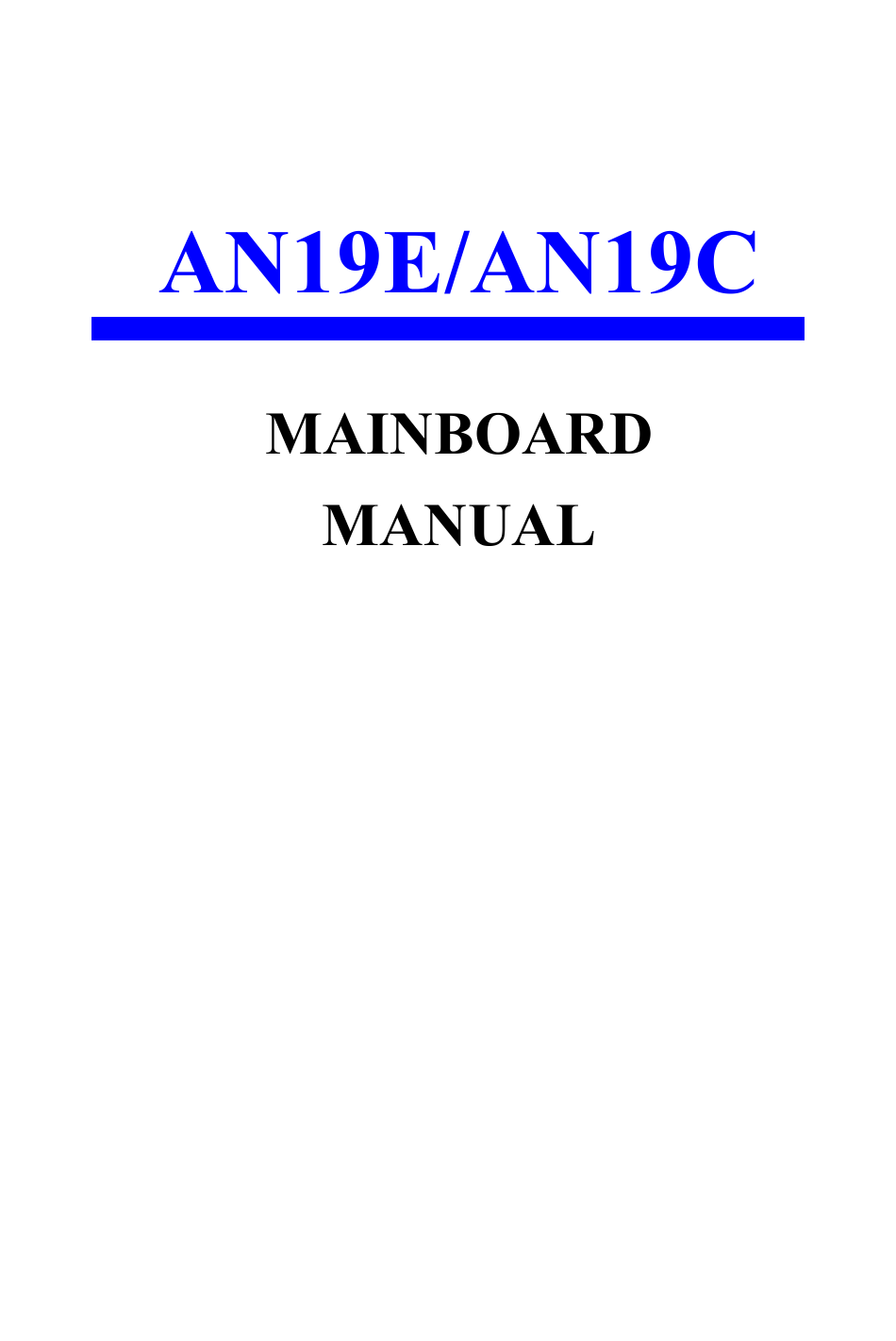

  • Page 1 DOC No.: M02811 Rev. : A0 Date : 9, 2002 Part No. : 25-11659-00...

  • Page 2: Handling Precautions

    Notice Handling Precautions Warning: 1. Static electricity may cause damage to the integrated circuits on the motherboard. Before handling any motherboard outside of its protective packaging, ensure that there is no static electric charge in your body. 2. There is a danger of explosion if the battery is incorrectly replaced.
  • Page 3 Overview Chapter 1 Overview Ô Ô Ô 1 - 1...

  • Page 4: Package Checklist

    AN19E/AN19C Mainboard Manual Package Checklist The mainboard This user manual FDD cable Drivers CD ATA-66/100 cable RAID ATA-100 cable (optional) USB cable (optional) I/O shield (optional) Game port cable (optional) SPD650 cable (optional) Serial ATA cable (optional) Bluetooth module (optional) IMPORTANT: AMD CPU HEAT SINK INSTALLATION Be ware finish heat sink install.
  • Page 5 Overview The AN19E/AN19C Mainboard 1 - 3...

  • Page 6: Main Features

    AN19E/AN19C Mainboard Manual Main Features Ô Ô Ô 1 - 4...
  • Page 7 Overview Ô 1 - 5...
  • Page 8 AN19E/AN19C Mainboard Manual 1 - 6...

  • Page 9: Installation

    Chapter 2 Installation The mainboard has several user-adjustable jumpers on the board that allow you to configure your system to suit your requirements. This chapter contains information on the various jumper settings on your mainboard. To set up your computer, you must complete the following steps: Step 1 - Set system jumpers Step 2 -...
  • Page 10 AN19E/AN19C Mainboard Manual Mainboard Layout...

  • Page 11: Easy Installation Procedure

    Installation Easy Installation Procedure The following must be completed before powering on your new system: CPU Installation Jumper Settings System Memory Configuration Device Connectors External Modem Ring-in Power ON and Keyboard Power ON Functions (KBPO) STR Function CPU Overheating Protection CPU Installation CPU Insertion: (use AMD Athlon as reference)
  • Page 12 AN19E/AN19C Mainboard Manual Step 3 Close the socket by lowering and locking the actuation lever. Thermal compound and qualified heatsink recommended by AMD are a must to avoid CPU overheat damage. For more information about installing your CPU, please refer to the AMD website article socket A AMD processor and Heatsink Installation Guide”...
  • Page 13 Installation System Memory Configuration Memory Layout The mainboard accommodates three PC1600/2100/2700 184-pin DIMMs (Dual In-line Memory Modules): • Supports up to 3.0GB of 200/266/333MHz DDR SDRAM • Supports up to 1GB per DIMM with maximum memory size up to 3GB (refer to Table 1) •...

  • Page 14: Dimm Module Installation

    AN19E/AN19C Mainboard Manual * DDR SDRAM supports 64, 128, 256, 512MB and 1GB DIMM modules using 512Mb technology. NOTES: • DO NOT MIX the unbuffered and registered DDR SDRAM on DIMM1, DIMM2 and DIMM 3 socket. • Using non-compliant memory with higher bus speeds (overclocking) may severely compromise the integrity of the system.
  • Page 15 Installation FAN3: PW Fan +12V WOL1: WOL (Wake On LAN) Connector Reserved for an NIC (Network Interface Card) to wake the system from power saving mode. +5V Standby IDE1/2: Ultra DMA-66/100/133 Primary/Secondary IDE Connector (Blue) IDE3/4: Ultra DMA-66/100/133 & RAID Primary/Secondary IDE Connector (Red) (Optional) Supported by the HPT372 chipset FDD1: Floppy Controller Connector (Black)
  • Page 16 AN19E/AN19C Mainboard Manual CD1: CD Audio_IN Connector CD_IN_Right CD_Reference CD_IN_Left AUX1: Auxiliary Line_IN Connector AUX_IN_Right AUX_IN_Left AUD2: Front Panel Audio Connector When headphones are plugged into the front panel headphone jack, the rear panel audio output connectors are disabled. If the front panel interface board is not connected to the front panel audio header, short pins 5 - 6 and 9 -10 on the front panel audio header.
  • Page 17 Installation SPDIF1: Sony/Philips Digital InterFace This connector is the digital link between the mainboard and your audio devices, such as CD player, sampler or DAT recorder. It allows the digital transmission of audio data in SPDIF format. SPDIF_IN SPDIF_OUT SATA1 / SATA2: (Optional ) 1.5Gbps serial ATA Connectors SATA1 and SATA2 enable you to connect two serial ATA devices that conform to the Serial ATA specification.
  • Page 18 AN19E/AN19C Mainboard Manual USB port header pin descriptions. PIN# Wire color Signal Name Comment Cable Power White -Data Data Green +Data Data Black Ground Cable Ground Black Ground Case Ground Black Ground Case Ground Black Ground Cable Ground Green +Data...
  • Page 19 Installation w Power On/Off This is connected to the power button on the case. Using the Soft-Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (push the button for 4 seconds before the system turns off). When the system is in 4 sec delay mode, suspend mode is enabled by pushing the button momentarily.
  • Page 20 AN19E/AN19C Mainboard Manual External Modem Ring Power ON and Keyboard Power ON Functions (KBPO) Modem Ring Power ON Function The I/O chipset provides the two serial ports with the External Modem Ring-in Power ON function. Once you connect an external modem to COM1 or COM2, the mainboard enables you to turn on the system through remote and host dial-up control.
  • Page 21 Installation STR (Suspend To RAM) Function This mainboard supports the STR (Suspend To RAM) power management scheme by maintaining the appropriate power states in the DDR SDRAM interface signals. The power source to the DDR SDRAM must be kept active during STR (ACPI S3). Advanced Configuration Power Interface (ACPI) provides many Energy Saving Features for operating systems that support Instant ON and QuickStart...
  • Page 22 AN19E/AN19C Mainboard Manual 2. To enable the STR function, click the START button and choose Shut Down. In the Shut Down Windows dialog box, select the Stand By option to enter STR mode. The following lists the differences between STR power saving mode and Green (or Suspend) mode: a.
  • Page 23 Installation Step1: Unplug in the ATX power core (or turn off ATX power supply switch). Step2: Please wait the beep to stop then plug in the ATX power core again (or turn on ATX power switch) to turn on your system. Note : The CPU Overheating Protection will function only when CPU has thermal diode design.
  • Page 24 AN19E/AN19C Mainboard Manual This Page Left Blank for Note 2-16...

  • Page 25: Bios Setup

    BIOS Setup Chapter 3 BIOS Setup The mainboard comes with the chip that Award BIOS that contains the ROM Setup information of your system. (This chip serves as an interface between the processor and the rest of the mainboard components.) This section ex- plains the information contained in the Setup program and tells you how to modify the settings according to your system configuration.

  • Page 26: Standard Cmos Setup

    AN19E/AN19C Mainboard Manual Standard CMOS Setup The Standard CMOS Setup screen is displayed above. Each item may have one or more option settings. The system BIOS automatically detects memory size, thus no changes are necessary. Use the arrow keys to highlight the item and then use PgUp or PgDn keys to select the value you want in each item.
  • Page 27 BIOS Setup Hard Disks This field records the specifications for all non-SCSI hard drives installed in the system. The onboard PCI IDE connectors provide Primary and Sec- ondary channels for connecting up to four IDE hard disks or other IDE devices.

  • Page 28: Advanced Bios Features

    AN19E/AN19C Mainboard Manual Advanced BIOS Features Virus Warning During and after system boot up, any attempt to write to the boot sector or partition table of the hard disk drive halts the system and an error message appears. You should then run an anti-virus program to locate the virus. Keep in mind that this feature protects only the boot sector, not the entire hard drive.
  • Page 29 BIOS Setup CPU Internal Cache This controls the status of the processor’s internal cache area. The default is Enabled. Options: Enabled, Disabled. External Cache This controls the status of the external (L2) cache area. The default is Enabled. Options: Enabled, Disabled. CPU L2 Cache ECC Checking This item allows you to enable/disable CPU L2 Cache ECC checking.
  • Page 30 AN19E/AN19C Mainboard Manual First /Second/Third/Other Boot Device The BIOS attempts to load the operating system from the devices in the sequence selected in these items. Options: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN, Disabled.
  • Page 31 BIOS Setup Fast: The A20 signal is controlled by Port 92 or chipset specific method. Typematic Rate Setting This determines the keystrokes repeat rate. The default is Disabled. Enabled: Allows typematic rate and typematic delay programming. Disabled: The typematic rate and typematic delay will be controlled by the keyboard controller in your system.
  • Page 32 AN19E/AN19C Mainboard Manual MPS Version Control For OS Specifies the Multiprocessor Specification (MPS). Version 1.4 supports multiple PCI bus configurations by incorporating extended bus definitions. Enable this for Windows NT or Linux. For older operating systems, select Version 1.1. The default is 1.4.

  • Page 33: Advanced Chipset Features

    BIOS Setup Advanced Chipset Features System BIOS Cacheable This item allows the system to be cached in memory for faster execution. The default is Enabled. Options: Disabled, Enabled. Video RAM Cacheable This option allows the CPU to cache read/writes of the video RAM. The default is Enabled.
  • Page 34 AN19E/AN19C Mainboard Manual DRAM Timing For setting DRAM Timing, By SPD is follow SDRAM Serial Presence Detect Specification. Options: Manual, Auto by SPD. DRAM CAS Latency Enables you to select the CAS latency time. The value is set at the factory depending on the DRAM installed.

  • Page 35: Agp & P2P Bridge Control

    BIOS Setup Active to CMD (Trcd) This item sets the timing parameters for the system memory such as the CAS (Column Address Strobe) and RAS (Row Address Strobe). The default is by DRAM SPD. Options: 3T, 2T, 4T, 5T. DRAM Burst Length Options: 4, 8.

  • Page 36: Cpu & Pci Bus Control

    AN19E/AN19C Mainboard Manual AGP Driving Control This item allows you to adjust the AGP driving force. Choose Manual to key in a AGP Driving Value in the next selection. This field is recommended to set in Auto for avoiding any error in your system.
  • Page 37 BIOS Setup VLink 8X Support Enables VLink 8X support. Options: Enabled, Disabled. PCI Delay Transaction The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specifica VLink 8X Support Enables VLink 8X support.

  • Page 38: Integrated Peripherals

    AN19E/AN19C Mainboard Manual Integrated Peripherals Notes: • If you do not use the Onboard IDE connector, then you will need to set Onboard Primary PCI IDE: Disabled and Onboard Secondary PCI IDE: Disabled • The Onboard PCI IDE cable should be equal to or less than 18 inches (45 cm.).

  • Page 39: Via Onchip Ide Device

    BIOS Setup Onchip USB Controller Enables the USB controller. Options: All Disabled, All Enabled, 1&2 USB port, 2&3 USB port, 1&3 USB port, 1 USB port, 2 USB port, 3 USB port. USB Keyboard Support Your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard Device.

  • Page 40: Via Onchip Pci Device

    AN19E/AN19C Mainboard Manual IDE Prefetch Mode Selecting Enabled reduces latency between each drive read/write cycle, but may cause instability in IDE subsystems that cannot support such fast performance. If you are getting disk drive errors, try setting this value to Disabled.
  • Page 41 BIOS Setup AC97 Speaker At POST This item allows you to decide to enable or disable AC97 Speaker At POST function. The default is Disabled. Options: Enabled, Disabled. Game Port Address Select an address for the Game port. Options: 201 (default), 209, Disabled. Midi Port Address Select an address for the Midi port.
  • Page 42 AN19E/AN19C Mainboard Manual Super IO Chip Setup Onboard FDC Controller Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install and-in FDC or the system has no floppy drive, select Disabled in this field.
  • Page 43 BIOS Setup Onboard Parallel Port This field allows the user to configure the LPT port. Options: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled. Parallel Port Mode This field allows the user to select the parallel port mode. Options: SPP, EPP, ECP, ECP+EPP. EPP Mode Select This item allows you to determine the IR transfer mode of onboard I/O chip.

  • Page 44: Power Management Setup

    AN19E/AN19C Mainboard Manual Power Management Setup ACPI Function This option allows you to select ACPI Function. The default is Enabled. Options: Enabled, Disabled. ACPI Suspend Type This item allows you to select S1(POS) or S3(STR) function. Options: S1(POS), S3(STR), S1&S3.
  • Page 45 BIOS Setup User define: Allows user to define PM Timers parameters to control power saving mode. HDD Power Down When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. Options: Enabled, 1Min ~ 15Min.

  • Page 46: Irq/Event Activity Detect

    AN19E/AN19C Mainboard Manual MODEM Use IRQ Name the interrupt request (IRQ) line assigned to the modem (if any) on your system. Activity of the selected IRQ always awakens the system. Default is IRQ 3. Options: N/A, 3, 4, 5, 7, 9, 10, 11...
  • Page 47 BIOS Setup PS2KB Wakeup form S3-S5 This item allows you to set a Hot Key to wake-up the system by PS2 Key- board. Options: Disabled, Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4, Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake, Any key. Note: Power and Wake are Windows98 Keyboard button.

  • Page 48: Irqs Activity Monitoring

    AN19E/AN19C Mainboard Manual Wake Up On LAN/Ring When set to Enabled, any event occurring to the Modem Ring / LAN will awaken a system which has been powered down. RTC Alarm Resume When set to Enable rtc alarm resume, you could set the date (of month) and timer (hh:mm:ss), any event occurring at will awaken a system which has been powered down.
  • Page 49 BIOS Setup PNP OS Installed Do you have a PNP OS installed on your system. The default is No. Options: Yes, No. Reset Configuration Data This setting allows you to clear ESCD data. The default is Disabled Disabled: Normal Setting. Enabled: If you have plugged in some Legacy cards to the system and they were recorded into ESCD (Extended System Configuration Data), you can set this field to Enabled in order to clear ESCD.
  • Page 50 AN19E/AN19C Mainboard Manual Assign IRQ For USB This item allows BIOS to assign whether IRQ is with USB or not. If you have not connect the USB device. Can release the IRQ for other device. The default is Enabled. Options: Enabled, Disabled.

  • Page 51: Pc Health Status

    BIOS Setup PC Health Status Show PC Health in POST When this function is enabled the PC Health information is displayed during the POST (Power On Self Test). Options: Disabled, Enabled. CPU Warning Temperature Sets the temperature at which the computer will respond to an overheating CPU.

  • Page 52: Frequency/Voltage Control

    AN19E/AN19C Mainboard Manual Vcore The voltage level of the CPU(Vcore). Vagp The voltage level of Power supplied to AGP card. VDIMM The voltage level of the DRAM. + 5V, +12V, VBAT(V), 5VSB(V) The voltage level of the switching power supply.

  • Page 53: Load Fail-Safe Defaults

    BIOS Setup Current CPU Frequency Diaplay the current CPU clock frequency information. Current DRAM Frequency Display the DRAM frequency information. Auto Detect DIMM/PCI Clk When enabled the mainboard automatically disables the clock source for a DIMM/PCI slot which does not have a module in it, reducing EMI (ElectroMagnetic Interference).

  • Page 54: Save And Exit Setup

    AN19E/AN19C Mainboard Manual Under the BIOS Feature Setup, if Setup is selected under the Security Option field and the Supervisor/User Password is enabled, you will be prompted password every time you try to enter the CMOS Setup Utility. If System is...
  • Page 55 Addendum The Audio Driver Installing Procedures for AN19E/AN19C Users -Under certain configurations, if auto installation does not work for audio driver. Please install audio driver manually. The next a few steps shows you how to install the audio driver. 1). Right click My Computer and choose Properties.
