4K HDMI over HDBaseT™ 2.0 Extender Set
with USB 2.0 | S/PDIF | IR & RS232 (100m/328ft)
EX-100-4K-PRO
Fully featured HDMI extender set using HDBaseT 2.0 specification allowing 4K video, HD audio, Ethernet, USB, Power and control over 100m/328ft of Cat6
cable.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about this product.
• Verify that all items are included in the packaging per the

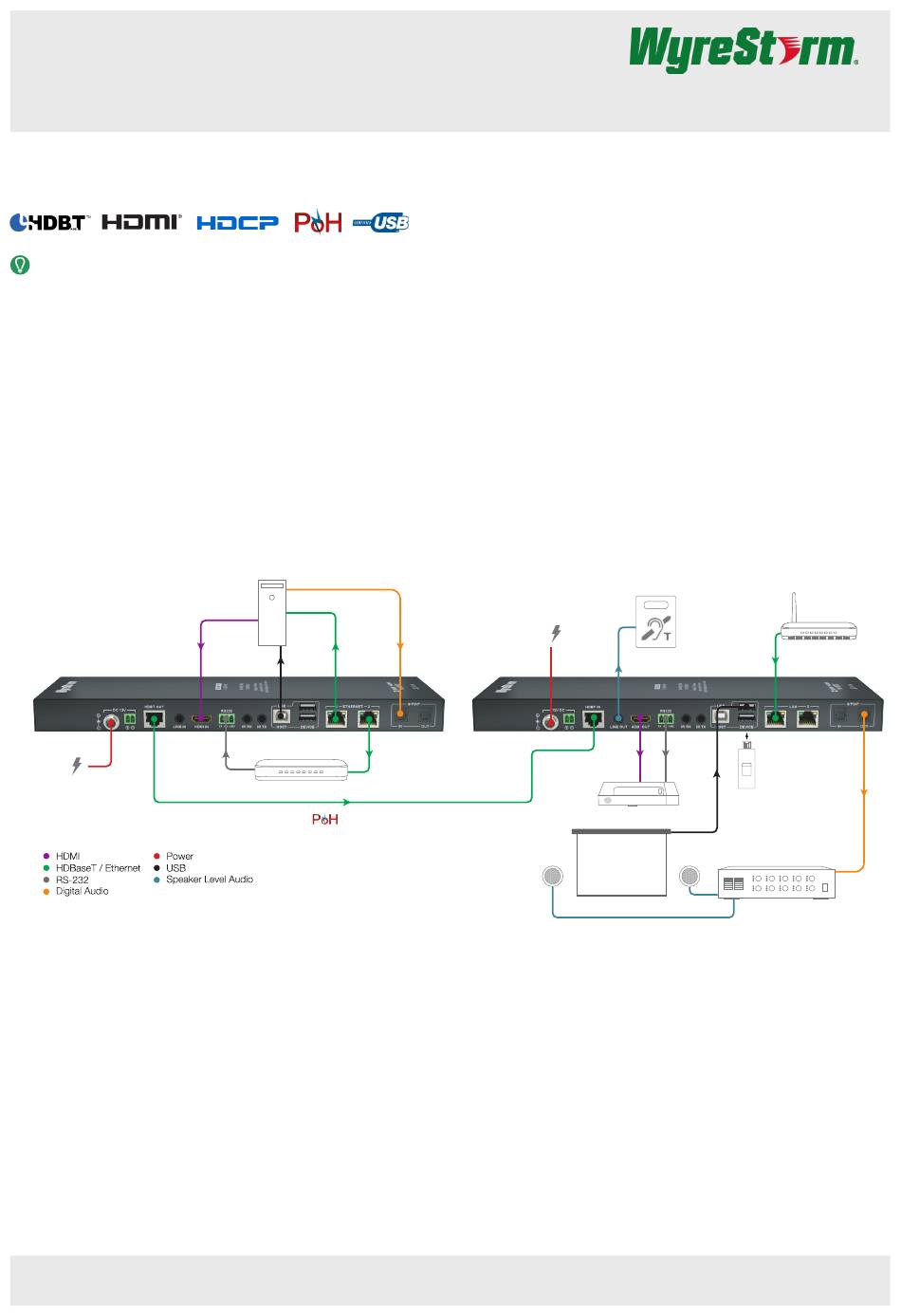

Basic Wiring Diagram

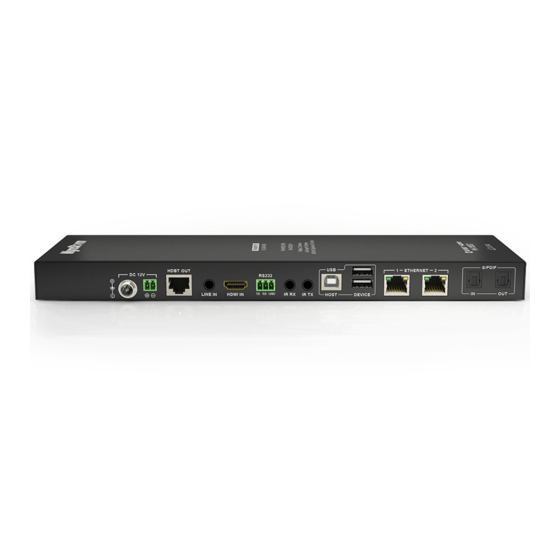

EX-100-4K-PRO Transmitter (TX)
12 DC 2A
Power Supply
KEY
Copyright © 2018 WyreStorm Technologies |
EX-100-4K-PRO Quickstart Guide | 190212
In The Box
Personal Computer
Ethernet
HDMI
Cat5e/6/6a
USB 2.0
Host
RS-232 from Control System
HDBaseT
Cat5e/6/6a
wyrestorm.com
In the Box
1x EX-100-4K-PROTransmitter
1x EX-100-4K-PROReceiver
1x 12V DC 2A Power Supply (US/UK/EU)
list.
2x 2-pin Screw Down Phoenix Connectors
2x 3-pin Screw Down Phoenix Connectors
2x IR Emitters
2x Wide-band IR Receivers (30-50KHz)
4x Mounting Brackets (1pr for TX and 1pr for RX)
1x Quickstart Guide (this document)
12 DC 2A
Power Supply
Digital Audio
EX-100-4K-PRO Receiver (RX)
Ethernet
Cat5e/6/6a
1 of 4
Quickstart Guide
Analog Audio
Hearing
Induction Loop
HDMI
RS-232
Short Throw
Projector
Isochronous
Interactive Whiteboard
USB 2.0 Data
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Router or Switch
Ethernet
Cat5e/6/6a
USB
Flash Drive
Amplifier
support@wyrestorm.com
Advertisement
Related Manuals for Wyrestorm EX-100-4K-PRO
Summary of Contents for Wyrestorm EX-100-4K-PRO
- Page 1 Fully featured HDMI extender set using HDBaseT 2.0 specification allowing 4K video, HD audio, Ethernet, USB, Power and control over 100m/328ft of Cat6 cable. WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 If using PoH from the receiver to power the transmitter, connect the included 12V DC 2A power supply to the DC 12V jack. Dipswitch Settings The Set dipswitches on the front panel of both the transmitter and receiver configure various functions within the EX-100-4K-PRO. • Long Cable mode change must be made on both the TX and RX.
- Page 4 Safety and Emission CE | FCC | RoHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
