Wyrestorm EX-1UTP-IR-70 Quickstart Information Sheet

WYRESTORM QUICKSTART INFORMATION SHEET
WyreStorm ex-1utp-ir-70

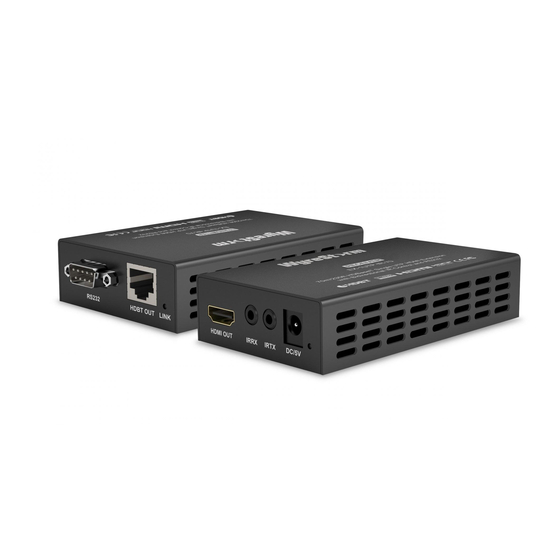

Single 70m (230ft) HDBaseT 2 way IR & RS232 Extender Set
Attention:
We strongly recommend using the supplied
mounting brackets to secure both the transmitter and receiver
baluns. Sudden movement of these devices can lead to
unnecessary service call outs and loss of picture/sound due to
stress on connections.
1
HDMI: Connect the HDMI source (i.e. HD-DVD,
PS3, Cable/Sat box, Blu-ray etc.) to the HDMI IN of the
TRANSMITTER and connect the HDMI DISPLAY (i.e. LCD/
plasma TV, digital projector etc.) to the HDMI OUT of the
RECEIVER.
Use good quality HDMI cables, ensuring connectors are
inserted firmly in ports and avoid excessive bending of cable.
Attention:
Do Not Hotswap! - Please insert and
extract cables carefully with the power SWITCHED OFF.
Connecting and disconnecting while the unit is powered can
result in damage to circuitry.
2
One-way IR: Position the small, round IR TX emitter directly
over the infrared receiving area of the SOURCE and secure
with the adhesive backing. You may need to adjust the location
of the emitter later to achieve best results - repositioning to
different areas on the source facia can sometimes improve IR
performance. Insert the IR TX 3.5mm jack into the IR TX port on
the TRANSMITTER.
Tip: You can locate the small, round infrared sensor by shining
a flashlight onto the display panel of your source.
3
Insert the IR RX 3.5mm jack into the IR RX port on the
RECEIVER. Discretely attach the larger, rectangular IR eye to
the DISPLAY with the adhesive backing, ensuring a clear line of
sight to the remote control being used. Again, repositioning IR
RX may be required to achieve best results.
For two-way control of SOURCE and DISPLAY from both
locations, an IR TX eye should also be placed over the IR sensor
of the DISPLAY and an IR RX eye placed on the SOURCE.
4

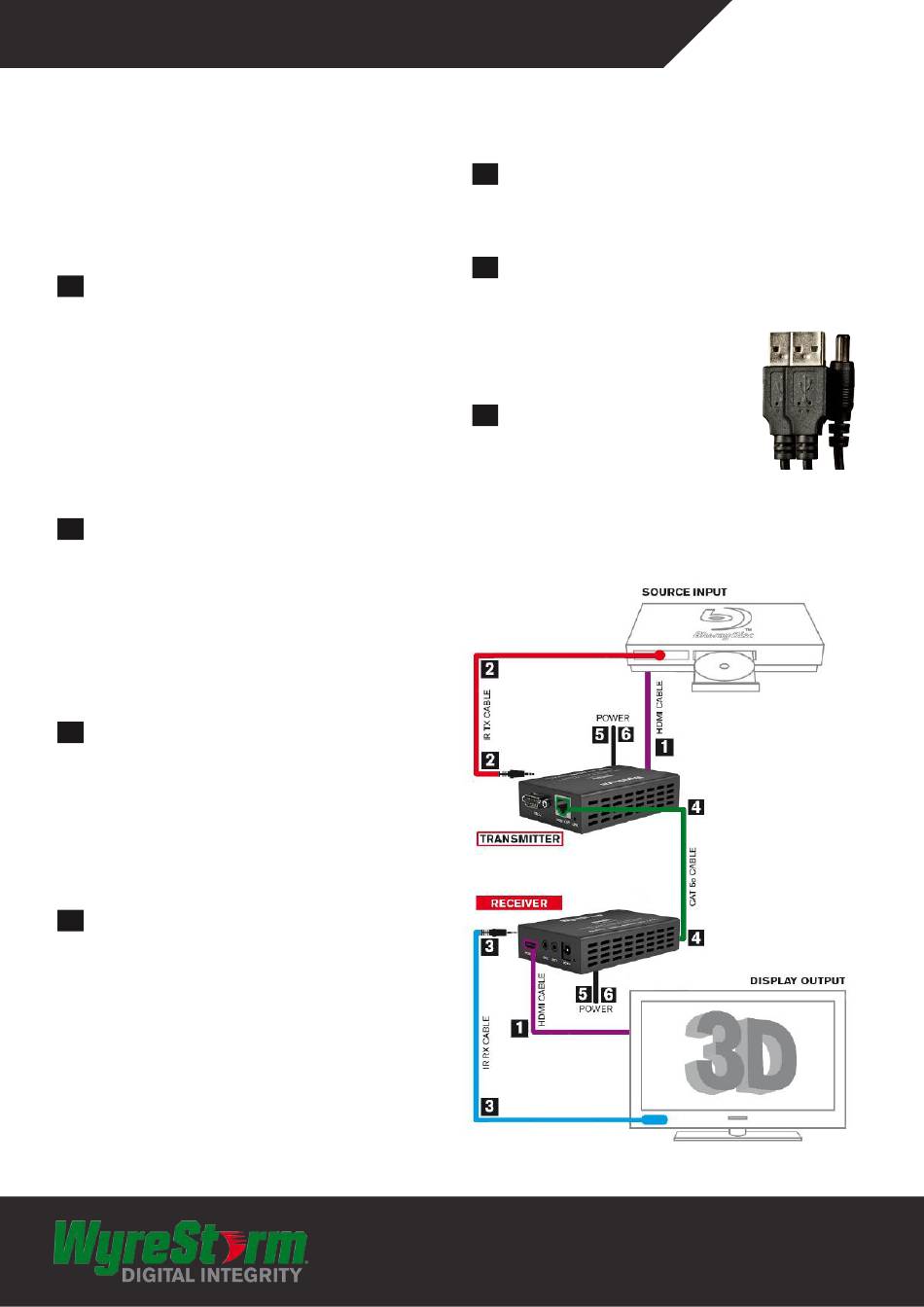

Cat5e/6 Transmission: Connect the TRANSMITTER and
RECEIVER with a single, good quality, well terminated and
tested Cat5e/6 cable with RJ45 connectors wired to 568B
standard at both ends up to a distance of 70m (230ft). (See
diagram)
The quality of each RJ45 termination is essential - poor
termination leads to intermittent performance and longer install
times.
Attention:
Check connectors are pushed securely into each
port and supported by the connector strain relief clip to prevent
them from becoming loose.
5
Power: Add the 5V power supplies provided to both
TRANSMITTER and RECEIVER. We do not recommend passing
power remotely over long cable distances as this can affect
product performance.
6
You can also power TRANSMITER and RECEIVER units
using WyreStorm USB to 5V adaptors connected to DISPLAYS
or SOURCES with spare USB ports. This not only solves space
and power availability problems at locations,
it also offers improved energy efficiency as
extenders are only powered when devices
are turned on.
7
Finally, power on TRANMITTER,
RECEIVER and all connected devices and
your extender set is ready for use.
Attention:
the units are powered and a signal link is established between
the units. If not, check connections, devices and power
supplies or follow the troubleshooting overleaf.
US OFFICE: EMEA OFFICE:
TEL: +1 901 384 3575 TEL: + 44 (0) 1793 230 343
FAX: +1 901 384 3574 FAX: + 44 (0) 1793 230 583
Check LED POWER and STATUS are lit to confirm
*PLEASE NOTE
-
All cable distances are
on the basis of a direct
runs of cable (no patch
panels or wall outlets).
Please use good quality,
solid conductor, Cat5e
cable. Standard pre-made
patch leads will reduce
effectiveness of this product.
Please ensure Cat5e cables
are installed to local electrical
regulations. Close lying
electrical cables can effect
product performance.
