4K HDR 4:4:4 60Hz HDBaseT™ Extender with DSC
Supporting USB.2.0 Client/host (4K: 100m/328ft)
EX-100-H2-PRO
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document
versions, additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
HDMI
EX-100-H2-PRO Transmitter (TX)
12 DC 2A
Power Supply
Copyright © 2020 WyreStorm Technologies |
EX-100-H2-PRO v1 Quickstart Guide | 200227
section for important wiring
Personal Computer
Ethernet
USB 2.0 Host
RS-232 from Control System
HDBaseT
Cat6/6a
wyrestorm.com
In the Box

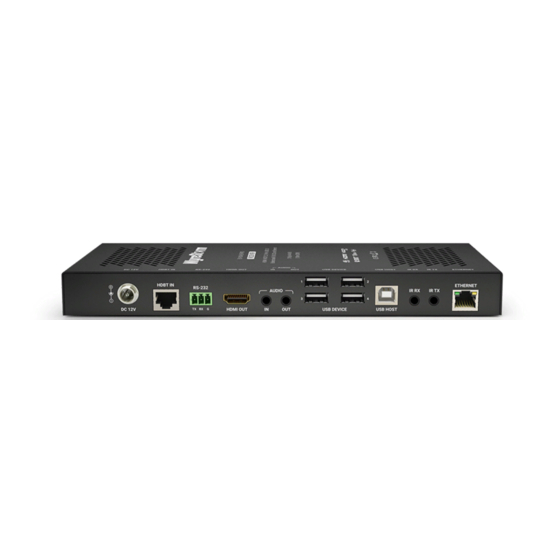

1x EX-100-H2-PRO Transmitter (TX)
1x EX-100-H2-PRO Receiver (RX)
1x IR Emitter
1x IR Receiver
2x 3-pin Terminal Block
1x 12V DC 3A Power Supply (US/UK/EU/AU)
4x Mounting Brackets
1x Quickstart Guide (this document)
12 DC 2A
Power Supply
Wireless Router
Short Throw
Projector
1 of 4
Quickstart Guide
Hearing
Induction Loop
Wireless Access Point
Analog Audio
RS-232
HDMI
USB
Flash Drive
Isochronous
Interactive Whiteboard
USB 2.0 Data
KEY
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
EX-100-H2-PRO Receiver (RX)
