Wyrestorm HDBT EX-1UTP-IR-100 Quick Start Manual

HDBaseT Extender Set
EX-1UTP-IR-100
Part Number
ttention: Do Not Hotplug! - Please insert and extract
cables carefully with the power switched off.
Connecting and disconnecting cables while the unit is
powered can damage circuitry.

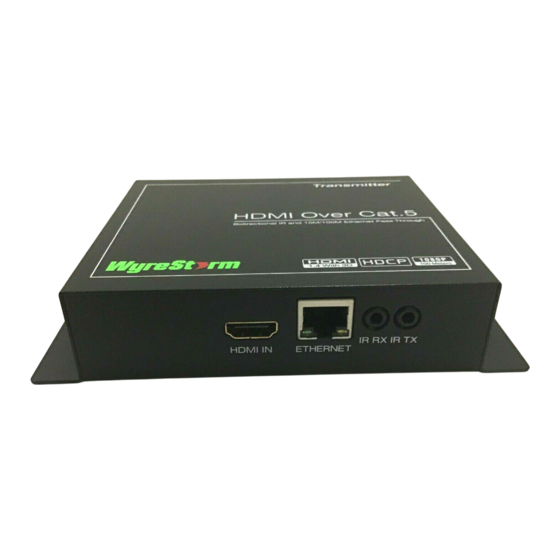

Connect the HDMI source input (such as: HD-DVD,
1
PS3, Cable/Sat box, Blu-ray etc.) to the HDMI IN of the
TRANSMITTER balun. Avoid excessive bending of the
HDMI cable and ensure connectors are inserted firmly
in all ports.
ttention: We strongly recommend using the supplied
!
mounting brackets to secure both baluns. Sudden
movement of these devices can lead to unnecessary
service call outs and loss of picture/sound due to stress
on connections.
Position the IR TX emitter sensor over the infrared
2
receiving area of the source input and fix with the
adhesive backing. You may need to adjust the location
of the emitter later to achieve the best results –
sometimes moving the sensor to different areas on the
source facia can improve IR performance.
Insert the IR TX 3.5mm jack into the IR TX port on the
TRANSMITTER balun.
Tip: you can locate the small, round infrared sensor by
shining a flashlight onto the facia of devices.
For two-way IR (to control the display from the source
3
location) insert the IR RX 3.5mm jack into the IR RX
port on the TRANSMITTER balun and connect the
larger, rectangular IR RX receiver to the your chosen
control system. See 9.
RE R P NEL VIEW
RS232 LINK ETHERNET DC5V
10
TO CONTROL
POWER
SYSTEM
5
11
DDITION L
CONTROL OF
DISPL Y
POWER
THROUGH RS232
10
RS232 LINK ETHERNET
DC5V
RE R P NEL VIEW
HDMI IN ETHERNET
TR NSMITTER
4
6
HDMI IN ETHERNET
RECEIVER
Extending HDMI using Cat5e to 100 m (328 ft)
with IR source control
For transmission of internet - connect an Ethernet cable
4
from your internet source to the Ethernet port on the
TRANSMITTER balun.
Connect a good quality, well terminated and tested Cat
5
5e/6e cable with RJ45 connectors from the UTP OUT
port of the TRANSMITTER to the UTP IN port of the
RECEIVER. Ensure connectors are pushed securely into
each port and supported by the cable strain relief clip
to prevent loosening.
ttention: UTP cable must be correctly terminated to
!
568B standard at both ends (see diagram). Inadequate
cable quality or poor RJ45 termination leads to inter-
mittent performance and longer install times.
Connect the HDMI display output (such as: HD-
6
LCD/HD-DLP) to the HDMI OUT of the RECEIVER.
To view internet on the display - Connect another
7
Ethernet cable from the Ethernet port on the RECEIVER
to the corresponding HDMI input on your display.
Insert the IR RX 3.5mm jack into the IR RX port on the
8
RECEIVER. Discretely attach the IR receiver to the
display with the adhesive backing, ensuring a clear line
of sight to the remote control being used. You may
need to adjust the position of the IR RX to achieve best
results.
1
2
IR IR
TX
RX
3
10
FROM TR NSMITTER
L N
INTERNET
CONNECTION
7
10
TO RECEIVER
8
IR IR
RX TX
9
CONTROL
SYSTEM
