- Page 1 EVK-F9T Evaluation kit User guide Abstract This document describes the structure and use of the EVK-F9T evaluation kit and provides information for evaluating and testing u-blox F9 positioning technology for timing and raw data applications. UBX-21040453 - R01 C1- Public...
- Page 2 EVK-F9T - User guide Document information Title EVK-F9T Subtitle Evaluation kit Document type User guide Document number UBX-21040453 Revision and date 6-Jun-2022 Disclosure restriction C1- Public Product status Corresponding content status In development / Objective specification Target values. Revised and supplementary data will be published later.
-
Page 3: Table Of Contents
EVK-F9T - User guide Contents Contents ................................3 Product description ..........................4 1.1 Overview ................................ 4 1.2 Kit includes ..............................4 1.3 Software and documentation........................4 1.3.1 u-center GNSS evaluation software ....................4 1.4 System requirements ..........................4 Specifications ............................5 2.1 Safety precautions ............................. -
Page 4: Product Description

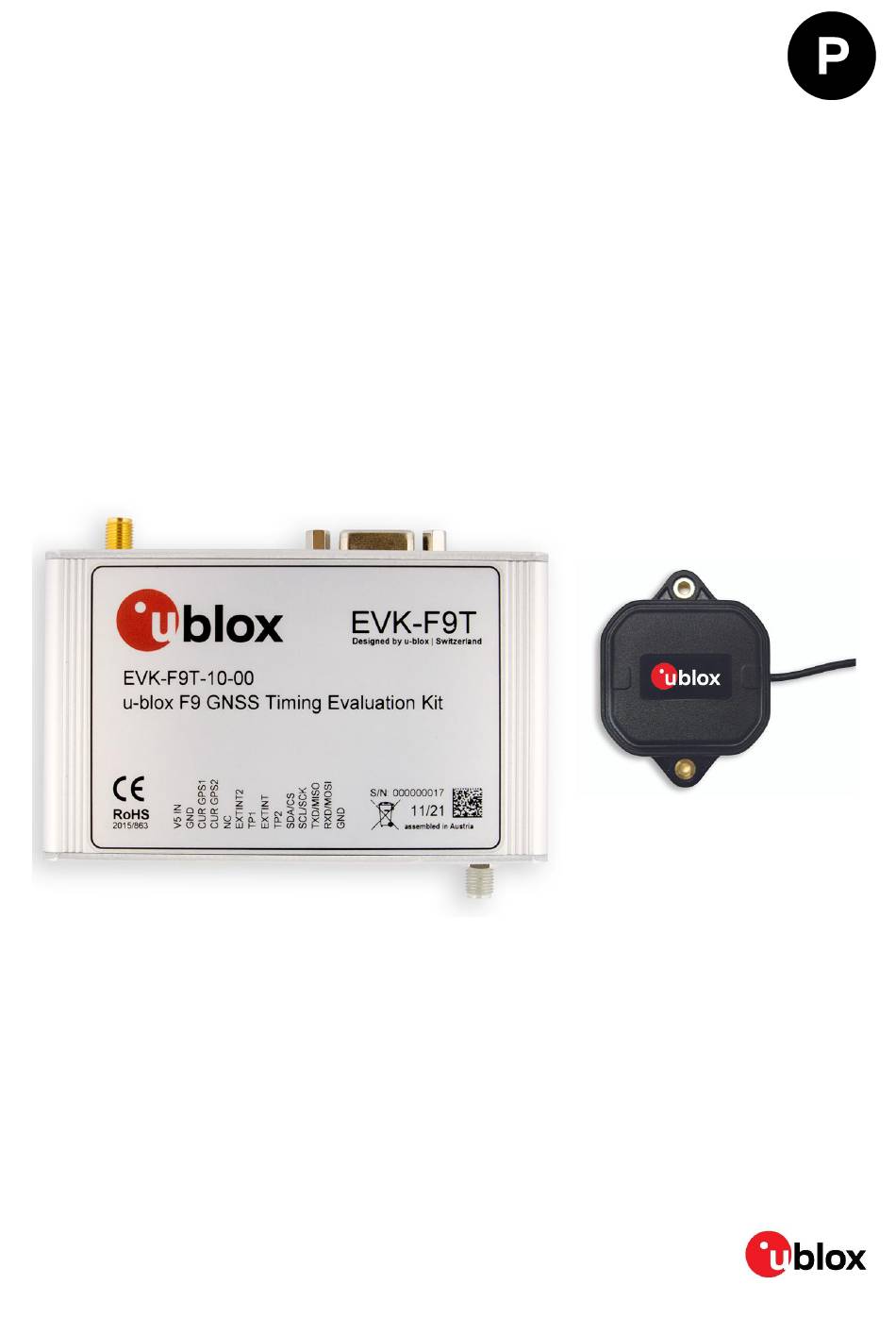

Product description 1.1 Overview The EVK-F9T evaluation kit simplifies the evaluation of the high-performance u-blox F9 Timing products. The built-in USB interface provides both power supply and high-speed data transfer and eliminates the need for an external power supply. The u-blox evaluation kits are compact, and their user-friendly interface and power supply make them ideally suited for use in laboratories, vehicles, and outdoor locations. -
Page 5: Specifications
1:2018 [5] for more information on the PS1 class. In addition to a limited power source, only ES1 class circuits are to be connected to the EVK-F9T, including interfaces and antennas. See section 5.2.1.1 of IEC 62368-1:2018 [5] for more information on the ES1 class. -
Page 6: Setting Up
EVK-F9T - User guide Setting up 3.1 u-center installation u-center, the u-blox interactive evaluation software tool is required for configuration, testing, visualization and data analysis of u-blox GNSS receivers as well as EVKs. The provided user guide together with the evaluation tool provide useful assistance during all phases of a system integration project. - Page 7 EVK-F9T - User guide Default messages activated as in UART1. Input/output protocols available as in UART1. Compatible with the I2C industry standard, available for communication with an external host CPU or u-blox cellular modules, operated in slave mode only. Default messages activated as in UART1.
-
Page 8: Device Description
Figure 1: Connecting the unit for power supply and communication 4.2 Active antenna EVK-F9T evaluation kits include an ANN-MB1 multi-band (L1/L5) active GNSS antenna with a 3- meter cable and SMA connector. The recommended maximum antenna supply current for active antennas is 15 mA. -
Page 9: Usb Connector
J7 jumper can be shorted to allow higher output current when driving low impedance loads. User must open the evaluation kit to access the J7 jumper as shown in the Figure 3. Figure 3: EVK-F9T evaluation unit – PCB layout 4.3.3 USB connector A USB V2.0 compatible serial port is featured for data communication and power supply. -
Page 10: Safe Boot Button
EVK-F9T - User guide ☞ The RESET pin will delete all information and trigger a cold start. It should only be used as a recovery option. 4.3.6 Safe boot button This is used to set the unit in safe boot mode. In this mode the receiver executes only minimal functionality, such as updating new firmware into the flash memory. -
Page 11: Led
If slide switch on SPI, the SPI interface is selected; Master out Slave in (MOSI) Common ground pin Table 5: Connector pin description for EVK-F9T (pins numbered from right to left on the front panel) For accurate measurements, it is recommended to use a cable of at most 1 meter in length. Figure 4 shows an example of a power supply connected to the test connector by using standard adapter cables from the manufacturer Hirschmann. -
Page 12: Gnss Current Measurement
AssistNow™ Online service. To measure the total GNSS supply current with EVK-F9T, follow these steps: 1. Power up EVK-F9T. 2. Connect a true RMS voltmeter across CUR GPS1 (pin 12) and CUR GPS2 (pin 13) of the 14-pin connector. -
Page 13: Block Diagram
EVK-F9T - User guide Block diagram Figure 6: EVK-F9T block diagram UBX-21040453 - R01 Block diagram Page 13 of 23 C1- Public... -
Page 14: Board Layout
EVK-F9T - User guide Board layout Figure shows the EVK-F9T board layout. See Table 7 for the component list of the EVB. Figure 7: EVB-F9T layout Part Description GNSS RECEIVER U-BLOX ZED-F9T-10B -40/+85C C1 C2 C4 C6 C8 C9 CAP CER X5R 0402 TY 1U0 10% 6.3V... - Page 15 EVK-F9T - User guide USB DATA LINE PROTECTION ST USBLC6-2SC6 SOT23-6 D13 D14 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS14 1A -55/+125C LED OSRAM HYPER MINI TOPLED LB M673-L1N2-35 BLUE 0.02A D16 D17 ESD PROTECTION FOR HIGH-SPEED LINES, TYCO, 0.25PF, PESD0402-140 -...
-
Page 16: Schematic
EVK-F9T - User guide Schematic Figure 8: Schematic EVK-F9T: GNSS, Antenna supervisor, Supply UBX-21040453 - R01 Schematic Page 16 of 23 C1- Public... - Page 17 EVK-F9T - User guide Figure 9: Schematic EVK-F9T: Connectors UBX-21040453 - R01 Schematic Page 17 of 23 C1- Public...
-
Page 18: Troubleshooting
EVK-F9T - User guide Troubleshooting My application (e.g. u-center) does not receive anything Check whether the blue LED on the evaluation unit is blinking. Also make sure that the USB cable is properly connected to the evaluation unit and the PC. By default, the evaluation unit outputs NMEA protocol on Serial Port 1, or on the USB. - Page 19 (e.g. disabling the main communication port). The EVK-F9T does not work properly when connected with a GNSS simulator When using an EVK together with a GNSS simulator, pay attention to proper handling of the EVK. A GNSS receiver is designed for real-life use, i.e.
-
Page 20: Common Evaluation Pitfalls
EVK-F9T - User guide 10 Common evaluation pitfalls • A parameter may have the same name but a different definition. GNSS receivers may have a similar size, price and power consumption, but can still have different functionalities (e.g. no support for passive antennas, different temperature range). Also, the definitions of hot, warm, and cold start times may differ between suppliers. -
Page 21: Related Documentation
EVK-F9T - User guide Related documentation [1] ZED-F9T-10B Data sheet, UBX-20033635 [2] u-blox F9 TIM 2.20 Interface description, UBX-21048598 [3] ZED-F9T Integration manual, UBX-21040375 [4] u-center User guide, UBX-13005250 [5] Information technology equipment – Safety Standard IEC 62368-1:2018 ☞ For product change notifications and regular updates of u-blox documentation, register on our website, www.u-blox.com. -
Page 22: Appendix
EVK-F9T - User guide Appendix A Glossary Abbreviation Definition BeiDou Chinese navigation satellite system Evaluation Kit Inter-Integrated Circuit bus Electrostatic Discharge Galileo European navigation satellite system GLONASS Russian navigation satellite system Ground GNSS Global Navigation Satellite System Global Positioning System... -
Page 23: Contact
EVK-F9T - User guide Contact For complete contact information, visit us at www.u-blox.com. u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180...
