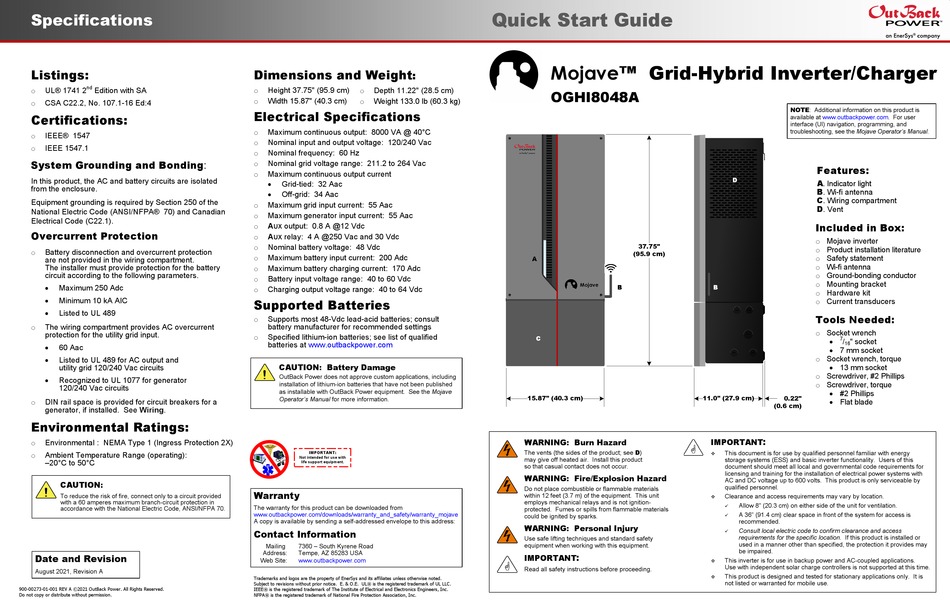

EnerSys OutBack POWER Mojave OGHI8048A Quick Start Manual

Specifications
Listings:
nd
o UL® 1741 2 Edition with SA
CSA C22.2, No. 107.1-16 Ed:4
o
Certifications:
o IEEE® 1547
IEEE 1547.1
o
System Grounding and Bonding:
In this product, the AC and battery circuits are isolated
from the enclosure.
Equipment grounding is required by Section 250 of the
National Electric Code (ANSI/NFPA® 70) and Canadian
Electrical Code (C22.1).
Overcurrent Protection
Battery disconnection and overcurrent protection
o
are not provided in the wiring compartment.
The installer must provide protection for the battery
circuit according to the following parameters.

Maximum 250 Adc

Minimum 10 kA AIC

Listed to UL 489
The wiring compartment provides AC overcurrent
o
protection for the utility grid input.
 60 Aac

Listed to UL 489 for AC output and
utility grid 120/240 Vac circuits
 Recognized to UL 1077 for generator
120/240 Vac circuits
DIN rail space is provided for circuit breakers for a
o
generator, if installed. See Wiring.
Environmental Ratings:
o Environmental : NEMA Type 1 (Ingress Protection 2X)
Ambient Temperature Range (operating):
o
–20°C to 50°C
CAUTION:
!
To reduce the risk of fire, connect only to a circuit provided
with a 60 amperes maximum branch-circuit protection in
accordance with the National Electric Code, ANSI/NFPA 70.
Date and Revision
August 2021, Revision A
900-00273-01-001 REV A ©2021 OutBack Power. All Rights Reserved.
Do not copy or distribute without permission.
Dimensions and Weight
:
o Height 37.75" (95.9 cm) o Depth 11.22" (28.5 cm)
Width 15.87" (40.3 cm) Weight 133.0 lb (60.3 kg)
o o
Electrical Specifications
Maximum continuous output: 8000 VA @ 40°C
o
Nominal input and output voltage: 120/240 Vac
o
Nominal frequency: 60 Hz
o
o Nominal grid voltage range: 211.2 to 264 Vac
Maximum continuous output current
o
 Grid-tied: 32 Aac
 Off-grid: 34 Aac
Maximum grid input current: 55 Aac
o
o Maximum generator input current: 55 Aac
A output: 0.8 A @12 Vdc
o
UX
o A relay: 4 A @250 Vac and 30 Vdc
UX
Nominal battery voltage: 48 Vdc
o
o Maximum battery input current: 200 Adc
Maximum battery charging current: 170 Adc
o
Battery input voltage range: 40 to 60 Vdc
o
o Charging output voltage range: 40 to 64 Vdc
Supported Batteries
Supports most 48-Vdc lead-acid batteries; consult
o
battery manufacturer for recommended settings
Specified lithium-ion batteries; see list of qualified
o
batteries at www.outbackpower.com
CAUTION: Battery Damage
!
OutBack Power does not approve custom applications, including
installation of lithium-ion batteries that have not been published
as installable with OutBack Power equipment. See the Mojave
Operator's Manual for more information.
IMPORTANT:
Not intended for use with
life support equipment.
Warranty
The warranty for this product can be downloaded from
www.outbackpower.com/downloads/warranty_and_safety/warranty_mojave
A copy is available by sending a self-addressed envelope to this address:
Contact Information
Mailing 7360 – South Kyrene Road
Address: Tempe, AZ 85283 USA
Web Site: www.outbackpower.com
Trademarks and logos are the property of EnerSys and its affiliates unless otherwise noted.
Subject to revisions without prior notice. E. & O.E. UL® is the registered trademark of UL LLC.
IEEE® is the registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
NFPA® is the registered trademark of National Fire Protection Association, Inc.
Quick Start Guide
Mojave™ Grid-Hybrid Inverter/Charger
OGHI8048A
37.75"
(95.9 cm)
A
B
C
15.87" (40.3 cm)
WARNING: Burn Hazard
The vents (the sides of the product; see D)
may give off heated air. Install this product
so that casual contact does not occur.
WARNING: Fire/Explosion Hazard
Do not place combustible or flammable materials
within 12 feet (3.7 m) of the equipment. This unit
employs mechanical relays and is not ignition-
protected. Fumes or spills from flammable materials
could be ignited by sparks.
WARNING: Personal Injury
Use safe lifting techniques and standard safety
equipment when working with this equipment.
:
IMPORTANT
Read all safety instructions before proceeding.
NOTE: Additional information on this product is
available at www.outbackpower.com. For user
interface (UI) navigation, programming, and
troubleshooting, see the Mojave Operator's Manual.
Features:
D
A. Indicator light
B. Wi-fi antenna
C. Wiring compartment
D. Vent
Included in Box:
o Mojave inverter
o Product installation literature
o Safety statement
o Wi-fi antenna
o Ground-bonding conductor
o Mounting bracket
B
o Hardware kit
o Current transducers
Tools Needed:
o Socket wrench
7

/ " socket
16
 7 mm socket
o Socket wrench, torque
 13 mm socket
o Screwdriver, #2 Phillips
o Screwdriver, torque
 #2 Phillips
11.0" (27.9 cm) 0.22"
 Flat blade
(0.6 cm)
:
IMPORTANT
This document is for use by qualified personnel familiar with energy

storage systems (ESS) and basic inverter functionality. Users of this
document should meet all local and governmental code requirements for
licensing and training for the installation of electrical power systems with
AC and DC voltage up to 600 volts. This product is only serviceable by
qualified personnel.
Clearance and access requirements may vary by location.

Allow 8" (20.3 cm) on either side of the unit for ventilation.

A 36" (91.4 cm) clear space in front of the system for access is

recommended.
Consult local electric code to confirm clearance and access

requirements for the specific location. If this product is installed or
used in a manner other than specified, the protection it provides may
be impaired.
This inverter is for use in backup power and AC-coupled applications.

Use with independent solar charge controllers is not supported at this time.
This product is designed and tested for stationary applications only. It is

not listed or warranted for mobile use.
