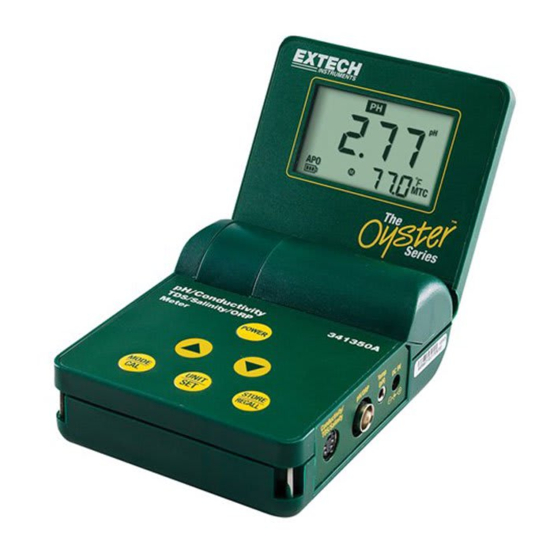

Oyster Meter
pH, Conductivity, TDS, Salinity, and ORP (mV)

Model 341350A


































www.ponpe.com
USER GUIDE
contact:
sale@ponpe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oyster 341350A-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Extech Instruments Oyster 341350A-P

  • Page 1 USER GUIDE      Oyster Meter  pH, Conductivity, TDS, Salinity, and ORP (mV)     Model 341350A                                                                      ...
  • Page 2: Meter Description

    Introduction  Congratulations on your purchase of the Extech Oyster Series meter. This device measures pH,  Conductivity, TDS, ORP and Salinity. These meters are intended for routine laboratory and field  testing. Accurate measurements are provided in a battery operated, portable meter with a hinged  display that can be adjusted to any viewing angle. This device is shipped fully tested and calibrated  and, with proper use, will provide years of reliable service. Please visit our website  (www.extech.com) to check for the latest version of this User Guide, Product Updates, Product  Registration, and Customer Support.      Meter Description  Front and Side panels  LCD display  Battery compartment  Power button  Up/Down arrow buttons  MODE/CAL button  UNIT/SET button  STORE/RECALL button  Connector, Conductivity probe   Connector, pH probe, ORP probe  Connector, Temperature probe  Connector, AC adaptor      9 10 11   Display  Mode indicators  Primary display  Data Hold indicator  Probe Renew indicator  Auto Power Off indicator  Low battery indicator  Memory status indicators  Calibration status indicators  Temperature display  Unit indicators  341350A-en-US_V1.3 8/15 contact: www.ponpe.com...
  • Page 3: Operation

    Operation  Battery Installation/Replacement  Open the battery cover by inserting a small coin into the latch slot and pressing downward. The  cover will release in the direction of the arrow. Install the new battery and replace the cover.          pH Measurements  Press the POWER button to turn the meter ON (the meter will cycle through a self‐check).  Press the MODE/CAL button until the PH icon switches on.  Press the UNIT/SET button to select ºC or ºF.  Connect the pH electrode to the side pH BNC connector.  Adjust the ▲▼buttons to match the temperature of the solution (or use the external  temperature probe to do so).  If required, calibrate the electrode (see pH Calibration).  Place the electrode in the sample solution and read the pH value on the display.  When all measurements have been taken, unplug the electrode and rinse in distilled water;  then shake and store it in the wetting cap with 4.0 M KCL or in a pH 4 buffer solution.  Conductivity/TDS/Salt Measurements   Press the POWER button to turn the meter ON.  Press the MODE/CAL button until the COND, SALT or TDS icon is displayed.  Connect the conductivity electrode to the side conductivity connector.  If required, calibrate the electrode (see Conductivity Calibration).  Place the electrode in the sample solution and read the value on the display.  When finished, unplug the electrode and rinse in distilled water.   ORP (mV) Measurements  Press the POWER button to turn the meter ON.  Press the MODE/CAL button until the ORP icon is displayed.  Connect the ORP electrode to the side ORP BNC connector.  Place the electrode in the sample solution and read the mV value on the display.  When all measurements have been taken, unplug the electrode and rinse in distilled water.  Store the probe tip in the wetting cap in a 4.0 M KCL or in a pH 4 buffer solution.  341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
  • Page 4: Data Memory

    Data Memory  25 readings can be stored to, and recalled from, the internal memory.  Storing readings  With the reading on the display, momentarily press the STORE/RECALL button. The STORE  and HOLD display icons will appear on the LCD and the reading will freeze.   Momentarily press the STORE/RECALL button again to confirm and to return to the normal  operation mode.   Up to 25 readings can be stored in this way.  Recalling Readings  Press and hold the STORE/RECALL button. The RECALL icon and the memory location  number will appear, followed by the data stored in the displayed memory location.   Use the ▼ ▲buttons to scroll through the memory locations and to view the stored data.   Momentarily press the STORE/RECALL button to exit the Recall Readings mode. End will  appear in the display; the meter will then return to the normal measurement mode.  Clearing the memory  With the meter on, press and hold the ▼ and ▲ buttons for 2 seconds. The CLr icon will appear  on the display, indicating that the memory has been erased.  Temperature Units  Press the UNIT button to select ºF or ºC.  Manual Temperature Compensation  In the pH mode, the solution temperature can be measured and set by using the optional  external temperature probe or, when the probe is not used, by adjusting the temperature  display. Press the ▲▼buttons to set the temperature when the MTC icon is displayed.     The Conductivity probe has a built‐in temperature sensor so manual temperature compensation  does not apply for Conductivity measurements.  Auto Power off (APO)  The meter is equipped with an Automatic Power Off feature. The meter will power down after a  10‐minute period of inactivity. This feature can be disabled by pressing and holding the POWER  button for 2 seconds (the APO display icon indicates that this feature is enabled). After disabling  APO, the next time the meter is powered up APO will be re‐enabled.  Reset to Default settings  The meter can be reset to its factory default configuration:  With the meter OFF, press and hold the POWER and STORE/RECALL buttons simultaneously  until dFLt  rSt appears in the display.  Release the buttons and the meter will continue with a normal startup.  Default values include: Calibration values, Conductivity mode, ºC, MTC, APO and RENEW off    341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
  • Page 5: Orp Calibration

    pH Calibration (1, 2, or 3 points)  A two point calibration with a buffer of 7 plus 4 or 10 (whichever is nearest to the expected  sample value) is always recommended. A one point calibration (choose the value closest to the  expected sample value) or a three point calibration is also valid. For best accuracy, always  calibrate at the sample temperature. Frequency of calibration is dependent on how often the  meter is used, the care of the electrode, and strength of the samples tested. Typically, it is  recommended that calibration be performed once a day; or before each use if the meter is not  used on a daily basis.  Connect the pH probe and place it into a pH7 buffer.  Press the POWER button to turn the meter on and press the MODE/CAL button until the PH  icon appears. (Note: disable the Auto Power Off feature to avoid an automatic power off  during calibration).  If the MTC icon appears next to the temperature display, press the ▼ or ▲ button to set  the temperature of the pH buffer. If the optional temperature probe is used, insert the  probe into the buffer solution.   Press and HOLD the MODE/CAL button until the display begins to flash ‘7.00’. The meter  automatically recognizes the buffer and calibrates itself to that value. At the end of the  calibration cycle, SA and End will briefly appear on the display and the meter will return to  the normal operating mode.  When a calibration is performed, the calibration icons  (pH10)  (pH7)  (pH4) will be  cleared (calibration data is not erased) and will be replaced when a successful calibration is  performed for each buffer within one power on cycle. These icons indicate what calibration  levels were last performed. They do not indicate how recently the calibration was  performed or if the calibrations are still valid.  Remove the electrode from the pH7 buffer, rinse in a rinse solution and insert it into the  pH4 or pH10 buffer solution.  Repeat step 4 for the second calibration point and then the third point if desired.  Note: If the output of the electrode falls outside predetermined limits, the meter will cancel the  calibration, indicate End, and flash the RENEW icon. This typically happens when the electrode  has aged and needs replacement.  Note: To avoid cross contamination, always rinse the electrode in a rinse solution, like distilled  water, when changing from one buffer or sample to the next buffer or sample.    ORP Calibration  The ORP electrode does not require calibration.    However, you can test the ORP probe’s accuracy using an ORP standard.    341350A-en-US_V1.3 8/15 contact: www.ponpe.com...
  • Page 6 Conductivity (TDS & Salt) Calibration  Conductivity accuracy verification should be performed on a periodic basis; once per month is  the recommended cycle for normal use. If calibration is required, a conductivity standard  solution must be obtained. The meter can be calibrated in any or all of the three ranges.  Standardizing solutions of 84µS/cm, 1413µS/cm or 12.88mS/cm (12,880µS/cm) are used for the  automatic calibration recognition procedure. No other calibration values are permitted.  Calibration is always done in conductivity mode. Since salinity and TDS values are calculated  from conductivity values, this procedure also calibrates the Salinity and TDS ranges.  Fill a sample cup with the standardizing solution.  Turn the meter ON and insert the electrode into the solution. Tap or move the electrode in  the sample to dislodge any air bubbles.  Press and hold the MODE/CAL button (approximately 2 seconds) until the main display  starts flashing.  The meter will automatically recognize and calibrate to the standardizing solution. At the  end of the calibration, the display will briefly indicate “SA”, “End” and then return to the  measurement mode.  Note:  The “SA” will not appear if the calibration fails.  The “range calibrated” alert will appear in the display for each range that is calibrated  during that power on cycle.  Low range, 84µS/cm  Medium range, 1413µS/cm  High range, 12.88mS/cm (12,880µS/cm)  Note: The meter allows for a 1, 2 or 3 point calibration. If calibration is done for more than one  point, the lowest value standard should be done first to obtain the best accuracy.      Temperature (pH and Conductivity) Offset Calibration  This procedure allows for error correction of the external temperature probe (pH) or the  conductivity probe’s built‐in temperature sensor.  Switch to pH or Conductivity (Salt/TDS) mode.  Place the temperature probe or conductivity cell in the sample and allow the temperature  reading to stabilize.  Press and hold the UNIT/SET button until the ºC or ºF icon begins flashing.  Adjust the ▼ or ▲ buttons to set the display to indicate the known temperature of the  sample.  Momentarily press the UNIT/SET button to save the change and return to the measurement  mode.    341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
  • Page 7 pH Troubleshooting Chart  Symptom  Cause  Recommended Solution  Long response  Clogged Junction  Soak in 4.07 M KCL @ 60 C for 30  time or reading  minutes  drift  Oil, paint, dyes, suspended solids on  Rinse electrode alternately with  sensor  materials solvent then buffer 7.00  Dry Bulb  Long term storage without wetting   Soak electrode tip in wetting cap filled  with 1ml 7.00 buffer for 24 to 48 hours  Static Charge  Wiping electrodes  Rinse electrode in 7.0 buffer and blot.  Do no wipe electrode.  Same readings in  Cracked or broken bulb  Replace electrode. Use bulb guard.  different buffers  Avoid plunging electrode to bottom of  and samples  container and spinning bars. A wetting  cap will protect bulb between  measurements.  Erratic LCD  Samples have low ionic strength  For each 50 ml of sample add 1 drop  display  (lacks salt); e.g. distilled, de‐ionized,  (50uL) of SAT.KCL No alteration in pH  boiled, lake water (high pressure)  will occur by inert KCL.   ...
  • Page 8: Specifications

    SPECIFICATIONS    Ranges  Resolution  Accuracy  pH  0.00 to 14.00pH  0.01pH  ± 0.02pH  Conductivity  0.1µS  0.0 to 200.0µS  1µS  200 to 2000µS  ± 2% FS  2.00 to 20.00mS  0.01mS  TDS  0.0 to 134.0ppm  0.1ppm  134 to 1340ppm  1ppm  (calculated from Conductivity)  1.34 to 13.40ppt  0.01ppt  Salinity  0.0 to 100.0ppm  0.1ppm  (calculated from Conductivity)  100 to 1000ppm  1ppm  1.00 to 10.00ppt  0.01ppt  ORP  ‐1500 to 1500mV  1mV  ± 3mV  Temperature  32 to 194ºF  0.1º ≤ 99.9º  ± 2ºF/1ºC (meter + probe) ...
  • Page 9: Warranty

    Warranty  FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for three  years from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to  return the instrument for service during or beyond the warranty period, contact the Customer Service Department for  authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued  before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to  prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper  wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc.  specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any  direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The  warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied.  Calibration, Repair, and Customer Care Services  FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we  sell. NIST certification for most products is also provided. Call the Customer Service Department for  information on calibration services available for this product. Annual calibrations should be  performed to verify meter performance and accuracy. Technical support and general customer  service is also provided, refer to the contact information provided below.  Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800  Technical Support: Option 3; E‐mail: support@extech.com  Repair & Returns: Option 4; E‐mail: repair@extech.com  Product specifications are subject to change without notice  Please visit our website for the most up‐to‐date information  www.extech.com  FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA   ISO 9001 Certified    Copyright © 2013‐2015 FLIR Systems, Inc.  All rights reserved including the right of reproduction in whole or in part in any form  www.extech.com  341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
  • Page 10: Garantie

    Garantie  FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant  trois annees à partir de la date d’envoi (une garantie limitée de six mois s’applique aux capteurs et aux câbles). Si le renvoi de  l’appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour  autorisation. Pour obtenir les coordonnées, visitez le site Web suivant : www.extech.com. Un numéro d’autorisation de retour  (AR) doit être délivré avant tout retour de produit. L’expéditeur prend à sa charge les frais d’expédition, le fret, l’assurance et  l’emballage correct de l’appareil afin de prévenir toute détérioration durant le transport. Cette garantie ne s’applique pas aux  dommages imputables à l’utilisateur, tels que l’usage impropre ou abusif, un mauvais câblage, une utilisation non conforme aux  spécifications, un entretien ou une réparation incorrecte, ou toute modification non autorisée. FLIR Systems, Inc. déclinera  spécifiquement toute garantie ou qualité marchande ou aptitude à l’emploi prévu, et ne sera en aucun cas tenu responsable  pour tout dommage conséquent, direct, indirect ou accidentel. La responsabilité totale de FLIR est limitée à la réparation ou au  remplacement du produit. La garantie définie ci‐dessus est inclusive et aucune autre garantie, écrite ou orale, n’est exprimée ou    implicite. Calibrage, réparation et services après‐vente  FLIR Systems, Inc. offre des services de calibrage et de réparation pour les produits Extech  Instruments que nous commercialisons. Nous fournissons également une certification NIST pour la  plupart des produits. Contactez notre service client pour toute information sur les services de  calibrage disponibles pour ce produit. Un calibrage doit être effectué chaque année pour vérifier  les performances et la précision du mètre. Nous offrons également une assistance technique et un  service à la clientèle. Veuillez vous reporter aux coordonnées fournies ci‐dessous.  Lignes d’assistance: États‐Unis (877) 439‐8324; international: +1 (603) 324‐7800  Service d’assistance technique : Option 3 ; E‐mail : support@extech.com  Réparations et retours : Option 4 ; E‐mail : repair@extech.com  Les spécifications produit sont sujettes à modifications sans préavis.  Pour les toutes dernières informations, veuillez visiter notre site Web.  www.extech.com  FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA  Certifié ISO 9001    Copyright © 2013‐2015 FLIR Systems, Inc.  Tous droits réservés, y compris la reproduction partielle ou totale sous quelque forme que ce soit.  www.extech.com  341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
  • Page 11 Garantía  FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra  durante tres años a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si  fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de  Servicio a Clientes para obtener autorización.  Visite www.extech.com para Información de contacto. Se debe expedir un número  de Autorización de Devolución (AD) antes de regresar cualquier producto. El remitente es responsable de los gastos de  embarque, flete, seguro y empaque apropiado para prevenir daños en tránsito. Esta garantía no se aplica a defectos resultantes  de las acciones del usuario como el mal uso, alambrado equivocado, operación fuera de las especificaciones, mantenimiento o  reparación inadecuada o modificación no autorizada. FLIR Systems, Inc., rechaza específicamente cualesquier garantías  implícitas o factibilidad de comercialización o idoneidad para cualquier propósito determinado y no será responsable por  cualesquier daños directos, indirectos, incidentales o consecuentes. La responsabilidad total de FLIR está limitada a la  reparación o reemplazo del producto.  La garantía precedente es inclusiva y no hay otra garantía ya sea escrita u oral, expresa o  implícita.  Servicios de calibración, reparación y atención a clientes  FLIR Systems, Inc., ofrece servicios de reparación y calibración para los productos que vendemos  de Extech Instruments. Además ofrecemos certificación NIST para la mayoría de los productos.  Llame al Departamento de Servicio al Cliente para solicitar información de calibración para este  producto. Para verificar el funcionamiento y precisión se debe realizar la calibración anual. Además  se provee Soporte Técnico y servicios generales al cliente, consulte la información de contacto en  seguida.  Líneas de soporte: EE.UU. (877) 439‐8324; Internacional: +1 (603) 324‐7800  Soporte Técnico Opción 3; correo electrónico: support@extech.com  Reparación / Devoluciones: Opción 4; correo electrónico: repair@extech.com  Las especificaciones del producto están sujetas a cambios sin aviso  Por favor visite nuestra página en Internet para la información más actualizada  www.extech.com  FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA  Certificado ISO 9001  Copyright © 2013‐2015 FLIR Systems, Inc.    Reservados todos los derechos, incluyendo el derecho de reproducción total o parcial en cualquier medio www.extech.com    341350A-en-US_V1.3 8/15 contact: www.ponpe.com sale@ponpe.com...
