- Page 1 User Manual Power Analyzer Model 380801 Power Analyzer Datalogger Model 380803 GlobalTestSupply www. .com d Quality Products Online at: sales@GlobalTestSupply.c...

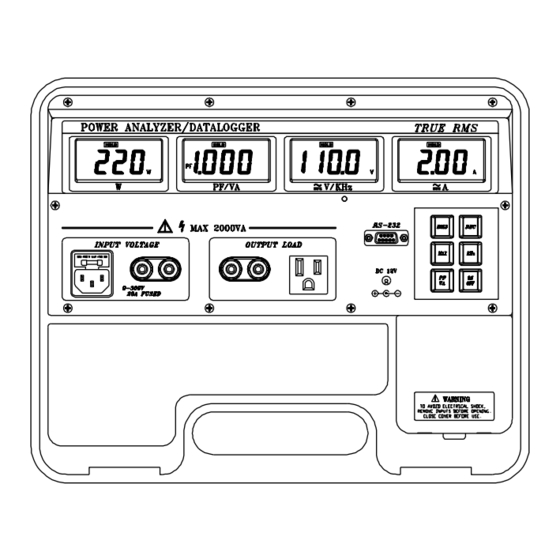

- Page 2 Introduction This device offers the following features: Convenient front panel plug-in and testing Four displays for Watts, PF/VA, V/KHz, Amperes True power, true RMS for AC Voltage (V) and Current (A) Datalogger stores over 1000 readings (Model 380803) ...
-
Page 3: Basic Operation
Basic Operation Warning: If a power source of 220V is connected to the input voltage terminal/receptacle, do not connect a110V device to the output load terminal/receptacle. Using Receptacles 1. Plug one end of the power cord into the input receptacle and plug the other end into the wall outlet. - Page 4 Using Terminals 1. Plug one end of the power leads into the input voltage terminal (left) and connect the other end of the test leads to the power source. 2. Plug the device power leads into the output load terminals. W, PF, V, and A will display for the device under test.
- Page 5 Using a Current Transformer Warning: Only personnel well trained in the principles of Current Transformers (CT) should attempt this test connection. When connecting a CT, follow the wiring diagrams and instructions below. 1. Connect the CT’s k terminal (entering the CT) to the power line that passes through the CT, and connect this k terminal to the input voltage black terminal (ground).
- Page 6 PC Interface for Data Acquisition & Datalogging Features Data Acquisition Models 380801 and 380803 can be connected to a PC where readings can be logged in real-time as they are taken. Transferred reading data can be viewed, plotted, statistically analyzed, printed, saved, and imported in spreadsheet, database, word processing, and other software programs.
-
Page 7: Glossary Of Terms
Glossary of Terms True Watt Power Factor True RMS Voltage True RMS Ampere Phase angle Time difference between V and A calculated by cos -1 (Power Factor) Apparent Power (V * A) – W Reactive Power (SQRT [VA Equivalent current (through equivalent resistance) Equivalent resistance Equivalent current (through equivalent inductance) Equivalent impedance of equivalent inductance... - Page 8 Measurement of 3-Phase 3-Wire Power Using One Power Analyzer Measure W first (RST phases must be correctly identified) Connect the R-phase of the power source to the black terminal of the input voltage Connect the S-phase of the power source to the red terminal of the input voltage Plug the R-phase of the device to be tested to the black terminal...
- Page 9 Using Two Power Analyzers Measure W and W (RST phases must be correctly identified) Connect the R-phase of the power source to the black terminal of the input voltage of power analyzer 1. Connect the S-phase of the power source to the red terminal of the input voltage of power analyzer 1.
- Page 10 Using Current Transformers (CT) with 2 Power Analyzers Measure W and W (RST phases must be correctly identified) 1. Connect the R-Phase to the black terminal of the input voltage of power analyzer 1. 2. Connect the S-phase to the red terminal of the input voltage of power analyzer 1.
- Page 11 Specifications WATT (Auto Range, AC+DC, Crest Factor < 5) Range Resolution Accuracy Input 200W 0.1W ±(0.9% reading + 5digts) 0-300V, 0-20A, (50/60Hz) PF=0.5 to 1 2000W ±(5% reading + 9digts) (40 to 400Hz) VOLTAGE (True RMS, Auto Range, AC+DC, Crest Factor < 5) Range Resolution Accuracy...
