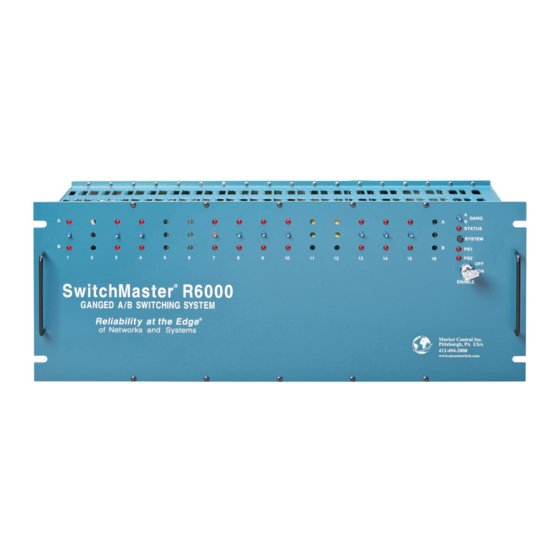

Compact Ganged A/B & ON/OFF Switching System
R6000 AC POWER SWITCH – 120 VAC
R6000 AC POWER SWITCH – 240 VAC
R6000 AC POWER SWITCH WITH NETWORKED REPORTING – 120 VAC
R6000 AC POWER SWITCH WITH NETWORKED REPORTING – 240 VAC
®
Market Central
and SecurePower
Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205
Phone: (412) 494-2800, Fax: (412) 494-5550,
Copyright 2010
Market Central
February 2002
®
R6000 Series
Part Numbers
®
are registered trademarks of Market Central, Inc. All rights reserved.
www.secureswitch.com
©
. Market Central, Inc. All rights Reserved.
www.secureswitch.com
CAGE 1BGJ7
50-00751
50-00758
50-00756
50-00757
CAGE Code 1BGJ7
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Market Central SecurePower R6000 Series
Summary of Contents for Market Central SecurePower R6000 Series
- Page 1 R6000 AC POWER SWITCH WITH NETWORKED REPORTING – 240 VAC 50-00757 ® ® Market Central and SecurePower are registered trademarks of Market Central, Inc. All rights reserved. Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205 Phone: (412) 494-2800, Fax: (412) 494-5550, www.secureswitch.com CAGE Code 1BGJ7 ©...
- Page 2 Market Central, Inc. Contents Chapter Page 1. Specifications 2. Introduction 3. Configuration 4. Installation 5. Operation 6. Troubleshooting 1. Specifications Connectors: (1) – IEC male for AC power entry, (2) – IEC female for AC power output Indicators: (2) – active port LED indicators Switches: (1) –...
- Page 3 Market Central, Inc. 2. Introduction The R6000 AC Power Switch card is designed for use in the R6000 Automatic Switching System. The AC Power Switch Card switches AC power from a common AC input connector to one of two AC output connectors. The unit uses a low power, latching relay to switch the AC input voltage to the AC coil of the power relays.
- Page 4 Market Central, Inc. On AC Power Switch cards with Networked Reporting, switch SW1 and positions 1 through 3 of switch SW2 are used to set the cards address. Valid card addresses range from 0x001 to 0x7FF hex (1 to 2047 decimal). Although the switch can be set to address 0x000, this address is invalid and must not be used.
- Page 5 Market Central, Inc. 4. Installation WARNING! The AC Power Switch card presents a risk of electrical shock. Insulators have been installed to cover high voltage circuits, to minimize the risk of electrical shock. DO NOT place objects through card guide openings in the enclosure top and bottom.
- Page 6 If any failure to conform to this warranty becomes apparent during a period of one (1) year after date of sale, Market Central shall, upon prompt, written notice and compliance by the customer with such instructions as it shall give with respect to the return of defective products or parts, correct such no n-conformity by repair or replacement of the defective part of parts.
