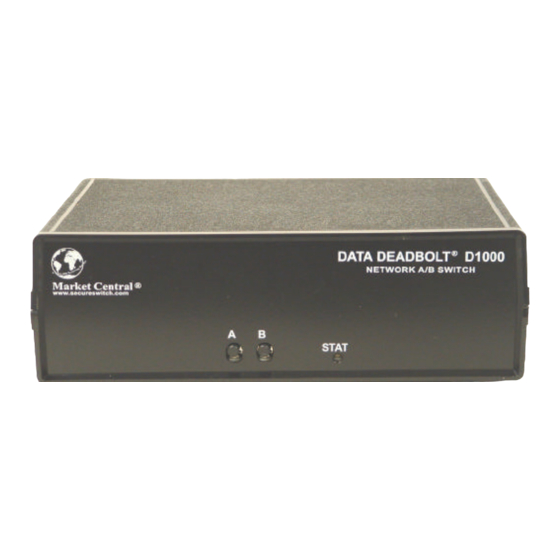

Market Central Data Deadbolt D1000 Series User Manual

Layer-1 a/b switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Market Central
www.secureswitch.com
500 Business Center Drive Pittsburgh, PA 15205 USA
412.494.2800
CAGE 1BGJ7
D1000 SERIES LAYER-1 A/B SWITCH

USERS MANUAL

November 2017
Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205
Phone: (412) 494-2800, Fax: (412) 494-5550,
www.secureswitch.com
CAGE Code 1BGJ7
©
Copyright
2017. Market Central, Inc. All rights Reserved.
®
®
Market Central
and SwitchMaster
are registered trademarks of Market Central, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Data Deadbolt D1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Market Central Data Deadbolt D1000 Series

Summary of Contents for Market Central Data Deadbolt D1000 Series

  • Page 1: Users Manual

    500 Business Center Drive Pittsburgh, PA 15205 USA 412.494.2800 CAGE 1BGJ7 D1000 SERIES LAYER-1 A/B SWITCH USERS MANUAL November 2017 Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205 Phone: (412) 494-2800, Fax: (412) 494-5550, www.secureswitch.com CAGE Code 1BGJ7 © Copyright 2017.
  • Page 2 Market Central, Inc. D1000 Models and Part Numbers D1000 CAT 6 A/B NETWORK SWITCH (LATCHING) 6100900 D1000 CAT 6 A/B NETWORK SWITCH (NON LATCHING) 6100901 D1000 CAT 6 A/B NETWORK SWITCH w/SERIAL CONTROL (LATCHING) 6100902 D1000 CAT 6 A/B NETWORK SWITCH w/SERIAL CONTROL (NON LATCHING)

  • Page 3: Specifications

    Market Central, Inc. FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has...
  • Page 4 Market Central, Inc. Output Status Relay Contact Rating: 30 VDC, 1A maximum (resistive) Data Rates: switch ports on all models are transparent to data rates, formats & protocols RJ45 CAT6 models support 10/100/1000 and 10G Ethernet DB9 models support data rates in excess of 10 Mbps...

  • Page 5: Installation

    Market Central, Inc. 3. Configuration There are no user configurable settings on the D1000 A/B Switch models for basic operation. There are some parameters related to Ethernet remote access / control operations which are configurable through the serial RS232 port. These settings are described later in this manual.

  • Page 6: Operation

    Market Central, Inc. 5. Operation When power is applied to the D1000 A/B Switch, one of the LED switch position indicators (A or B) on the front of the unit will illuminate to show the connection state of the switch. Indicator A lights when the switch is in position A, and Indicator B lights when the switch is in position B.

  • Page 7: Ethernet Switching

    Market Central, Inc. character. For systems where the console port is being commanded by software, the software should wait for this prompt character before sending each and every command to the D1000 A/B Switch. All commands are case insensitive and can be entered in upper or lower case. Note however, that password parameters are case sensitive.

  • Page 8: Automatic Switching

    Market Central, Inc. The D1000 also has the ability to issue either SNMP traps, or UDP syslog messages. These messages can be sent to one or more network administrator systems to provide notification when the D1000 changes connection states either automatically (auto bypass switching or auto recovery switching) or via manual control (front panel toggle switch or commands received on the RS232 or Ethernet interfaces), and when certain other events occur.
  • Page 9 Market Central, Inc. Network Connections for Auto Failover & Manual Recovery (FAILOVER mode) OR TOGGLE mode Note: The D1000 monitors the WAN connections by PINGing the far side router thru the primary WAN link. In FAILOVER mode, if the primary WAN link fails, the D1000 auto switches to the backup WAN link. Auto recovery is disabled in this configuration to prevent flapping.
  • Page 10 Market Central, Inc. 6. Ethernet Network Interface Setup (Ethernet remote control capable models) To perform initial setup of the network management interface on the D1000 you will need a serial terminal capable of 9600 baud, no parity, 8 data bits, and 1 stop bit. Connect this terminal to the DB9 console connector on the D1000.

  • Page 11: Console Commands

    Market Central, Inc. After the system reinitializes, you will again be greeted by the sign-on message as before. At this time you can connect an Ethernet cable to the 10Base-T network port on the D1000 A/B Switch and to an available port on your Ethernet switch or router.
  • Page 12 Market Central, Inc. SET SYSTEM A[B] Sets the system to position A or B. SET IPADDRESS X.X.X.X GET IPADDRESS Set or display the current IP address of the network module. Any change will not become permanent until a SAVE and RESET operation sequence is performed.
  • Page 13 Market Central, Inc. SET WEBPORT N GET WEBPORT Set or display the current web port number. Changing the web port number from the default can be used to provide an additional level of security. Any change will not become permanent until a SAVE and RESET operation sequence is performed.
  • Page 14 Market Central, Inc. SET MONITORFAILCOUNT [N] GET MONITORFAILCOUNT Set or display the Monitor Fail Count. In FAILOVER mode, this is the number of successive PING attempts that must fail before the D1000 automatically switches to the “failover” or “bypass” connection state (port C connected to port A).
  • Page 15 Market Central, Inc. SET ADMINIP N X.X.X.X Set administrator N (1-8) IP address. Up to 8 different administrator IP addresses can be entered. To remove an entry from the list, set the IP address to 0.0.0.0. If all 8 ADMIN IP addresses are 0.0.0.0 (no ADMIN IP addresses are configured) the D1000 will allow access via the Ethernet interface from any IP address, subject to the existing password and enable flags for each interface.
  • Page 16 Market Central, Inc. HELP Displays a list of console commands. CONSOLE COMMANDS: ALL (display all parameters) VERSION (display software versions) GET[SET] SYSTEM [A/B] GET[SET] IPADDRESS [X.X.X.X] GET[SET] SUBNETMASK [X.X.X.X] GET[SET] GATEWAY [X.X.X.X] GET[SET] PINGREPLY [ON/OFF] GET[SET] SNMPENABLE [ON/OFF] GET[SET] READCOMMUNITYNAME [string]...

  • Page 17: Command Console

    Market Central, Inc. 8. Web Interface ( Ethernet remote control capable models The network module installed in Ethernet remote control capable models of the D1000 also provides access to console commands through a web browser interface. When enabled (see SET WEBENABLE command) entering the D1000’s IP address (index.html) in your web browser’s URL address line will present a log on page for the...
  • Page 18 Market Central, Inc. At this point you may enter any valid command into the text box and click “Send Command” to execute. The following is an example result of the GET SYSTEM command. Web Interface Version 1.0 Copyright (c) 2016.

  • Page 19: Snmp Mib Path Summary

    [private] – 1.3.6.1.4 [enterprises] – 1.3.6.1.4.1 [mctech] – 1.3.6.1.4.1.9477 [mctech] – 1.3.6.1.4.1.9477 Market Central, Inc. private enterprise number [mcAgent] – 1.3.6.1.4.1.9477.1 Market Central, Inc. SNMP Agent The following is a list of the SNMP variables corresponding to: D1000 A/B Switch.

  • Page 20: Traps Summary

    Market Central, Inc. [mcIpRequester] – 1.3.6.1.4.1.9477.2 The IP address of the remote entity that last accessed branch 1.3.6.1.4.1.9477.1. This variable can be used to identify the last IP address to access any mcAgent variable. It is returned in the authenticationFailure message.

  • Page 21: Syslog Messages

    Market Central, Inc. 11. Syslog Messages The D1000 A/B Switch can be configured to issue a syslog message rather than an SNMP trap when certain events occur. To configure the D1000 A/B Switch to issue syslog messages, you must use the “SET ALERTTYPE”...
  • Page 22 If any alleged failure to conform to this warranty shall arise during a period of one (1) year from date of sale, Market Central shall, upon prompt, written notice and compliance by Customer with such instructions as Market Central shall provide with respect to the return of allegedly defective products or parts, correct such non-conformity by repair or replacement, or by the refund of the purchase price or applicable portion thereof, at Market Central’s sole discretion.
