Market Central
www.secureswitch.com
19 North Main Street, Houston, PA 15342 USA
412.494.2800
CAGE 1BGJ7
®

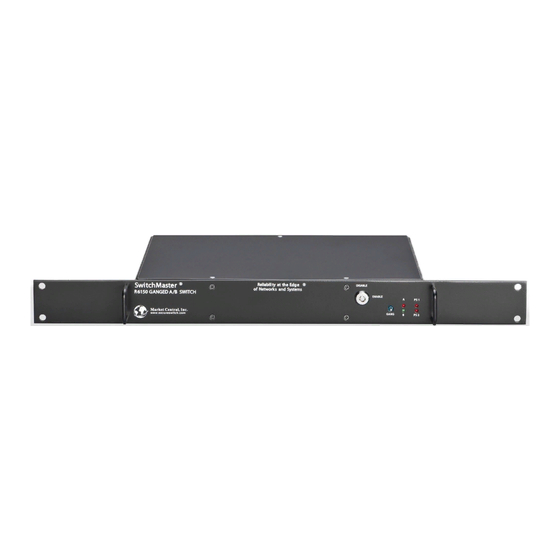

SwitchMaster
R6150 Series
Compact Ganged A/B Switching System
February 2017
5101350-NL
NON-LATCHING R6150 5-Port RJ45 CAT-5 A/B Switch
includes one external power supply module
nd
5001351
use a 2
supply for redundant power
Optional External Power Supply Module
applications
(CE compliant versions are also available – use part numbers 6101350-NL and 6001351)
Market Central Inc., 19 North Main Street, Houston, PA 15342
Phone: (412) 494-2800, Fax: (412) 494-5550,
www.secureswitch.com
CAGE Code 1BGJ7
©
Copyright
2017. Market Central, Inc. All rights Reserved.
®
®
Market Central
and SwitchMaster
are registered trademarks of Market Central, Inc.
Advertisement
Table of Contents
Related Manuals for Market Central SwitchMaster R6150 Series
Summary of Contents for Market Central SwitchMaster R6150 Series
- Page 1 Optional External Power Supply Module applications (CE compliant versions are also available – use part numbers 6101350-NL and 6001351) Market Central Inc., 19 North Main Street, Houston, PA 15342 Phone: (412) 494-2800, Fax: (412) 494-5550, www.secureswitch.com CAGE Code 1BGJ7 ©...
- Page 2 Market Central, Inc. Federal Communications Commission (FCC) Statement This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 3 Market Central, Inc. 2. Introduction The R6150 Ganged A/B Switching System is a 1U high 19 inch rack style gang switch that supports 5 RJ45 switch ports. The 5 RJ45 switch ports are ganged, meaning that they are controlled together. They may be controlled with the front panel toggle switch, or via a remote external toggle switch or external relay contacts.
- Page 4 Market Central, Inc. 3. Configuration 3.1 Status / Control Port Figure 3.1.1 – RJ45 Status and Control Port Pin Number Diagram Table 3.1.2 – RJ45 Status and Control Port Pin Assignment Signal Name Signal Direction Status Relay Common Contact Output...
- Page 5 Market Central, Inc. 4.2. Adding a rack to an installed multi-rack system The following procedure was developed to prevent inadvertent system switching when adding a rack to an installed system of daisy-chained racks. 4.2.1 Remove power from all racks in the existing multi-rack system. The NON-LATCHING R6150 Ganged A/B Switching System uses non-latching relays, so the A ports will be connected to the Common ports when power is removed.
- Page 6 If any alleged failure to conform to this warranty shall arise during a period of one (1) year from date of sale, Market Central shall, upon prompt, written notice and compliance by Customer with such instructions as Market Central shall provide with respect to the return of allegedly defective products or parts, correct such non-conformity by repair or replacement, or by the refund of the purchase price or applicable portion thereof, at Market Central’s sole discretion.
