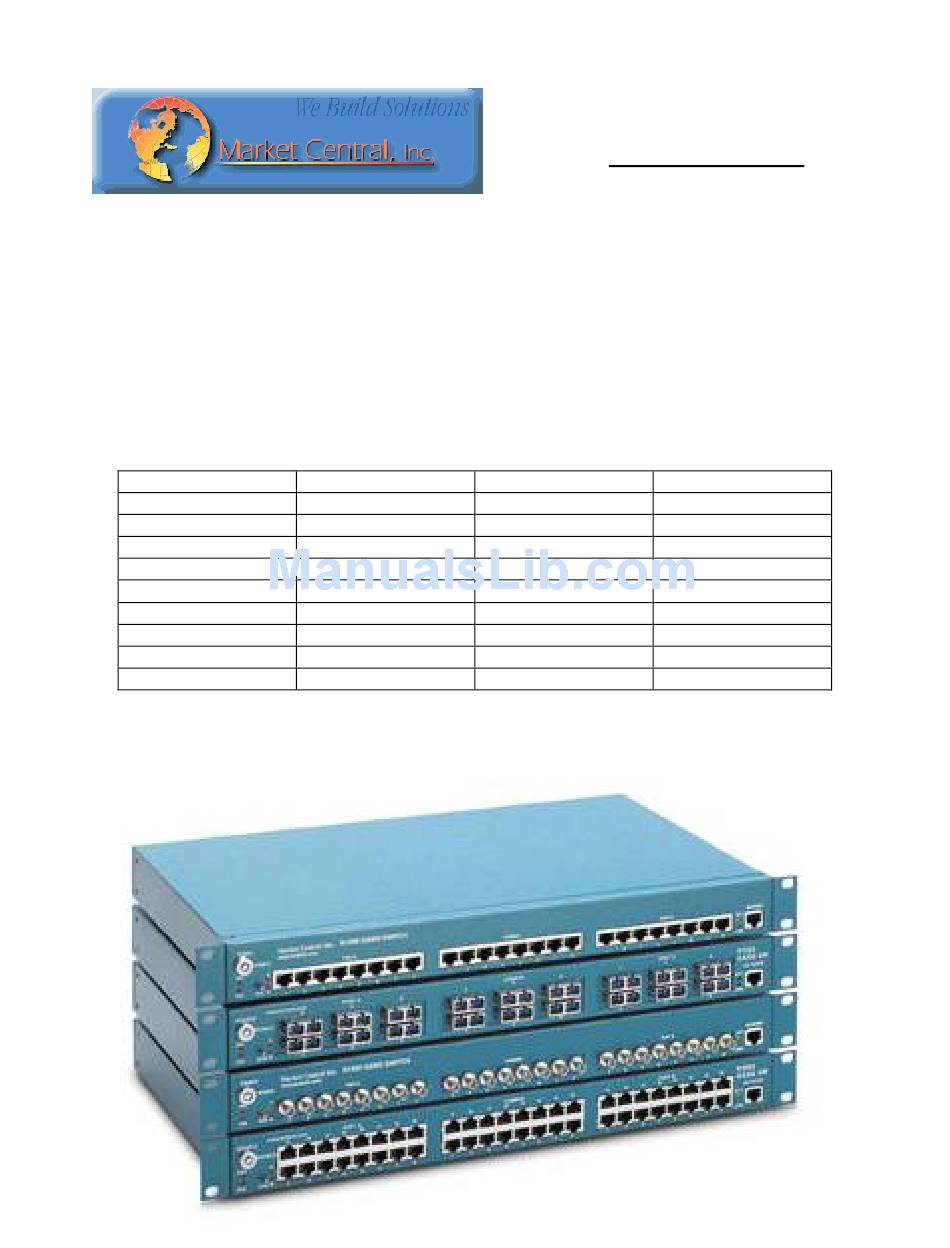

Market Central R1000-NAC-8 User Manual

R1000 nbs network backup switch & r1000 nac network access controller switching system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
500 Business Center Drive Pittsburgh, PA 15205 USA
412.494.2800
R1000 NBS - Network Backup Switch
R1000 NAC – Network Access Controller
R1000-NAC-8
R1000-NAC-16
R1000-NAC-8R
R1000-NAC-16R
R1000-NBS-8
R1000-NBS-16
R1000-NBS-8R
R1000-NBS-16R
R1000-NAC-4F (ST)
R1000-NAC-6F (ST)
* R designates SNMP capable models (i.e. R1000-NBS-8R), for "remote accessible via Ethernet".
Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205
Phone: (412) 494-2800, Fax: (412) 494-5550,
© Copyright 2003. Market Central, Inc. All rights Reserved.
SWITCHING SYSTEM
USERS MANUAL
Jan 2008
Part Numbers
5101000
R1000-NAC-4FR (ST)
5101001
R1000-NAC-6FR (ST)
5101002
R1000-NBS-4F (ST)
5101003
R1000-NBS-6F (ST)
5101020
R1000-NBS-4FR (ST)
5101021
R1000-NBS-6FR (ST)
5101022
R1000-NBS-4F (SC)
5101023
R1000-NBS-6F (SC)
5101010
R1000-NBS-4FR (SC)
5101011
R1000-NBS-6FR (SC)
www.mctech.com
Market Central
www.secureswitch.com
CAGE 1BGJ7
5101012
5101013
5101030
5101031
5101032
5101033
5101034
5101035
5101036
5101037
CAGE Code 1BGJ7
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1000-NAC-8 and is the answer not in the manual?

Questions and answers

Related Manuals for Market Central R1000-NAC-8

Summary of Contents for Market Central R1000-NAC-8

  • Page 1 5101011 R1000-NBS-6FR (SC) 5101037 * R designates SNMP capable models (i.e. R1000-NBS-8R), for “remote accessible via Ethernet”. Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205 Phone: (412) 494-2800, Fax: (412) 494-5550, www.mctech.com CAGE Code 1BGJ7 © Copyright 2003. Market Central, Inc. All rights Reserved.

  • Page 2: Table Of Contents

    Market Central, Inc. Contents Chapter Page 1. Specifications 2. Introduction 3. Configuration 4. Installation 5. Operation 6. Network Setup 7. Console Commands 8. Web Interface 9. SNMP MIB Path Summary 1. Specifications Connectors: A/B Switches: Shielded RJ45 – 16, 24, 32, or 48 depending on model and size Fiber optic ST or SC –...

  • Page 3: Introduction

    Market Central, Inc. 2. Introduction The R1000 Network Backup Switch and Network Access Controller connect port A or port B to COMMON, through latching relays (in the case of the R1000-NAC models, the connection is more appropriately designated ON or OFF, as they are 2 port switches, COMMON to port B (ON) Common to port A (OFF). Since the relays are latching, the state of connections will be maintained with power off.

  • Page 4: Operation

    Market Central, Inc. 3. Connect a 12VDC power supply to either power supply connector. If you are using redundant power supplies, connect one to each power supply connector. The indicators, PS1 and PS2, on the front of the unit will indicate a power supply energized.
  • Page 5 Market Central, Inc. before sending each and every command to the R1000. It is possible to switch any or all of the ports to either A or B from serial commands. It is also possible to query the position of any or all of the ports from serial commands. Serial command functionality is NOT affected by the position of the front panel key switch.

  • Page 6: Network Setup

    Apply power to the system. After this process is complete you will see a sign-on message displayed on the serial console, i.e. R1000 Network Agent Version 2.6c Jan 2009 Copyright (C) 2006 Market Central, Inc. All rights reserved www.mctech.com System starting ...

  • Page 7: Console Commands

    Market Central, Inc. 7. Console Commands (SNMP network manageable units only) The following commands are available from the console prompt of the unit. All commands are case insensitive, although several variable parameters are case sensitive (read/write community names and web password). GET, SET, SYSTEM, and PORT can all be abbreviated by the first letter of the command.
  • Page 8 Market Central, Inc. GET PORT N Displays the status of switch N (1-16). The response will be “A” or “B”. Port 4: B SET PORT N A[B] Sets the addressed switch N (1-16) to position A or B. SET IPADDRESS X.X.X.X GET IPADDRESS Set or display the current IP address of the network module.
  • Page 9 Market Central, Inc. SET TELNETENABLE ON[OFF] GET TELNETENABLE Set or display the current state of telnet based access. The network module will not accept any telnet requests when telnet enable is off. Any change will not become permanent until a SAVE and RESET operation sequence is performed.
  • Page 10 Market Central, Inc. GET MANAGER Display all SNMP manager IP addresses. SAVE Save settings for next startup. All settings are stored in NV memory and restored upon power on. Any change will not become permanent until a SAVE and RESET operation sequence is performed.

  • Page 11: Web Interface

    Note: If using a pop up blocker on your web browser, be sure to allow pop ups from the IP address of the R1000, otherwise you cold experience trouble receiving a response through the interface. Web Interface Version 1.0 Copyright (c) 2003, Market Central Inc. All rights reserved. www.mctech.com...
  • Page 12 Market Central, Inc. Subnet Mask: 255.255.255.0 Gateway IP Address: 192.168.1.1 Web Enable: Enabled Web Password: mctech Web Timeout: 300 Web Port: 80 Telnet Enable: Enabled Telnet Password: dataman Telnet Timeout: 80 Telnet Port: 23 Read Community Name: public Write Community Name: private Authentication Trap: Disabled R1000: 2.6c Jan 2009, R1000 Rev.

  • Page 13: Snmp Mib Path Summary

    [private] – 1.3.6.1.4 [enterprises] – 1.3.6.1.4.1 [mctech] – 1.3.6.1.4.1.9477 [mctech] – 1.3.6.1.4.1.9477 Market Central, Inc. private enterprise number [mcAgent] – 1.3.6.1.4.1.9477.1 Market Central, Inc. SNMP Agent The following is a list of the A/B Switch System SNMP variables corresponding to: R1000 NBS/NAC Switch [r1000] –...
  • Page 14 Market Central, Inc. R1000 Switch SNMP Variable Definitions: [r1000GangControl] – 1.3.6.1.4.1.9477.1.6.1 R1000 Switch gang control. This variable is used to control all channels in a unit. A unit may contain 4, 6, 8, or 16 channels depending on model. On a “GET” of this variable, the unit will respond as follows.
  • Page 15 Market Central, Inc. R1000 Switch System SNMP Trap Definitions: All traps carry the sysObjectId (1.3.6.1.2.1.1.2) variable, whose value is 1.3.6.1.4.1.9477.1. coldStart – generic trap 0 This trap is sent during a power on initialization and reboot of the SNMP controller. It carries the sysDescr variable (1.3.6.1.2.1.1.1).
  • Page 16 If any failure to conform to this warranty becomes apparent during a period of one year after date of sale, Market Central shall, upon prompt, written notice and compliance by the customer with such instructions as it shall give with respect to the return of defective products or parts, correct such non-conformity by repair or replacement of the defective part of parts.
