SwitchMaster

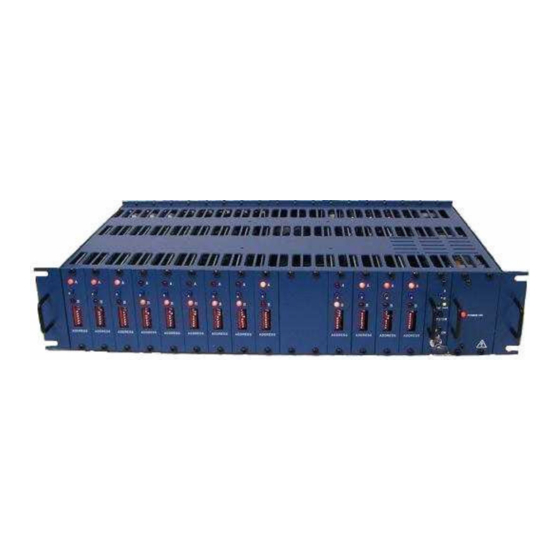

Ultra-Compact Ganged A/B Switching System
2U HIGH, 19" RACK MOUNT CHASSIS
CONTROLLER CARD – BASIC RS232/MANUAL (FRONT & REAR CARD SET)
CONTROLLER CARD – SNMP/ ETHERNET SUPPORT (FRONT & REAR CARD SET)
CONTROLLER CARD – SNMP EXPANSION (FRONT & REAR CARD SET)
EXTERNAL P/S ADAPTER CARD (SINGLE SLOT)
DC POWER SUPPLY CARDS (-48 VOLT) (FRONT & REAR SET)
SINGLE DC OUTPUT POWER SUPPLY CARD
POWER SUPPLY CARD (INCLUDES 2 EXTERNAL AC/DC POWER MODULES 5000761)
EXTERNAL AC/DC POWER SUPPLY MODULE
RJ45 A/B SWITCH CARD, LATCHING - SUPPORTS UP TO 1 GbE
RJ45 (10 PIN) A/B SWITCH CARD, LATCHING - SUPPORTS UP TO 1 GbE
CAT6 RJ45 A/B SWITCH CARD, LATCHING - SUPPORTS UP TO 10 GbE
CAT6 RJ45 A/B SWITCH CARD, NON-LATCHING - SUPPORTS UP TO 10 GbE
MULTIMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, LATCHING
MULTIMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, LATCHING
MULTIMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, PSEUDO NON-LATCHING
MULTIMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, PSEUDO NON-LATCHING
MULTIMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, NON-LATCHING
MULTIMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, NON-LATCHING
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, LATCHING
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, LATCHING
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, PSEUDO NON-LATCHING 5000874
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, PSEUDO NON-LATCHING 5000875
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, ST CONNECTORS, NON-LATCHING
SINGLEMODE FIBER OPTIC A/B SWITCH CARD, SC CONNECTORS, NON-LATCHING
DB9 A/B SWITCH CARD, LATCHING
DB15 A/B SWITCH CARD, LATCHING
DB25 A/B SWITCH CARD, LATCHING
75 OHM VIDEO F-TYPE A/B SWITCH CARD, LATCHING
75 OHM VIDEO F-TYPE A/B SWITCH CARD, NON-LATCHING
RS232/DB25 SIGNAL MONITORING A/B SWITCH CARD, LATCHING
RS530/DB25 SIGNAL MONITORING A/B SWITCH CARD, LATCHING
BLANK FRONT/REAR PANEL (2 REQUIRED PER EMPTY SLOT )
(lead-free versions of the above items are also available by changing the part # from 5xxxxxx to 6xxxxxx)
Fiber Optic switches are also available with FC or LC connectors.
Copyright
®
Market Central
and SwitchMaster
Market Central
®
R5000 Series
NOVEMBER 2020
©
2018. Market Central, Inc. All rights Reserved.
®
are registered trademarks of Market Central, Inc.
www.secureswitch.com
CAGE 1BGJ7
5000722
5000764
5000765
5000790
5000752
5000767
5000754
5100740
6000761
5000725
5000807
5000782
5000786
5000737
5000772
5000735
5000726
5000803
5000804
5000872
5000873
5000808
5000882
5000736
5000729
5000730
5000795
5000796
5000856
5000857
5000766
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the SwitchMaster R5000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Market Central SwitchMaster R5000 Series

Summary of Contents for Market Central SwitchMaster R5000 Series

  • Page 1 (lead-free versions of the above items are also available by changing the part # from 5xxxxxx to 6xxxxxx) Fiber Optic switches are also available with FC or LC connectors. © Copyright 2018. Market Central, Inc. All rights Reserved. ® ® Market Central and SwitchMaster are registered trademarks of Market Central, Inc.

  • Page 2: Specifications

    Market Central, Inc. 1. Specifications Connectors: RJ45 A/B SWITCH CARD – (3) RJ45 connectors (8 or 10 pin depending on model) CAT6 RJ45 A/B SWITCH CARD – (3) CAT6 RJ45 connectors FIBER OPTIC A/B SWITCH CARDS – (3) Duplex fiber optic SC or ST receptacles (FC and LC also available) DB9 A/B SWITCH CARD –...
  • Page 3 Market Central, Inc. Rack Size: RACK – 18 card slots, 3.5” H x 19” W x 12.5” D (including handles and connectors) RJ45 A/B SWITCH CARD – one slot (0.937 inches wide) CAT6 RJ45 A/B SWITCH CARD – one slot (0.937 inches wide) FIBER OPTIC A/B SWITCH CARDS –...
  • Page 4 Market Central, Inc. 2. Introduction ® The R5000 SwitchMaster Switching System is a 2U 19” rack style chassis containing multiple A/B Switch Cards. Each switch card connects port A or port B to port C, through latching or non-latching telecommunication relays or fiber optic switch mechanisms.
  • Page 5 Market Central, Inc. 3. Configuration 3.1 A/B Switch Card Configuration Figure 3.1.1 – Typical A/B Switch Card Front & Rear Panels Each A/B Switch Card has an 8-position DIP switch, used to set the card’s address. Switch position 1 is the least significant bit, and position 8 is the most significant bit.
  • Page 6 Market Central, Inc. The Controller Card rear pc board assembly has two jumpers for shielding and grounding options. The two 3- position jumpers are positioned such that pin 1 is toward the card edge connector, and pin 3 is toward the RJ11 connectors.
  • Page 7 SNMP Expansion Controller Cards, allowing it to be daisy-chain connected to the GANG-OUT port of another SNMP/Ethernet or SNMP Expansion Controller Card. Please contact Market Central for additional information regarding the universal firmware. R5000 A/B SWITCHING SYSTEM...
  • Page 8 Market Central, Inc. Table 3.3.3 – Controller Card Dip Switch Settings (RS232 Version Only) Switch SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 Security Character < > OFF * OFF * OFF * OFF * Security Code Enabled Security Code Disabled OFF *...

  • Page 9: Installation

    Market Central, Inc. 4. Installation The A/B Switch Cards consist of a single card, which is inserted from the rear of the rack. The Controller Card consists of a front card and a rear card. 4.1 Controller Card Rear PC Board Installation 4.1.1 Using the card guides, carefully slide the rear card into the rack, until it makes connection to the 8-position...
  • Page 10 Market Central, Inc. 5.1 RS-232 Serial Switching The RS232 version of the Controller Card allows the user to remotely switch all of the cards in a rack or system of daisy-chained racks using the serial commands listed in Table 5.1.1 below. The SNMP/Ethernet version of the Controller Card does not support the one character serial commands listed in Table 5.1.1 below, but instead uses the...
  • Page 11 Market Central, Inc. 5.3 RS232 Console Commands (for SNMP/Ethernet Controller Card) This section is applicable to SNMP/Ethernet Controller Cards. The GANG-IN RS232 interface on the SNMP/Ethernet Controller Card operates at 9600. The GANG OUT interface operates at 2400 bps. This allows the GANG OUT interface to connect to the GANG IN port on another R5000 (that does not have the Ethernet Module installed) so that multiple racks can be daisy-chain connected together.
  • Page 12 Market Central, Inc. SAVE save settings for next startup RESET restart (use after SAVE) DEFAULTS (restore default user settings, save required) 5.4 Remote Ethernet Management (for SNMP/Ethernet Controller Card) In order to use the Ethernet network port you must set the IPADDRESS, SUBNETMASK and GATEWAY address of the internal Ethernet module before connecting to your network.
  • Page 13 Market Central, Inc. When the auto switching feature is enabled, manual and remote switching can still be performed using the front panel toggle switch or by issuing serial or Ethernet commands, but this can affect the operation of the automatic switching feature.

  • Page 14: Network Setup

    Market Central, Inc. Network Connections for Auto Failover & Auto Recovery (FAILOVER mode) Note: The R5000 monitors the WAN connections by PINGing the far side router thru the primary WAN link. If the primary WAN link fails, the R5000 auto switches to the backup WAN link. When the primary WAN link is available again, the R5000 auto switches back to the primary WAN path.
  • Page 15 Market Central, Inc. must be reset to allow it to reconfigure with the new settings. Any time one or more of these parameters is changed, they must be saved followed by a system reset. The following shows a typical setup session. Change the entered parameters to suit your application requirements.
  • Page 16 Market Central, Inc. Web Enable: Enabled Web Password: mctech Web Timeout: 300 Web Port: 80 Telnet Enable: Enabled Telnet Password: dataman Telnet Timeout: 80 Telnet Port: 23 Monitor IP Address: 0.0.0.0 Monitor MAC Address: 00 00 00 00 00 00...
  • Page 17 Market Central, Inc. SET IPADDRESS X.X.X.X GET IPADDRESS Set or display the current IP address of the Ethernet module. Any change will not become permanent until a SAVE and RESET operation sequence is performed. SET SUBNETMASK X.X.X.X GET SUBNETMASK Set or display the current subnet mask of the Ethernet module. Any change will not become permanent until a SAVE and RESET operation sequence is performed.
  • Page 18 Market Central, Inc. SET TELNETENABLE ON[OFF] GET TELNETENABLE Set or display the current state of telnet based access. The Ethernet module will not accept any telnet requests when telnet enable is off. Any change will not become permanent until a SAVE and RESET operation sequence is performed.
  • Page 19 Market Central, Inc. SET MONITOROKCOUNT [N] GET MONITOROKCOUNT Set or display the Monitor OK Count. This parameter is not used in TOGGLE mode. In FAILOVER mode, this is the number of successive PING attempts that must succeed before the Switching System automatically switches to the “normal”...
  • Page 20 Market Central, Inc. GET ADMINIP N Display the IP address of administrator N (1-8). If no value is entered for “N”, then all administrator IP addresses will be displayed. ADMIN IP Addresses: 1: 192.168.1.113 2: 192.168.1.115 SET MANAGER N X.X.X.X Set SNMP manager N (1-16) IP address.
  • Page 21 Market Central, Inc. GET[SET] TELNETPORT [N] GET[SET] MONITORIP [X.X.X.X] (0.0.0.0 to disable) GET[SET] MONITORMAC [X X X X X X] (X = HEX CHARS) GET[SET] MONITORMODE [FAILOVER/TOGGLE] GET[SET] MONITORDELAYCOUNT [N] GET[SET] MONITORINTERVAL [N] (1/10 seconds, 0 to disable) GET[SET] MONITORFAILCOUNT [N] (0 to disable)

  • Page 22: Command Console

    Market Central, Inc. Web Interface Version 1.0 Copyright (c) 2018. All rights reserved. Command console Enter new command: Logoff Send Command Figure 8.2 Initial Command Screen At this point you may enter any valid console command listed in section 7 into the text box and click “Send Command”...

  • Page 23: Snmp Mib Path Summary

    NOTE: The MIB contains definitions that do not apply to every product in the R5000 family. [internet] – 1.3.6.1 [private] – 1.3.6.1.4 [enterprises] – 1.3.6.1.4.1 [mctech] – 1.3.6.1.4.1.9477 [mctech] – 1.3.6.1.4.1.9477 Market Central, Inc. private enterprise number [mcAgent] – 1.3.6.1.4.1.9477.1 Market Central, Inc. SNMP Agent [abSwitchSystem] – 1.3.6.1.4.1.9477.1.4 A/B Switch System [abSystemGangPort] – 1.3.6.1.4.1.9477.1.4.1 [abRackTable] –...
  • Page 24 Market Central, Inc. A/B Switch System SNMP Variable Definitions: [abSystemGangPort] – 1.3.6.1.4.1.9477.1.4.1 A/B Switch System gang port. This variable is used to control all A/B Switch Cards in the system. A system may consist of up to 255 racks, each rack containing up to 16 A/B Switch Cards.
  • Page 25 Market Central, Inc. [abSwitchPort] – 1.3.6.1.4.1.9477.1.4.3.1.2.SwitchIndex A/B Switch Card port. This variable is used to control the A/B Switch Card selected port. When set to A, the switch will connect port A to port C. When set to B, the switch will connect port B to port C.
  • Page 26 Market Central, Inc. abRackKeyLockChange – specific trap 1 This trap is sent when the key switch is changed on a rack. It carries the abRackKeyStat variable. abRackGangSwitchChange – specific trap 2 This trap is sent when a rack gang switch occurs. It carries the abRackGangPort variable.
  • Page 27 Market Central, Inc. keylock switch change enabled to disabled Jan 1 00:00:00 192.168.1.151 Bypass Switch: Keyswitch change to OFF position. system gang switch A to B via S S B command (or toggle switch) Jan 1 00:00:00 192.168.1.151 Bypass Switch: System switch to B position.
  • Page 28 If any alleged failure to conform to this warranty shall arise during a period of one (1) year from date of sale, Market Central shall, upon prompt, written notice and compliance by Customer with such instructions as Market Central shall provide with respect to the return of allegedly defective products or parts, correct such non-conformity by repair or replacement, or by the refund of the purchase price or applicable portion thereof, at Market Central’s sole discretion.
