500 Business Center Drive Pittsburgh, PA 15205 USA
412.494.2800

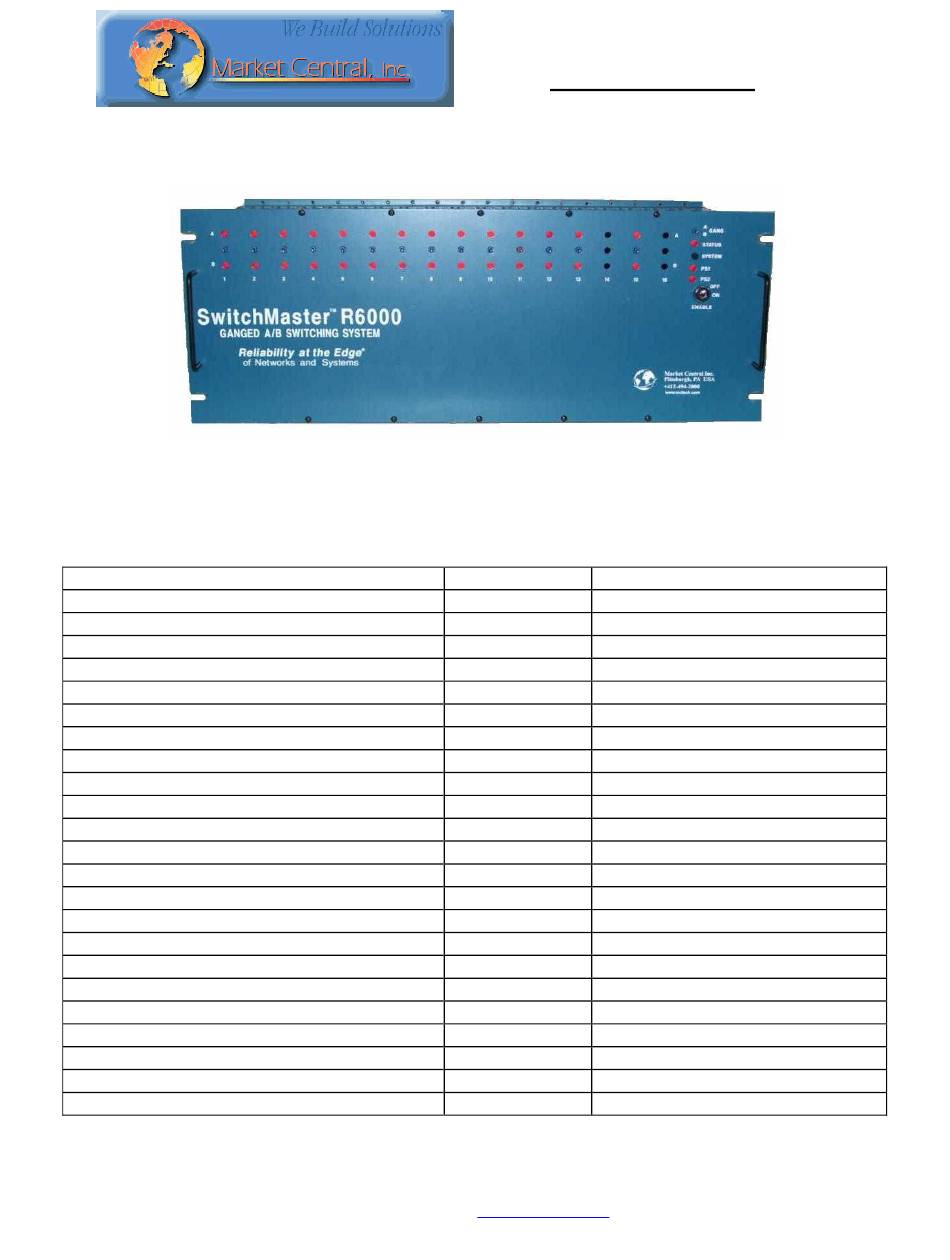

Compact Ganged A/B Switching System
Rack Mount Chassis
SNMP Controller Card
RS232 Controller Card
Logic-only Controller Card
RJ45 CAT-5 A/B Switch Card
RJ45 CAT-6 A/B Switch Card
RJ45 CAT-6 Simultaneous Dual-Port A/B Switch Card
Video - F Connector, 75 Ohm A/B Switch Card
DB25 A/B Switch Card
DB9 A/B Switch Card
DB15 A/B Switch Card
Latching Fiber Optic A/B Switch Card - SC
Latching Fiber Optic A/B Switch Card - ST
Non-Latching Fiber Optic A/B Switch Card - SC
Non-Latching Fiber Optic A/B Switch Card - ST
AC Power A/B Switch Card - 1IN/2OUT (120 VAC)
AC Power A/B Switch Card - 1IN/2OUT (240 VAC)
AC Power A/B Switch Card - 1IN/2OUT (120 VAC)
AC Power A/B Switch Card - 1IN/2OUT (240 VAC)
AC Power A/B Switch Card - 2IN/1OUT (120 VAC)
Blank Rear Panel
External Power Supply Module
48 VDC Power Supply Card
48 VDC Power Supply Card Dual Input
(lead-free versions of the above items are also available by changing the part # from 5xxxxxx to 6xxxxxx)
Phone: (412) 494-2800, Fax: (412) 494-5550,
Market Central
SwitchMaster
April 2013
Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205
©
Copyright
2010. Market Central, Inc. All rights Reserved.
®
®
and SwitchMaster
are registered trademarks of Market Central, Inc.
Market Central
www.secureswitch.com
CAGE 1BGJ7
®
R6000 Series
5000746
5000862
Includes MIB file & SwitchCenter GUI
5000863
5000864
5000742
5000865
5000866
5000871
5000745
5000750
5000749
5000776
5000775
5000748
5000760
5000751
5000758
5000756
5000757
5000868
5000762
Covers 1 empty slot in Chassis
5000761
1 per chassis, or 2 for redundant power
6001404
6001403
Dual input for redundant power
www.secureswitch.com
CAGE Code 1BGJ7
4U 19" Chassis
Supports up to 1 GbE
Supports up to 10 GbE
Supports up to 10 GbE
Switches All 25 Leads
Switches All 9 Leads
Switches All 15 Leads
Full Duplex, Multimode Fiber
Full Duplex, Multimode Fiber
Full Duplex, Multimode Fiber
Full Duplex, Multimode Fiber
with SNMP reporting
with SNMP reporting
with SNMP reporting
Single input
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Market Central SwitchMaster R6000 Series
Summary of Contents for Market Central SwitchMaster R6000 Series
- Page 1 Dual input for redundant power (lead-free versions of the above items are also available by changing the part # from 5xxxxxx to 6xxxxxx) Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205 Phone: (412) 494-2800, Fax: (412) 494-5550, www.secureswitch.com CAGE Code 1BGJ7 ©...
-
Page 2: Table Of Contents
Market Central, Inc. Federal Communications Commission (FCC) Statement This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class... -
Page 3: Specifications
Market Central, Inc. 1. Specifications Connectors: RJ45 A/B SWITCH CARDS – 5000742 & 500865 (3) RJ45 connectors; 5000866 (6) RJ45 connectors FIBER OPTIC A/B SWITCH CARD – (3) duplex SC or (3) duplex ST depending on model DB25 A/B SWITCH CARD – (3) DB25 female connectors DB15 A/B SWITCH CARD –... -
Page 4: Introduction
Market Central, Inc. Rear View with Controller Card and a selection of A/B switch cards installed: (3) DB25, (3) RJ45 and (2) AC power switch cards. 2. Introduction The R6000 Ganged A/B Switching System is a 4U high 19 inch rack style gang switch that supports multiple A/B switch cards. -
Page 5: Configuration
Market Central, Inc. 3. Configuration 3.1 Controller Card Configuration Figure 3.1.1 – Controller Card Outline The following discussion will describe all user configurable settings on the R6000 Ganged A/B Switching System Controller Card. Some of these settings are not applicable to all versions. - Page 6 Market Central, Inc. Figure 3.1.2 – RJ45 and RJ11 Pin Number Diagram Table 3.1.3 – RJ45 (Optional Ethernet Port) Pin Assignment Signal Name Signal Direction Transmit Pair Output Transmit Pair Output Receive Pair Input Receive Pair Input Note: Although the RJ45 port is present on all versions of the Controller Card, this port is only used on the SNMP version of the Controller Card.
- Page 7 Market Central, Inc. Table 3.1.6 – Controller Card Gang-In Port Configuration Jumper Settings Jumper Gang-In Pin 4 Connected to TXD * Pin 1 to Pin 2 Connected to V+ through 1K Pin 2 to Pin 3 Gang-In Pin 3 Connected to RXD *...
-
Page 8: Installation
Market Central, Inc. 3.2 Configuring A/B Switch Cards There are no jumpers or switch settings that need to be configured on the A/B Switch Cards that fit in the R6000 Ganged A/B Switching System chassis except for the AC Power A/B Switch Cards with SNMP Reporting. These switch cards have address DIP switches to allow an SNMP manager to directly query these cards for status. -
Page 9: Operation
Market Central, Inc. 5. Operation When power is applied to the Controller Card, the appropriate Power Supply LED should illuminate. Also, the alarm relay associated with the power supply should be energized, changing the state of the alarm relay contacts. - Page 10 Market Central, Inc. 5.2 RS232 Terminal Commands (Not applicable to Logic Only or SNMP Controller Cards) This section describes the RS232 commands that are available when using an RS232 Controller Card. Logic Only Controller Cards do not support any serial commands, and SNMP Controller Cards respond to an enhanced set of RS232 commands –...
- Page 11 Market Central, Inc. Command Response Action “SPACE” char > starts terminal mode if not started (1200,N,8,1), otherwise system will echo back a “SPACE” char if already in terminal mode get system System Status (A or B) None set system B...
- Page 12 Market Central, Inc. 5.3 Enhanced RS232 Terminal Commands for SNMP Controller Cards This section is applicable to controller cards WITH an SNMP network module installed. The RS232 Gang In interface on the SNMP Controller Card operates at 9600 bps (rather than at 1200 bps as is the case for an RS232 Controller Card).
-
Page 13: Snmp/Web Setup
Market Central, Inc. 6. SNMP/Web Setup To perform the initial setup of an SNMP Controller Card so that it can be remotely accessed over an Ethernet network, you will need a serial terminal capable of 9600 baud, no parity, 8 data bits, and 1 stop bit in order to configure the required networking parameters. -
Page 14: Console Commands
Market Central, Inc. 7. Console Commands The following list of commands are available from the console prompt (telnet, web, or RS232 interface) of the SNMP Controller Card. All commands are case insensitive, although several variable parameters are case sensitive (read/write community names, telnet and web password). GET, SET, SYSTEM, RACK, and PORT can all be abbreviated by the first letter of the command, allowing shorthand entry of switching commands. - Page 15 Market Central, Inc. GET PORT N Displays the status of A/B switch card N (1-4080). Switch card addresses are assigned using the formula N = 16*(rack address – 1) + slot# The response will be “A”, “B”, or “X” (if not present).
- Page 16 Market Central, Inc. SET WRITECOMMUNITYNAME string GET WRITECOMMUNITYNAME Set or display the current read or write community name as specified. Any mix of upper/lower case letters, numerals, and/or printable symbols can be used. The password must be at least 1 char and no more than 8 chars in length.
- Page 17 Market Central, Inc. Set or display the current state of authentication error traps. Authentication traps will be generated when this parameter is set to ON, and not when OFF. Note that this setting only affects the trap generation, and not how the SNMP Controller Card handles an authentication failure.
-
Page 18: Web Interface
Market Central, Inc. GET[SET] AUTHENTICATIONTRAP [ON/OFF] GET[SET] MANAGER N [X.X.X.X] (0.0.0.0 to disable an entry) MANAGER (display all SNMP managers) SAVE save settings for next startup RESET restart (use after SAVE) DEFAULTS (restore default user settings, save required) 8. Web Interface The SNMP Controller Card also provides access to the console commands listed in Section 7 through a web browser interface. -
Page 19: Mib Path Summary
Market Central, Inc. At this point you may enter any valid command into the text box and click “Send Command” to execute (see Section 7 for a complete description of the console commands). The following is an example result of the GET ALL command. - Page 20 Market Central, Inc. private enterprise number [mcAgent] – 1.3.6.1.4.1.9477.1 SNMP Agent [abSwitchSystem] – 1.3.6.1.4.1.9477.1.4 A/B Switch System [abSystemGangPort] – 1.3.6.1.4.1.9477.1.4.1 [abRackTable] – 1.3.6.1.4.1.9477.1.4.2 [abRackIndex] – 1.3.6.1.4.1.9477.1.4.2.1.1.RackIndex [abRackGangPort] – 1.3.6.1.4.1.9477.1.4.2.1.2.RackIndex [abRackKeyStat] – 1.3.6.1.4.1.9477.1.4.2.1.3.RackIndex [abRackPowerStat] – 1.3.6.1.4.1.9477.1.4.2.1.4.RackIndex [abRackSoftwareVersion] – 1.3.6.1.4.1.9477.1.4.2.1.5.RackIndex [abRackName] – 1.3.6.1.4.1.9477.1.4.2.1.6.RackIndex [abRackCards] –...
- Page 21 Market Central, Inc. [abRackIndex] – 1.3.6.1.4.1.9477.1.4.2.1.1.RackIndex Controller Card “Rack” address. The Controller Card address is set via an eight position dip switch on the card. Each Controller Card in the system MUST have a unique address, in the range of 0x01 to 0xFF hex. Address 0x00 is invalid, and must not be used. This is a read only variable.
- Page 22 Market Central, Inc. This is a read only variable is a string of 16 characters. A “1” will be displayed for card slots which are populated, and a “0” will be displayed for card slots which are not populated. [abSwitchTable] – 1.3.6.1.4.1.9477.1.4.3 A/B Switch Rack variable table.
- Page 23 Market Central, Inc. A/B Switch System SNMP Trap Definitions: All traps carry the sysObjectId (1.3.6.1.2.1.1.2) variable, whose value is 1.3.6.1.4.1.9477.1. coldStart – generic trap 0 This trap is sent during a power on initialization and reboot of the SNMP controller. It carries the sysDescr variable (1.3.6.1.2.1.1.1).
- Page 24 If any alleged failure to conform to this warranty shall arise during a period of one (1) year from date of sale, Market Central shall, upon prompt, written notice and compliance by Customer with such instructions as Market Central shall provide with respect to the return of allegedly defective products or parts, correct such non-conformity by repair or replacement, or by the refund of the purchase price or applicable portion thereof, at Market Central’s sole discretion.
