Part Numbers
Description
6100920-SC
Fiber Optic NAC, Desktop, SC connectors
6100920-ST
Fiber Optic NAC, Desktop, ST connectors
6100921-SC
Single Fiber Optic NAC, 1U Rackmount, SC connectors
6100921-ST
Single Fiber Optic NAC, 1U Rackmount, ST connectors
6100922-SC
Dual Fiber Optic NAC, 1U Rackmount, SC connectors
6100922-ST
Dual Fiber Optic NAC, 1U Rackmount, ST connectors
6100923-SC
Triple Fiber Optic NAC, 1U Rackmount, SC connectors
6100923-ST
Triple Fiber Optic NAC, 1U Rackmount, ST connectors
Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205
Phone: (412) 494-2800, Fax: (412) 494-5550,
©
Copyright
2010. Market Central, Inc. All rights Reserved.
®
Market Central
and SwitchMaster
Market Central
www.secureswitch.com
February, 2011
Fiber Optic Network
Access Control Switch
Desktop

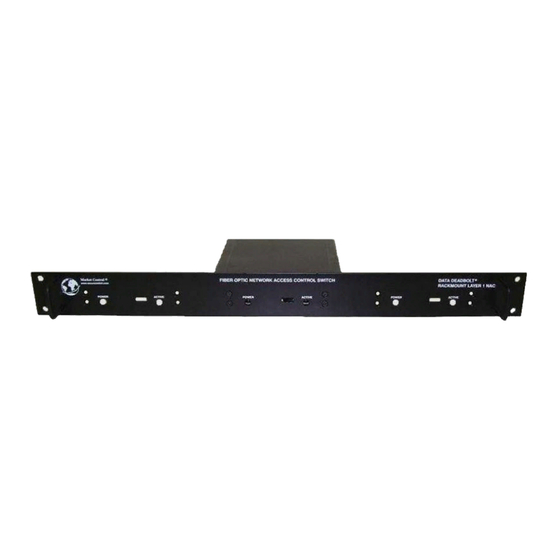

Rackmount
www.secureswitch.com
®
are registered trademarks of Market Central, Inc.
®
CAGE Code 1BGJ7
Advertisement
Table of Contents
Related Manuals for Market Central 6100920-SC
Summary of Contents for Market Central 6100920-SC
- Page 1 Triple Fiber Optic NAC, 1U Rackmount, SC connectors 6100923-ST Triple Fiber Optic NAC, 1U Rackmount, ST connectors Desktop Rackmount Market Central Inc., 500 Business Center Drive, Pittsburgh, PA 15205 Phone: (412) 494-2800, Fax: (412) 494-5550, www.secureswitch.com CAGE Code 1BGJ7 ©...
- Page 2 Fiber Optic Network Access Control Switch Page 2 Contents Chapter Page 1. Specifications 2. Introduction 3. Installation 4. Operation 5. Troubleshooting 1. Specifications Connectors: (2) duplex ST or duplex SC depending on model, (1) 3.5-mm power input, (1) Six position terminal block.
- Page 3 Fiber Optic Network Access Control Switch Page 3 2. Introduction The Fiber Optic Network Access Control Switch is a non-latching full-duplex optical switch. It is used to provide network access at the user’s discretion. The switch operates with a unique switching mechanism. When you connect (short) Pin 1 to Pin 2 on the terminal strip located on the back of the unit, the internal optical mirror mechanism will provide a connection path between port A and port B.
- Page 4 NOTE: Pin 4 & 5 are connected in the inactive state, while pins 5 & 6 are connected in the active state. Fiber Optic Network Access Control Switch Page 4 4. Operation Operation is easy. Apply power to the unit by providing a source of AC voltage to the wall mount power supply.
- Page 5 •Package it carefully. We recommend that you use the original container. •If you are shipping the switch for repair, make sure you include everything that came in the original package. Before you ship, contact Market Central, Inc. to get a Return Materials Authorization (RMA) number.
- Page 6 If any failure to conform to this warranty becomes apparent during a period of one (1) year after date of sale, Market Central shall, upon prompt, written notice and compliance...
