Stanley SM21 User Manual

Stanley SM21 User Manual

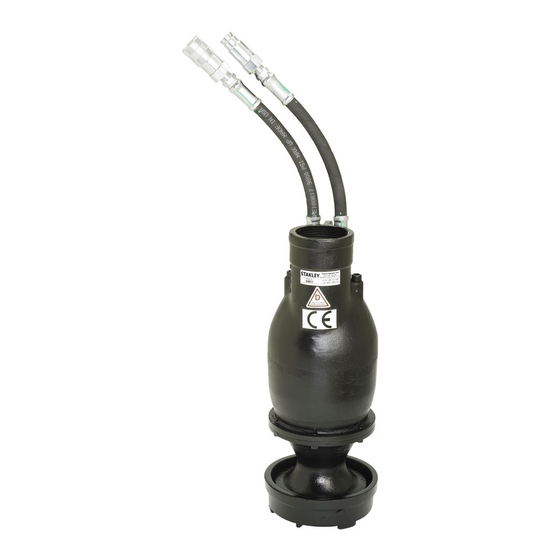

Hydraulic sump pump

Advertisement

Quick Links

SM21
HYDRAULIC
SUMP PUMP
USER MANUAL
Safety, Operation and Maintenance
© 2014 STANLEY Black & Decker, Inc.
New Britain, CT 06053
U.S.A.
72421 10/2017 Ver. 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stanley SM21

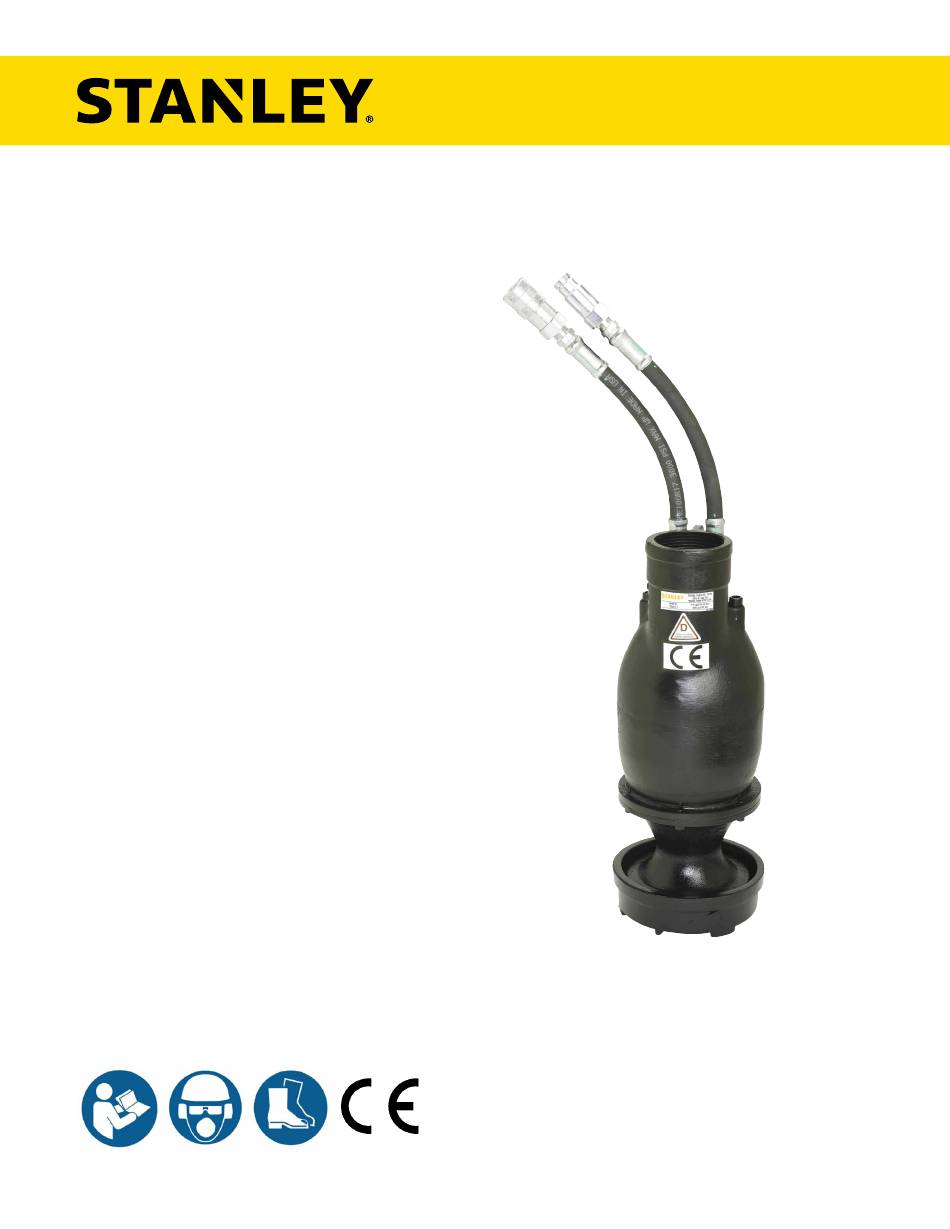

  • Page 1 SM21 HYDRAULIC SUMP PUMP USER MANUAL Safety, Operation and Maintenance © 2014 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 72421 10/2017 Ver. 10...
  • Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA...
  • Page 3: Table Of Contents

    REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. SM21 User Manual ◄ 3...
  • Page 4: Safety Symbols

    Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► SM21 User Manual...
  • Page 5: Safety Precautions

    140 °F/60 °C. Operation at higher oil temperatures the space provided in this manual. can cause operator discomfort and may cause The models SM21 Hydraulic Pump will provide safe and damage to the tool. dependable service if operated in accordance with the •...
  • Page 6: Tool Stickers & Tags

    SEE OTHER SIDE SEE OTHER SIDE removal. We suggest you retain this tag and attach it to the tool when not in use. SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► SM21 User Manual...
  • Page 7: Hose Types

    HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be obtained from your STANLEY Distributor.
  • Page 8 HOSE RECOMMENDATIONS 8 ► SM21 User Manual...
  • Page 9: Htma / Ehtma Requirements

    (103 bar) (103 bar) (103 bar) System relief valve setting 2495 psi 2000 psi 2000 psi 2000 psi 2000 psi (at the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: SM21 User Manual ◄ 9...
  • Page 10: Operation

    “OFF” posi tion. Lift the pump from the NOTE: work area. The SM21 is not designed for use with a suction NOTE: pipe inlet. The diameter of the suction screen at Always keep water speed as fast as possible during the bottom of the pump provides maximum pump operation.
  • Page 11 5/16 -18 capscrews (item 18). 4. Assemble the motor and impeller to the volute. Clean the capscrews and lubricate the threads with underwater grease before installation. 5. Remove all debris from the hose. Otherwise, solids will backfill the pump. SM21 User Manual ◄ 11...
  • Page 12: Tool Protection & Care

    This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. Do not exceed the rated flow or pressure. Refer to •...
  • Page 13: Troubleshooting

    Remove. Use no plumbing on suction side of pump. pump. Excessive clearance between Add small washers between the impeller and inlet bell bore and impeller a larger washer just above those to reduce blades. clearance within .030–.060 in./.76–1.5 mm. SM21 User Manual ◄ 13...
  • Page 14: Specifications

    Note: This Threaded Adapter is needed to connect pump to fire hose. Spanner Wrench for Pin Lug Coupler ........................05135 Lay Flat Hose with Couplers, 25 ft × 3 in. Diameter Camlock ................56761 Adapter 2-1/2 NPT × 3 in. Camlock ........................59101 14 ► SM21 User Manual...
  • Page 15: Sm21 Parts Illustration

    SM21 PARTS ILLUSTRATION SM21 User Manual ◄ 15...
  • Page 16 BUSHING CE STICKER (CE ONLY) • 28322 28786 COUPLER STICKER • 28788 MANUAL STICKER • NAME TAG SM21 (CE ONLY) • 74763 03971 FF COUPLER SET 3/8 BODY 3/8 NPT SEAL KIT (INCLUDES ITEMS 7, 15, 03081 17 & 23) •...
  • Page 17: Underwater Tools Depth Guideline

    3/4” 1” feet. ROV operation is still limited to the tool, for 1” 1” example a percussive tool has the same depth 1000 1” 1-1/4” limitation whether ROV or diver operated. SM21 User Manual ◄ 17...
  • Page 20 STANLEY Infrastructure 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
