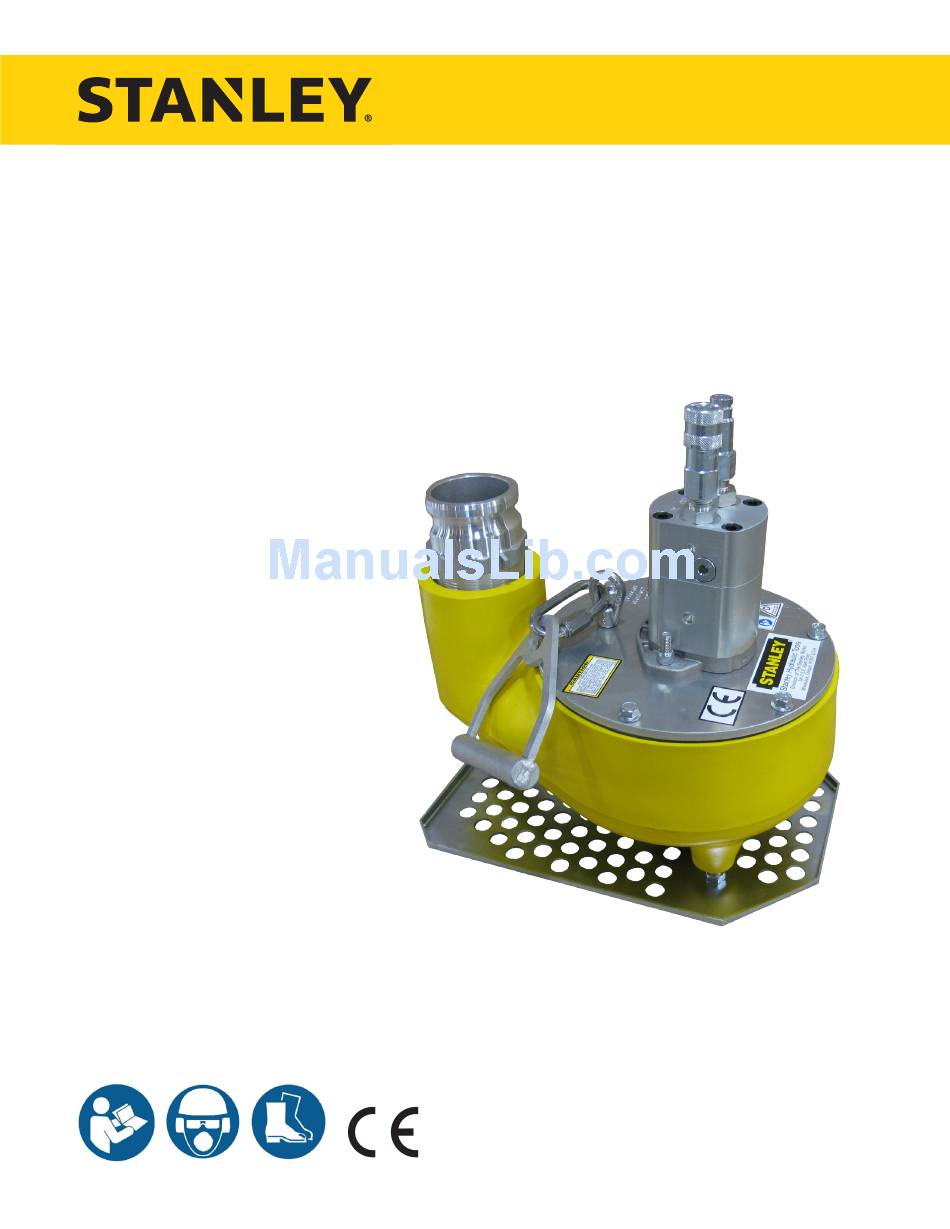

- Page 1 TP03 HYDRAULIC TRASH PUMP USER MANUAL Safety, Operation and Maintenance © 2012 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 58555 7/2014 Ver.12...
-
Page 2: Declaration Of Conformity
Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte- nance personnel. 4 ► TP03 User Manual... -
Page 5: Safety Precautions

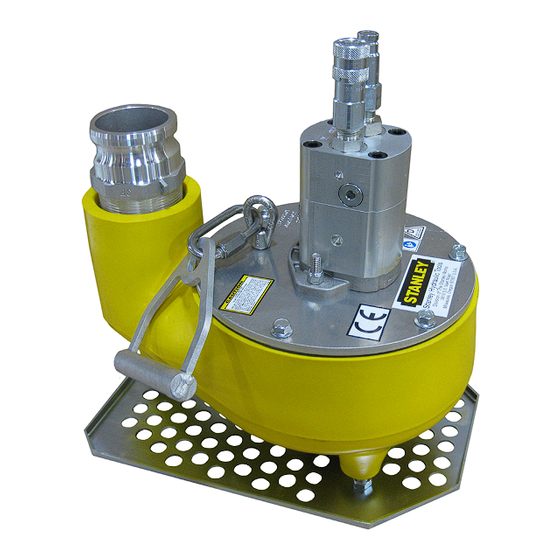

140 °F/60 °C. Operation at higher oil temperatures the space provided in this manual. can cause operator discomfort and may cause dam- The models TP03 Hydraulic Trash Pump will provide age to the tool. safe and dependable service if operated in accordance •... -
Page 6: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► TP03 User Manual... -
Page 7: Hose Types
HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydraulic Tools. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► TP03 User Manual... -
Page 9: Htma Requirements
2000 psi 2000 psi 2000 psi (at the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: These are general hydraulic system requirements. See tool specification page for tool specific requirements TP03 User Manual ◄ 9... -
Page 10: Operation
For high-pressure water pumping, use CHECK POWER SOURCE a Stanley SM20 or SM50 and nozzle. The TP03 is designed for high GPM water flow at low water pres- 1. Using a calibrated flow meter and pres sure gauge, sure (head). -
Page 11: Cold Weather Operation
To maintain optimum performance, it is good prac- tice to periodically inspect the impeller for wear or damage. This is especially important following the pump ing of liquids containing sharp, abrasive solids. TP03 User Manual ◄ 11... -
Page 12: Tool Protection & Care
This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by Stanley Hydraulic Tools. Supply hoses must have a mini- mum working pressure rating of 2500 psi/172 bar. •... -
Page 13: Troubleshooting
Wear plates worn or damaged. Check wear plates for damage and excessive wear. Replace if necessary. Hydraulic fluid in discharge Motor shaft seal failure. Replace the motor shaft seal. flow. Ensure power unit is delivering 7–9 gpm/26–34 TP03 User Manual ◄ 13... -
Page 14: Specifications
EHTMA Category..........................30 lpm @ 138 bar Sound Pressure ...........................<85 dBA @ 1m Vibration Level ............................... N/A ACCESSORIES Description Part No. Adapter, 3 in. NPT/3 in. Camlock Male......................52720 Lay-Flat Discharge Hose, 3 in. × 25 ft with Camlock Fittings ................56761 14 ► TP03 User Manual... -
Page 15: Tp03 Parts Illustration
TP03 PARTS ILLUSTRATION CARRY HANDLE P/N-73576 QUICK LINK P/N-73577 TP03 User Manual ◄ 15... -
Page 16: Tp03 Parts List
FOR P/N-24381 MOTOR 26230 SEAL KIT (CASAPPA BRAND MOTOR ONLY) 73434 OUTPUT SHAFT FOR P/N-24381 MOTOR ONLY 03974 COUPLER SET (MALE & FEMALE) 73576 CARRYING HANDLE (SEE EXPLODED VIEW) 73577 QUICK LINK (SEE EXPLODED VIEW) 16 ► TP03 User Manual... -
Page 17: Underwater Tools Depth Guideline
ROV operation is still limited to the tool, for Depth (ft) 8 GPM 12 GPM example a percussive tool has the same depth 5/8” 5/8” limitation whether ROV or diver operated. 3/4” 1” 1” 1” 1000 1” 1-1/4” TP03 User Manual ◄... - Page 18 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyhydraulics.com...
