- Page 1 USB I&P Box User Manual USB Interface & Programming Box Evaluation Programmer for SPI & I2C Interface www.ams.com Revision 1.4 / 09/09/2015 page 1/13...
-
Page 2: Table Of Contents
Compatible Products ......................4 Pin-out ..........................5 First steps with the USB I&P Box ..................5 Connection from compatible Adapterboard to USB I&P Box ..........7 AS5047D/AS5147/AS5047P/AS5147P ................7 AS5050A/AS5055A ......................7 AS5048A/AS5048B ......................8 AS5510 ..........................8 AS5600 ..........................9 AS5601 .......................... -
Page 3: General Description

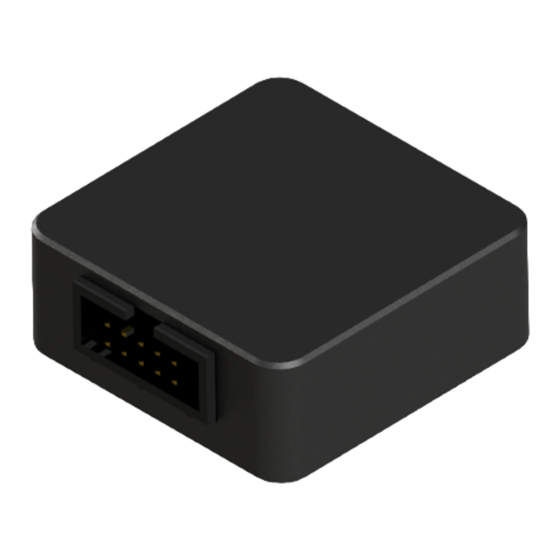

For programming a Magnetic Position Sensor the sensor should be mounted on a PCB to get connected with all the necessary pins of the sensor. For Position Sensors, ams provides Adapterboards where an easy access from the Sensor to the USB I&P Box is possible (not in the Tool-Kit included) Figure 1: USB I&P Box... -
Page 4: Hardware
/Evaluation-Tool/USB-I-P-Box Compatible Products Table 2: Compatible Products Product Description Adapterboard available AS5047D 14-bit On-Axis Magnetic Rotary Position Sensor AS5047P 14-bit On-Axis Magnetic Rotary Position Sensor AS5048A 14-bit Angular Position Sensor with SPI Interface www.ams.com Revision 1.4 / 09/09/2015 page 4/13... -
Page 5: Pin-Out
Note: The interface voltage of the USB I&P Box is 3,3V. Use the 3,3V mode when connecting to a position sensor board. First steps with the USB I&P Box The first steps to get started with the USB I&P Box are described below in Figure www.ams.com Revision 1.4 / 09/09/2015 page 5/13... - Page 6 Connect the right wires of the USB I&P For using the right wires Connector cable to your magnetic position please refer to Table 3 sensor Open the USB I&P Software Choose the right Device Ready to start www.ams.com Revision 1.4 / 09/09/2015 page 6/13...
-
Page 7: Connection From Compatible Adapterboard To Usb I&P Box
USB I&P Box User Manual Connection from compatible Adapterboard to USB I&P Box AS5047D/AS5147/AS5047P/AS5147P Figure 3: How to connect an AS5047D/AS5147/AS5047P/AS5147P adapterboard to the USB I&P Box AS5050A/AS5055A Figure 4: How to connect an AS5050A/AS5055A adapterboard to the USB I&P Box www.ams.com Revision 1.4 / 09/09/2015... -
Page 8: As5048A/As5048B
User Manual AS5048A/AS5048B Figure 5: How to connect an AS5048A/AS5048B adapterboard to the USB I&P Box AS5510 Figure 6: How to connect an AS5510 adapterboard to the USB I&P Box AS5510-AB using the www.ams.com Revision 1.4 / 09/09/2015 page 8/13... - Page 9 USB I&P Box User Manual AS5600 Figure 7: How to connect an AS5600 adapterboard to the USB I&P Box AS5601 Figure 8: How to connect an AS5601 adapterboard to the USB I&P Box www.ams.com Revision 1.4 / 09/09/2015 page 9/13...
- Page 10 USB I&P Box User Manual AS5247 Figure 9: How to connect an AS5247 adapterboard to the USB I&P Box www.ams.com Revision 1.4 / 09/09/2015 page 10/13...
-
Page 11: Software
B: Check if the Programmer will be detected (or there is no bootloader on the I&P Box) C: For firmware updates click on Help and Firmware Update, for further Information about this topic refer to www.ams.com Revision 1.4 / 09/09/2015 page 11/13... -
Page 12: Firmware Update
Search your computer for the new firmware file and click at it After that the firmware installs by itself and the update is successful Ordering Information Table 4: Ordering Information Ordering Code Description USB I&P Box USB Interface & Programming box for I2C/SPI www.ams.com Revision 1.4 / 09/09/2015 page 12/13... -
Page 13: Copyright
USB I&P Box User Manual Copyright Copyright ams AG, Tobelbader Strasse 30, 8141 Unterpremstätten, Austria-Europe. Trademarks Registered. All rights reserved. The material herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner.
