- Page 1 Quick Start Guide QG001003 TMD2636 TMD2636 EVM Miniature Proximity Sensor Module v1-00 • 2021-Jan-18...
-
Page 2: Table Of Contents
TMD2636 ● TMD2636 EVM Document Feedback Content Guide Content Guide Out of the Box ........ 3 Software Installation ..... 4 Connect Hardware ......7 Start the Application ..... 8 Uninstall Application ..... 9 Quick Start Guide • PUBLIC QG001003 • v1-00 • 2021-Jan-18... -
Page 3: Out Of The Box

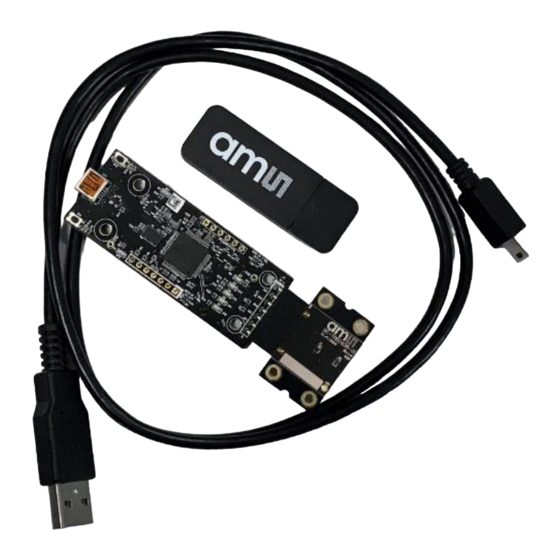

TMD2636 ● TMD2636 EVM Document Feedback Out of the Box Out of the Box For a detailed description of the TMD2636, please refer to User Guide: ● TMD2636_UG001002 Each TMD2636 Evaluation Kit comes with the following components: Figure 1 :... -
Page 4: Software Installation
Software Installation Software Installation Plug the ams flash drive into an unused USB port Double-click the Setup.exe file on the flash drive, or click Start > Run and type E:setup.exe and press Enter. IMPORTANT: Use the appropriate drive letter in the above command to install the software. - Page 5 TMD2636 ● TMD2636 EVM Document Feedback Software Installation Figure 4: Figure 5: Select Installation Folder Select Start Menu Folder Figure 6: Figure 7: Installation in Progress Information Screen Quick Start Guide • PUBLIC QG001003 • v1-00 • 2021-Jan-18 │ 5...
- Page 6 TMD2636 ● TMD2636 EVM Document Feedback Software Installation Figure 8: Installation Completed Successfully Quick Start Guide • PUBLIC QG001003 • v1-00 • 2021-Jan-18 │ 6...
-
Page 7: Connect Hardware
TMD2636 ● TMD2636 EVM Document Feedback Connect Hardware Connect Hardware Plug the TMD2636 daughterboard into the controller board (Figure 1). Always use ESD procedures when handling the EVM. Using the enclosed USB cable, plug the micro-B connector into the EVM module. Using the other end of the cable, plug the USB A-connector into a USB port on the computer. -
Page 8: Start The Application
Start the Application Start the Application To start the application select ams > TMD2636 EVM > TMD2636 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using is: C:\Program Files\ams\TMD2636_EVM (Windows 32-bit operating systems) C:\Program Files (x86)\ams\TMD2636_EVM (Windows 64-bit operating systems) A different install path may be selected by the user during the install (Figure 4). -
Page 9: Uninstall Application
AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein.
