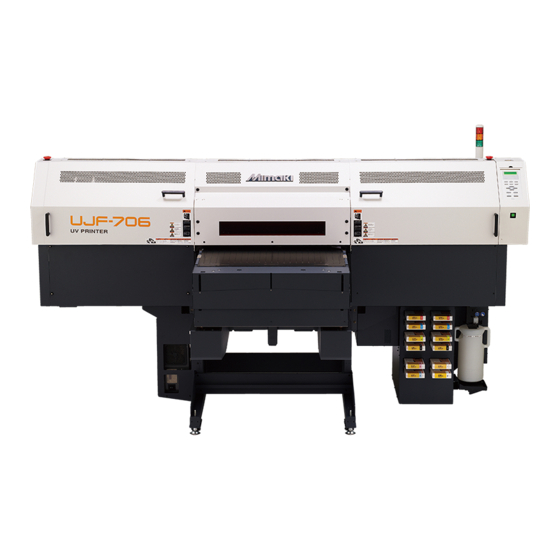

Inkjet printer is the precision machine that has highly delicate mechanism.
Especially, little dust and paper powder may have effect on a head nozzle
spraying ink, and may not get normal printing.
To use the inkjet printer in good condition, we recommend the following
daily care.
For safe operation ............................................................................. 2
Installation environment and Notes on cleaning ....................................... 2
Notes on cleaning ..................................................................................... 2
Maintenance for exterior surfaces ............................................................ 2
In case the print does not improve .................................................. 3
The examples of defective printing ........................................................... 3
Wiper cleaning .......................................................................................... 4
How to recover improper nozzle discharge .............................................. 7
Cleaning the flushing tray ................................................................ 8
Avoiding ink dripping at printing ................................................... 11
When the waste ink tray is full ....................................................... 14
Disposing of the ink in the waste ink tank ............................................... 14
Disposing of the waste ink in the wiper tank ........................................... 16
Cleaning of the UV lamp filter ........................................................ 18
Cleaning of the UV power supply filter ......................................... 20
Cleaning of the optional vacuum unit filter .................................. 22
How to store .................................................................................... 24
Storage of Antifreezing Liquid and Washing Liquid ................................ 24
Storage of Media .................................................................................... 24
Storage of Ink Cartridge ......................................................................... 24
MIMAKI ENGINEERING CO., LTD.
Daily Care Manual
Request for daily care
Table of Contents
URL: http: // www.mimaki. co. jp /
D202112-16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MIMAKI UJF-706
Summary of Contents for MIMAKI UJF-706
-
Page 1: Table Of Contents
Cleaning of the optional vacuum unit filter ........22 How to store ..................24 Storage of Antifreezing Liquid and Washing Liquid ........ 24 Storage of Media ..................24 Storage of Ink Cartridge ................. 24 MIMAKI ENGINEERING CO., LTD. URL: http: // www.mimaki. co. jp / D202112-16... -
Page 2: For Safe Operation
For safe operation Installation environment and Notes on cleaning • Use this printer in clean (less dust) environment. The use of fan and ventilator might because of dusty environment. They brow dust up dust around the printer. • As using UV curing ink, install this printer in a well-ventilated area. •... -
Page 3: In Case The Print Does Not Improve
In case the print does not improve If the print does not improve after head cleaning Operation ManualP.2-10) , clean the wiper. • When cleaning, be sure to put on the supplied goggles and gloves since you may get ink in your eyes. -
Page 4: Wiper Cleaning
Wiper cleaning Turn the power on. When <LOCAL> is displayed, press the < L OC A L . 1 > key. FUNCTION Select the [MAINTENANCE] with the F U NC T I ON key, and press the MA I N T E N A NC E <... -
Page 5: Cleaning Swab
In case the print does not improve Wipe out the dirt of the wiper with the cleaning swab. • Wipe the places shown in the right. • If the dirt of the wiper is heavy, press the FUNCTION key to open the nozzle of the washing liquid. Press the key again to stop the FUNCTION... - Page 6 After cleaning, press the key. ENTER W I P E R C L E A N COMP L E T E D : e n t • Initializing starts. Press the key to finish.
-
Page 7: How To Recover Improper Nozzle Discharge
In case the print does not improve How to recover improper nozzle discharge When not using this machine for a long time, or according to environmental temperature, the nozzle may not be stably discharged. In this case, follow the procedures below to recover the nozzle. •... -
Page 8: Cleaning The Flushing Tray
Cleaning the flushing tray When you clean the flushing box, check the flushing filter, and replace this as needed. (about once a week) Contents of the • Gloves • Paper towel • Goggles cleaning kit • When replacing, be sure to put on the supplied goggles and gloves, since you may get ink in your eyes. - Page 9 Cleaning the flushing tray Wipe out ink on the surface of the flushing box. • Wipe out ink that has adhered by flushing on the flushing tray with cloth. Flushing Remove the flushing box cover, filter box cover and mesh. Filter Mesh Wipe ink adhering to the tray.
- Page 10 Cleaning the flushing tray Replace Bemcot inside the flushing BOX. • When ink adheres to the inner box, wipe it with a Inner cloth. Set the tray, the mesh, new filter and the flushing BOX.
-
Page 11: Avoiding Ink Dripping At Printing
Avoiding ink dripping at printing Ink droplets from the mist at drawing may arise on the bottom of the carriage. As the ink droplets may drip and stain the media or cause blur or dot missing, clean the bottom of the carriage periodically. •... - Page 12 Remove the flushing box cover Lift it up to remove. • Fluxhing BOX cover Bring down the flushing BOX. (1) Lift it up slightly. (2) Push it into the rear side. (3) Bring it down. Move the carriage to the flushing position manually. Dip the cleaning swab into the cleaning Bottom of the carriage solution, and clean the side surface of...
- Page 13 Avoiding ink dripping at printing Set the covers and the tray removed at Step 4, 5 and 6. Turn the power ON.
-
Page 14: When The Waste Ink Tray Is Full
When the waste ink tray is full Waste ink used for head cleaning gathers in the waste ink tank and the wiper tank. Periodically(every day) check the waste ink tank and when it is full, dispose of the ink. • If you need a spare waste ink tray/tank, contact a distributor in your district or our office. •... - Page 15 When the waste ink tray is full Lift up the duct inside the waste ink tank. Pull out the waste ink tank. Pour the waste ink into the other polyethylene tank. • Discard the waste ink in compliance with the bylaw. Set the emptied waste ink tank to this machine.
-
Page 16: Disposing Of The Waste Ink In The Wiper Tank
Disposing of the waste ink in the wiper tank If the wiper tank is full, an error appears on the display. When the error appears, dispose ink of the wiper tank immediately as W I P E R T A N K F U L L follows. - Page 17 When the waste ink tray is full Take the wiper tank out, and dispose of the waste ink. • Turn the tank holding the tank cover, take out the tank, and then dispose of the ink in the tank. • Dispose of the waste ink pursuant to the regulations of your district.
-
Page 18: Cleaning Of The Uv Lamp Filter
Cleaning of the UV lamp filter To use this machine for a long time, clean the UV lamp filter at end of the day’s work. • Put on supplied goggles and gloves. Ink may splash into the eye. • When a screw is dropped in replacing of the filter, contact a distributor in your district or our office. - Page 19 Cleaning of the UV lamp filter Remove the UV lamp filter. • Remove the hand screw, and then remove the filter and the filter holder by moving them upward. Scoop and drop mist polled in the UV lamp filter with the attached metal brush. Metal brush UV lamp filter Attach the UV lamp filter and close the front left cover.
-
Page 20: Cleaning Of The Uv Power Supply Filter
Cleaning of the UV power supply filter To use this machine for a long time, clean the UV power supply filter at start of the day’s work. Tools • Waste cloth • Vacuum cleaner Put out the UV lamp and switch OFF the power. •... - Page 21 Cleaning of the UV power supply filter Use a vacuum cleaner to suc dust amd dirt from the filter • Wipe off the metal mesh at the UV power supply side with a waste cloth etc. Wipe off. • Clogging shall not be found. It is clogged with dust.
-
Page 22: Cleaning Of The Optional Vacuum Unit Filter
Cleaning of the optional vacuum unit filter When you use the optional vacuum unit (OPT-J0270), clean the filter of it (once in a week, or, when absorption becomes weak). Tools • waste cloth • Vacuum cleaner Turn OFF the power supply of the main body and the vacuum unit. Remove the lid. - Page 23 Cleaning of the optional vacuum unit filter Wipe off dust adhering to the lid with a waster cloth etc. • If big dust adheres to the lid, absorption may become weak. Put the filter back in its origin position. (1) Put into the filter nd firmly close the lid. (The hooks will not engage unless the lid firmly closed.) (2) Engage the hooks •...
-
Page 24: How To Store
How to store Storage of Antifreezing Liquid and Washing Liquid Be sure to store the Antifreezing liquid and the washing liquid in a cold and dark place. Store the Antifreezing liquid and the washing liquid in a place that is out of the reach of children. Storage of Media Media should be stored in the little dust area, and not in direct sunlight. - Page 28 You can also download the latest manual from our website. D202112-16-16032012 Printed in Japan FW : 1.9 © MIMAKI ENGINEERING Co., Ltd. 2012...
