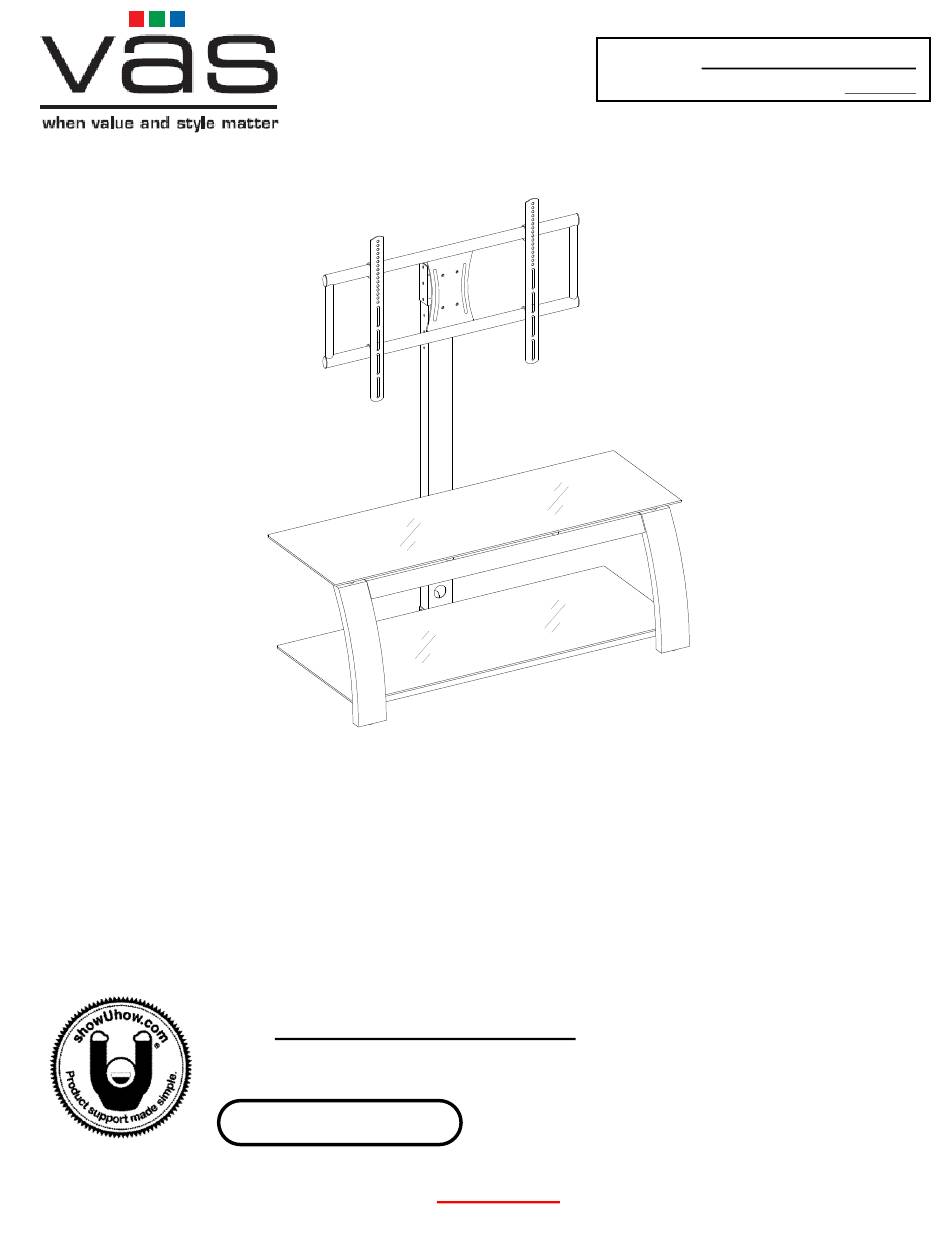

Flat Panel Console with Swinging Floater
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
ONLINE: www.whalenfurniture.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc.
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
VCPRO44-1VS
EMAIL: parts@whalenfurniture.com
Factory No. 56-12089
Model # VCPRO44-1VS
LOT No.:
DATE OF PURCHASE:
Page 1
Advertisement
Related Manuals for VAS VCPRO44-1VS
Summary of Contents for VAS VCPRO44-1VS
- Page 1 Model # VCPRO44-1VS LOT No.: DATE OF PURCHASE: Flat Panel Console with Swinging Floater ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if you are missing parts, do not return this item to the Retailer Store. Please call our toll free customer service number and have your...
-
Page 2: Quality Guarantee
Model # VCPRO44-1VS QUALITY GUARANTEE We are confident that you will be delighted with your VAS Furniture purchase. Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to 1 year from date of purchase. - Page 3 Model # VCPRO44-1VS Parts & Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Bottom Shelf Frame (1) C- Spine (1) D- Left Leg (1)
- Page 4 Model # VCPRO44-1VS Parts & Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. (2) - 3/4” Bolt (40+2 extra) (1)- Suction Cup (6+1 extra) (3) - Nut (4+1 extra)
- Page 5 Model # VCPRO44-1VS Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts, then go back and fully tighten all bolts, this will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and required parts listed.
- Page 6 Model # VCPRO44-1VS Assembly Instructions Note: Please loosen the bolts on the wooden front rail before assembling the legs. 4. Pick up Right Leg (E) and align the back inserted nuts with the end brackets on the Shelf Frames (A & B) simultaneously, insert and screw the 3/4” Bolts (2) with Washers (4 & 5) through the end brackets as shown in detail #2.
- Page 7 Model # VCPRO44-1VS Assembly Instructions Turn the unit upright. 7. For a stable structure, align and attach the Front Left & Right Support (H & I) in place to connect the Top Shelf Frame (A) with Left & Right Legs (D & E) using 3/4” Bolts (2) with Washers (4 &...
- Page 8 Model # VCPRO44-1VS Assembly Instructions attach Swiveling Bracket (L) to the top of the Spine (C) using six 3/4” Bolts (2) with Align and Washers (4 & 5). Make sure the swivel bolt head is up. See detail # Note: The Spine can provide four height options for your TV set. Refer to your TV size, adjust the Swiveling Bracket at your desired height to offer optimum viewing.
- Page 9 Model # VCPRO44-1VS Assembly Instructions 10. Hold the flat side of XYZ Mounting Frame (M) onto the Swiveling Bracket (L). Align and attach by threading four 3/4” Bolts (2) with Flat Washers (5) through the metal plate on XYZ Mounting Frame and the Swiveling Bracket, at the other side of Swiveling Bracket place the other Flat Washers (5) and Lock Washers (4), and then secure with Nuts (3).
- Page 10 Model # VCPRO44-1VS Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #16. 13. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 11 Model # VCPRO44-1VS Mounting Monitor Bracket to a television with a curved / recess back 16. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 12 Model # VCPRO44-1VS Assembly Instructions 19. Once the Monitor Brackets (N) are attached onto the back of television, ask for assistance to lift the television up to the XYZ Mounting Frame (M). Place the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of Mounting Frame. Proceed to center the television.
- Page 13 Model # VCPRO44-1VS Assembly Instructions 21. Put the Suction Cups (1) firmly into top holes of the Bottom Shelf Frame (B) in place. As shown in detail #9. 22. Screw the Glass Raisers (6) onto the top holes of Top Shelf Frame (A) and Left & Right Leg (D &...
-
Page 14: Tipping Restraint Hardware
Model # VCPRO44-1VS TIPPING RESTRAINT HARDWARE Note: We have included one Tipping Restraint Hardware bag for this unit. When properly installed, this restraint can provide protection against the unexpected tipping of the unit due to small tremors, bumps or climbing. We strongly recommend mounting this hardware to a wall stud and your unit when installing.
