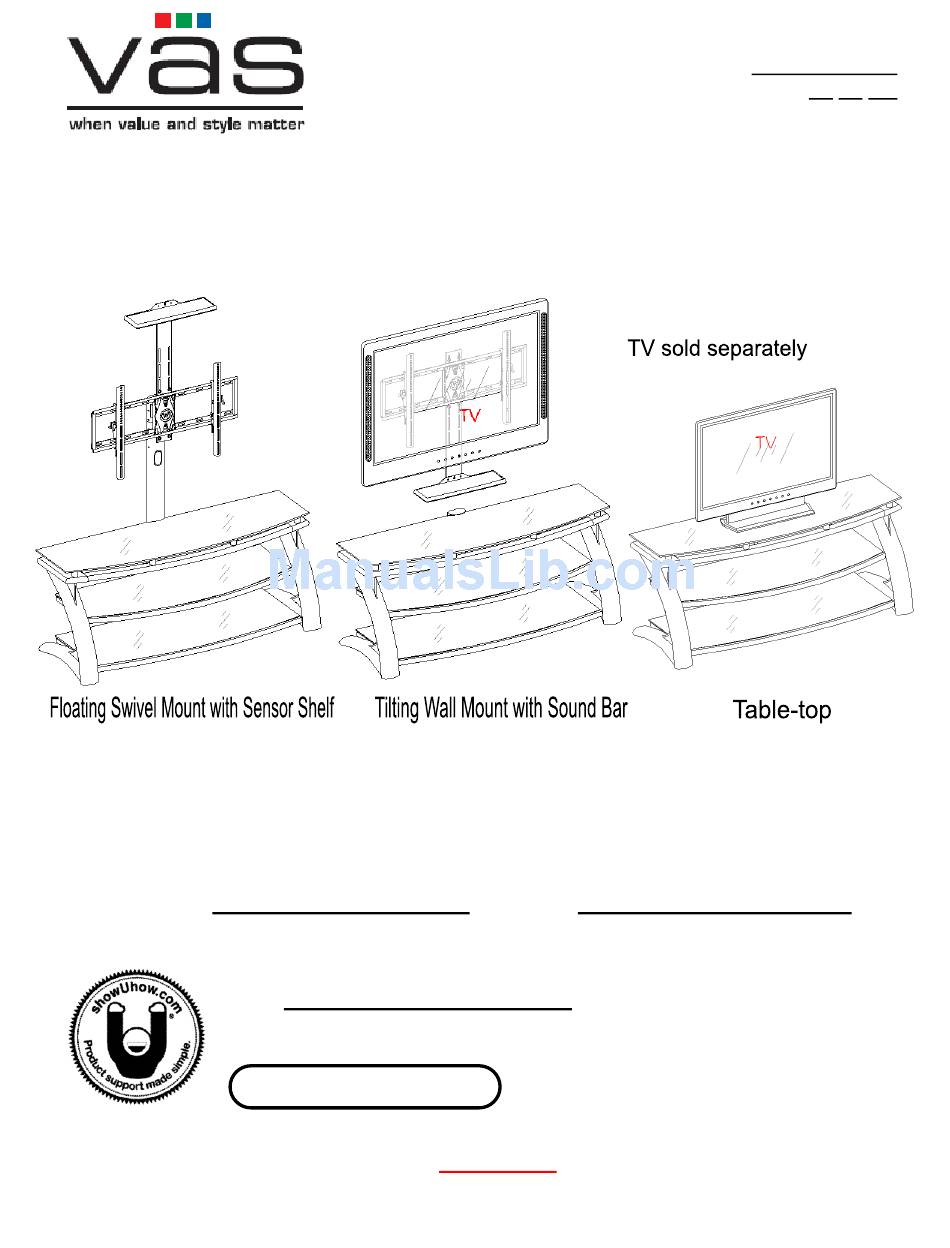

3-N-1 Gaming/Theater
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this
will give you the opportunity to use this TV Console for different configurations in case you decide
to upgrade your TV set in the future.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, do not return this item to the
store where it was purchased. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
ONLINE: www.whalenfurniture.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc.
TM
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
XLOGT2254CR-GB
LOT NUMBER:
DATE PURCHASED:
Console (XLOGT2254CR-GB)
EMAIL: parts@whalenfurniture.com
Page 1
/
/
Factory No. 33-10944
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VAS XLOGT2254CR-GB
Summary of Contents for VAS XLOGT2254CR-GB
- Page 1 Enter the following product number on the ShowUhow homepage. XLOGT2254CR-GB THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. VAS Furniture Mfg. Inc. Page 1 Factory No. 33-10944...
- Page 2 Model # XLOGT2254CR-GB M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: VAS Furniture CATALOG: 3-N-1 Gaming/Theater Console (XLOGT2254CR-GB)
- Page 3 Model # XLOGT2254CR-GB Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1) D- Long Spine (1)
- Page 4 Model # XLOGT2254CR-GB Parts and Hardware List (2) 1/2” Bolt (3) 3/4” Bolt (4) 1-1/2” Bolt (1) Suction Cup (16+1 extra) (8+1 extra) (23+1 extra) (7+1 extra) (5) Lock Washer (6) Flat Washer (7) 2-1/2” Lag Bolt (35+1 extra) (35+1 extra)
- Page 5 Model # XLOGT2254CR-GB Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Choose the option suits your needs. Locate Long Spine (D) or Short Spine (D1) and set back face down on a scratch free surface as shown.
- Page 6 Model # XLOGT2254CR-GB Assembly Instructions 4. Stand the unit upright. 5. Align and attach Left Leg (E) to the Top and Middle Shelf Frame (A and B) by inserting 3/4” Bolts (3) with Washers (5 and 6) through the end bracket holes into the threaded inserts on the Leg.
- Page 7 Model # XLOGT2254CR-GB Assembly Instructions 8. Go back and tighten all bolts with enclosed M4 Allen Wrench. 9. In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (E and F). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting.
- Page 8 Model # XLOGT2254CR-GB Assembly Instructions for Table-top 10. Attach Gaming Guitar Clip (O) and Cable Wheel (P) vertically onto the backside of Short Spine (D1). You can treat them as cable controls to help keep your entertainment center’s cables and cords organized 11.
- Page 9 Model # XLOGT2254CR-GB Assembly Instructions for Table-top 12. Put Suction Cups (1) firmly into the top holes and metal tabs on Middle Shelf Frame (B) and Bottom Shelf Frame (C) as shown. Tip: If a suction cup resists insertion, try pressing down on the middle of the cup with the Allen Wrench while twisting it clockwise into the hole.
- Page 10 Model # XLOGT2254CR-GB Assembly Instructions for Table-top 15. Position the assembled Table-top in your desired location against the wall. Now follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to mount the Tipping Restraint Hardware Kit to the Spine and the wall.
- Page 11 Model # XLOGT2254CR-GB A s s e m b l y I n s t r u c t i o n s f o r F l o a t i n g S w i v e l M o u n t 17.
- Page 12 Model # XLOGT2254CR-GB Assembly Instructions for Floating Swivel Mount 18. The Sensor/Sound Shelf (N) provides two options: position gaming accessories above TV or sound bar below TV. Choose the option you prefer, slide SSS Spine (M) onto the XYZ Mounting Frame (K) properly. Adjust the height of SSS Spine and attach in place. Make sure the Sensor/Sound Shelf (N) will not hit your TV.
- Page 13 Model # XLOGT2254CR-GB Assembly Instructions for Floating Swivel Mount 19. Hold and attach the flat side of XYZ Mounting Frame (K) onto the Swiveling Bracket (J). Make sure the recess holes on the XYZ Mounting Frame are at the bottom.
- Page 14 Model # XLOGT2254CR-GB Assembly Instructions for Floating Swivel Mount 20. Pick up Sensor/Sound Shelf (N) and securely fit the back tabs into the small slots of SSS Spine (M). Tighten both lock bolts pre-attached on the SSS Spine with a Phillips Screwdriver until they hit the back tabs of Sensor/Sound Shelf.
- Page 15 Model # XLOGT2254CR-GB Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #23. 21. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 16 Model # XLOGT2254CR-GB Mounting Monitor Bracket to a television with a curved / recess back 23. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 17 Model # XLOGT2254CR-GB Assembly Instructions MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE AND USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO INSTALLATION OF TV. 25. Once the Monitor Brackets (LL/LR) are attached onto the back of television, ask for assistance to lift the television up to attach the Monitor Brackets onto the XYZ Mounting Frame (K).
- Page 18 Model # XLOGT2254CR-GB Assembly Instructions Repeat steps 10 thru 14 to attach the Gaming Guitar Clip (O) and Cable Wheel (P) and install the Top Glass (G) and Glass Shelves (H and I) in place 28. Carefully move the console and position in your desired location against the wall. Now follow the instructions printed on the plastic bag containing Tipping Restraint Hardware Kit to mount the Tipping Restraint Hardware Kit to the Spine and the wall.
- Page 19 Model # XLOGT2254CR-GB The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the stand, disregard the following steps.
- Page 20 Model # XLOGT2254CR-GB Assembly Instruction for installing XYZ Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK NOTE: If you are mounting your TV to a wall with wooden studs, skip this section. This assembly requires an electric drill and level (not included).
- Page 21 Model # XLOGT2254CR-GB Assembly Instructions 36. The Sensor/Sound Shelf (N) provides two options: position gaming accessories above TV or sound bar below TV. Choose the option you prefer, slide SSS Spine (M) onto the XYZ Mounting Frame (K) properly. Adjust the height of SSS Spine and attach in place. Make sure the Sensor/Sound Shelf (N) will not hit your TV.
-
