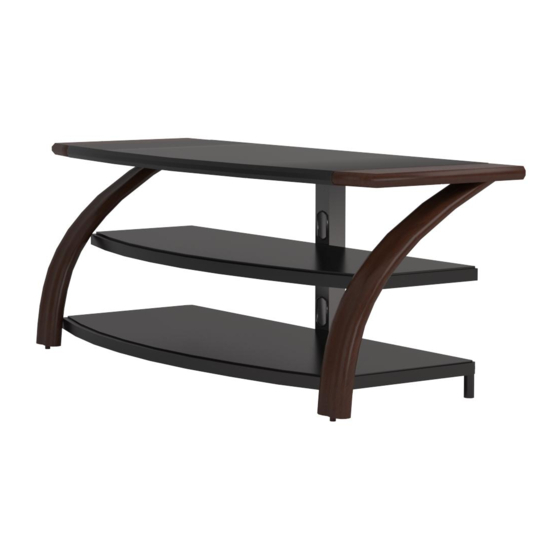

54" TV Console
Model # RTGAVC54BRC
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or visit our website 24 hours a day, 7 days a week for product assistance at
Or e-mail your request to parts@whalenfurniture.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc.
1-866-942-5362
www.whalenfurniture.com
Page 1
LOT NUMBER:
DATE PURCHASED:
Factory No. 55-12029
/
/
Advertisement
Related Manuals for VAS RTGAVC54BRC
Summary of Contents for VAS RTGAVC54BRC
- Page 1 LOT NUMBER: DATE PURCHASED: 54” TV Console Model # RTGAVC54BRC ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your...
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: VAS Furniture CATALOG: 54” TV Console (RTGAVC54BRC) DATE OF MANUFACTURE: September, 2011 MADE IN CHINA FITS UP TO MOST 60”...
- Page 3 Model # RTGAVC54BRC Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A- Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1) D- Back Frame (1)
- Page 4 Model # RTGAVC54BRC Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and required parts listed.
- Page 5 Model # RTGAVC54BRC Assembly Instructions 4. Stand the unit upright. 5. Align and attach Left and Right Legs (E and F) to the Shelf Frames (A, B and C). DO NOT tighten the bolts. Make sure that the top edges are even with each other and that the gaps and offsets between the front rails and Legs are equal.
- Page 6 Model # RTGAVC54BRC Assembly Instructions 6. Go back and tighten all bolts with the Allen Wrench provided. 7. Adjust the Floor Levelers pre-attached at the bottom of both Front Legs (E and F) to level the unit. Hardware provided Tools required...
- Page 7 Model # RTGAVC54BRC Assembly Instructions 8. Attach 2 Cable Wheels (J) onto the backside of Back Frame (D) and tighten with enclosed Allen Wrench. 9. The Cable Wheels allow you to organize, route and separate your component cords and cables to minimize tangling and signal interference.
- Page 8 Model # RTGAVC54BRC Assembly Instructions 10. Put Suction Cups (1) firmly into the top holes and metal tabs on Shelf Frames (B and C). 11. Place Glass Shelves (H and I) in place starting with Bottom Glass Shelf (I). Make sure the glass is properly centered and the black side of glass is down.
- Page 9 Model # RTGAVC54BRC Option #1: AS A TV STAND You can use this unit as a TV Stand to place your TV or Stereo components. Option #2: TV STAND and SWINGING FLOATER You can buy our Swinging Floater (sold separately) and combine with the TV Stand. So you can position your Flat Panel TV above the console and swivel left-or-right for optimum viewing control.
-
Page 10: Tipping Restraint Hardware
Model # RTGAVC54BRC TIPPING RESTRAINT HARDWARE Note: We have included one Tipping Restraint Hardware bag for this unit. When properly installed, this restraint can provide protection against the unexpected tipping of the unit due to small tremors, bumps or climbing. We strongly recommend mounting this hardware to a wall stud and your unit when installing. -
Page 11: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every VAS Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
