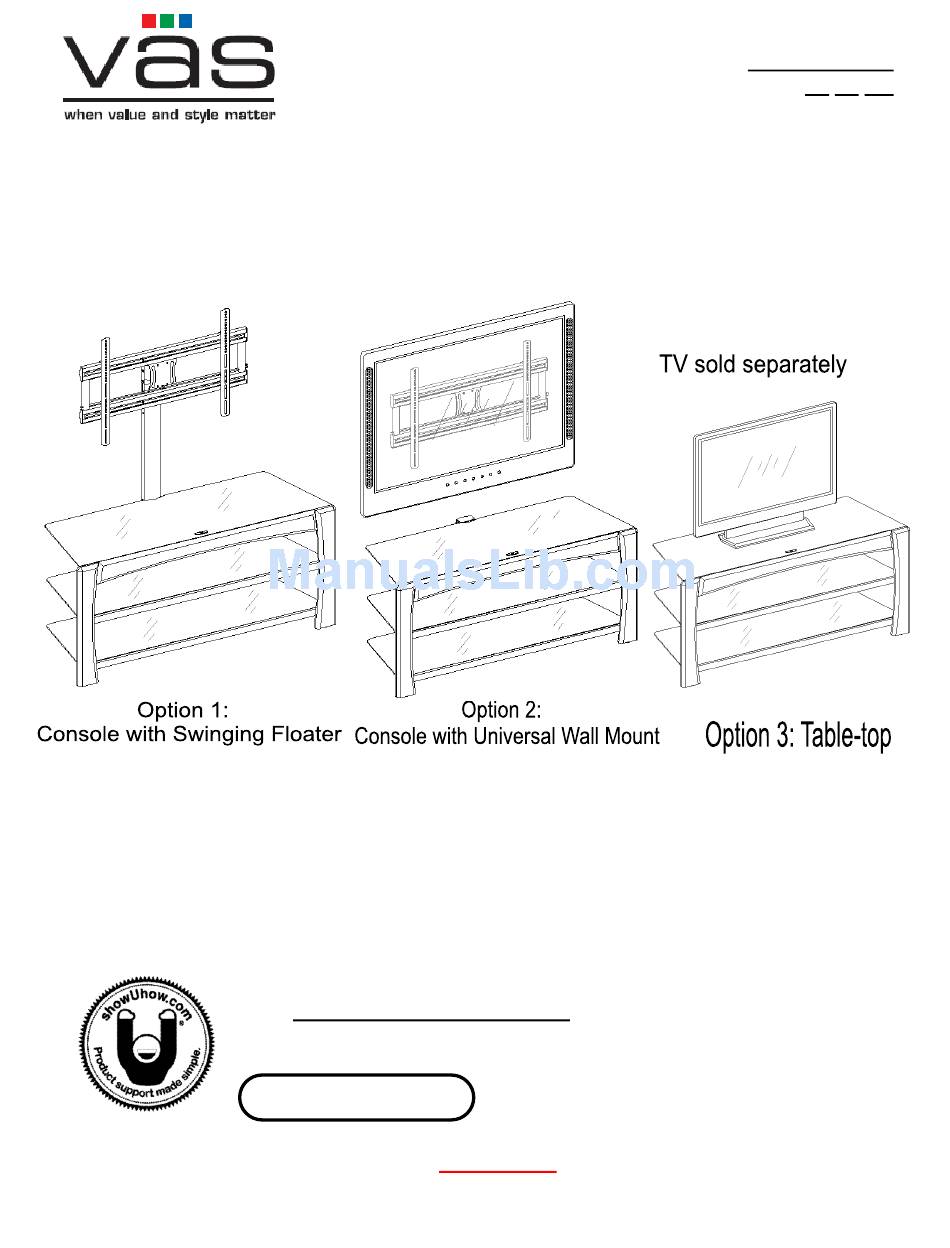

50" 3-in-1 Console (XL50-4MC)
This item is designed to be a 3-in-1 configuration. Please choose which of the 3 options suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this
will give you the opportunity to use this TV Console for different configurations in case you decide
to upgrade your TV set in the future.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this item to
the Retailer Store. Please call our toll free customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
www.whalenfurniture.com
ONLINE:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc.
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
XL50-4MC
LOT NUMBER:
DATE PURCHASED:
parts@whalenfurniture.com
EMAIL:
Page 1
/
/
Factory No. 56-12089
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VAS XL50-4MC
Summary of Contents for VAS XL50-4MC
- Page 1 LOT NUMBER: DATE PURCHASED: 50" 3-in-1 Console (XL50-4MC) This item is designed to be a 3-in-1 configuration. Please choose which of the 3 options suits your needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this will give you the opportunity to use this TV Console for different configurations in case you decide to upgrade your TV set in the future.
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: VAS FURNITURE CATALOG: 50" 3-IN-1 CONSOLE (XL50-4MC) DATE OF MANUFACTURE: APRIL, 2011 MADE IN CHINA FITS UP TO MOST 56”...
- Page 3 Model # XL50-4MC Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1) D- Long Spine (1)
- Page 4 Model # XL50-4MC Parts and Hardware List (2) 3/4” Bolt (3) 1-1/4” Bolt (1) Suction Cup (23+1 extra) (36+1 extra) (8+1 extra) (4) Hex Nut (5) Lock Washer (6) Flat Washer (4+1 extra) (44+2 extra) (48+2 extra) (7) Large Flat Washer (6) (8) 2-1/2”...
- Page 5 Model # XL50-4MC Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Choose the option suits your needs. Locate Long Spine (D) or Short Spine (D1) on a scratch free surface with 2 round holes facing up as shown in detail #1.
- Page 6 Model # XL50-4MC Assembly Instructions 3. Pick up Right Leg (F) and align the back inserted nuts with the end bracket on Top Shelf Frame (A) and the pre-drilled holes on lower Shelf Frame (B & C) simultaneously. Attach in place using two 3/4”...
- Page 7 Model # XL50-4MC Assembly Instructions 5. Stand the unit upright. 6. For a stable structure, align and attach Front Left and Right Support (G & H) in place to connect the Top Shelf Frame (A) with Left & Right Legs (E & F) using the 3/4” Bolts (2) with Washers (5 &...
- Page 8 Model # XL50-4MC Assembly Instructions 8. In case of uneven floor, Floor Levelers are provided at the bottom of Legs (E & F). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in detail #4.
- Page 9 Model # XL50-4MC Assembly Instructions for Table-top 9. Put Suction Cups (1) firmly into the top holes of 3 Shelf Frames (A, B & C) and metal tabs on Middle Shelf Frame (B) as shown in detail #5. 10. Tilt and insert Glass Shelves (L) and Top Glass (K) in place starting with Bottom Glass Shelf as shown in detail #5.
- Page 10 Model # XL50-4MC Assembly Instructions for Table-top 11. Position the assembled Table-top in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly. As shown in detail #6.
- Page 11 Model # XL50-4MC A s s e m b l y I n s t r u c t i o n s f o r O p t i o n 1 : C o n s o l e w i t h S w i n g i n g F l o a t e r attach Swiveling Bracket (N) to the top of Long Spine (D) using six 3/4”...
- Page 12 Model # XL50-4MC Assembly Instructions for Option 1: Console with Swinging Floater 14. Hold the flat side of XYZ Mounting Frame (O) onto the Swiveling Bracket (N) ensuring the hook on the side of Mounting Frame is bottom. Align and attach by threading four 3/4” Bolts...
- Page 13 Model # XL50-4MC Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #18. 15. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 14 Model # XL50-4MC Mounting Monitor Bracket to a television with a curved / recess back 18. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 15 Model # XL50-4MC Assembly Instructions for Option 1: Console with Swinging Floater MAKE SURE ALL BOLTS ARE TIGHT AND FLOATER POST IS AT A 90 DEGREE ANGLE AND USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO INSTALLATION OF TV.
- Page 16 Model # XL50-4MC Assembly Instructions for Option 1: Console with Swinging Floater 23. Repeat steps 9 and 10 to install Top Glass (K) and Glass Shelves (L) in place. 24. Carefully move the console and position in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly.
- Page 17 Model # XL50-4MC The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the stand, disregard the following steps.
- Page 18 Model # XL50-4MC Assembly Instruction for installing XYZ Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK 29. Use the XYZ Mounting Frame (O) as a template, mark six holes location on the wall, three in the top row and three in the bottom row of slots. Make sure that the holes are level and there is at least 6”...
- Page 19 Model # XL50-4MC Assembly Instructions 32. Once the Monitor Brackets (P) are attached onto the back of television, ask for assistance to lift the television up to the XYZ Mounting Frame (O). Place the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of Mounting Frame. Proceed to center the television.
-
Page 20: Care And Maintenance
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from the date of purchase. Every VAS Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
