User Manual PROFINET Master / Serial
Document code: MN67B70_ENG
Revision 1.000
Page 14 of 31
Industrial Electronic Devices
RS422:

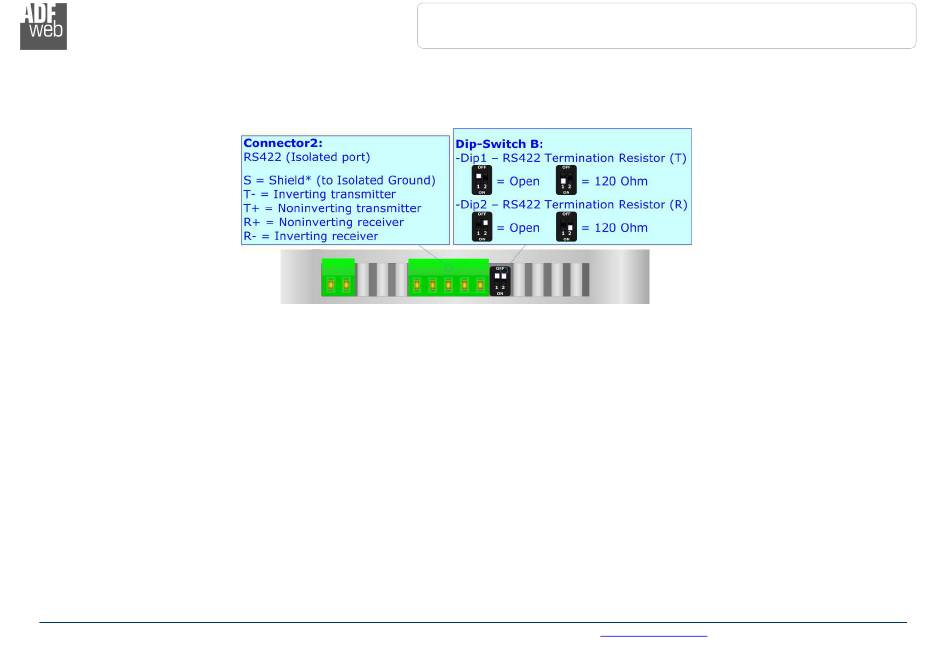

For terminating the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
ADFweb.com Srl – IT31010 – Mareno – Treviso
