Lightware HDMI-3D-OPT-TX210A Quick Start Manual page 2

Software control – Using Lightware Device Controller (LDC)
The device can be controlled from a computer through the USB or RS-232
ports using Lightware Device Controller. Please download the application
from www.lightware.eu, install on a Windows PC or a Mac OS X and connect
to the device.
Restore factory default settings
1. Keep the Show me button pressed for 10 seconds, the LEDs start to blink faster.
2. Release the button, then press it 3 times quickly; factory default settings are restored:
Crosspoint setting (Video/Audio) HDMI input
SC laser output Enabled
Emulated EDID Dynamic
RS-232 mode Passthrough
RS-232 control protocol LW2
RS-232 port setting 57600 BAUD, 8, N, 1
Fiber optical output settings
ON: high-speed (AV signal) and low-speed (serial) communication are transmitted.
STANDBY: only low-speed (serial) communication is transmitted.
Model comparison
Optical interface
Serial communication USB KVM
CT
HDMI-3D-OPT-TX210A
CT / PT
HDMI-3D-OPT-TX210RAK
CT = Control mode, PT = Pass-through mode
* USB KVM function is under development, it will be added by firmware upgrade.
 AV signal is always transmitted on fiber optical interface.
Maximum cable extension distances
OM1 OM2 OM3
(62.5/125) (50/125) (50/125)
1080p@60Hz 24 bpp 250 m 600 m 1200 m
1080p@60Hz 36 bpp 150 m 400 m 800 m
4096x2048@30Hz 24 bpp Not supported 350 m 700 m
Firmware upgrade
Lightware Device Updater (LDU) is an easy and comfortable way to keep
your device up-to-date. Steps of firmware upgrading are the following:
1. Download and install LDU software from the company's website
www.lightware.eu.
2. Get the latest firmware package from Lightware Support (support@lightware.eu).
3. Establish the connection between the extender and the computer with a mini-USB cable.
4. Start LDU software and select the Extender mode.
5. Load the new firmware file.
6. Please read the Instructions related this model.
7. Select your upgradeable device.
8. Review the list of selected devices. Please check "Factory reset" option to be disabled
to avoid settings loss. If you want to set all settings to default values, enable this option.
9. Start firmware upgrading.
10. Please wait until it is completed and device rebooted.
11. Ready.
 In certain cases new firmware version requires a factory reset to apply all new
features in the device. In this case "Factory reset" option is enabled by default and not
changeable by the user.

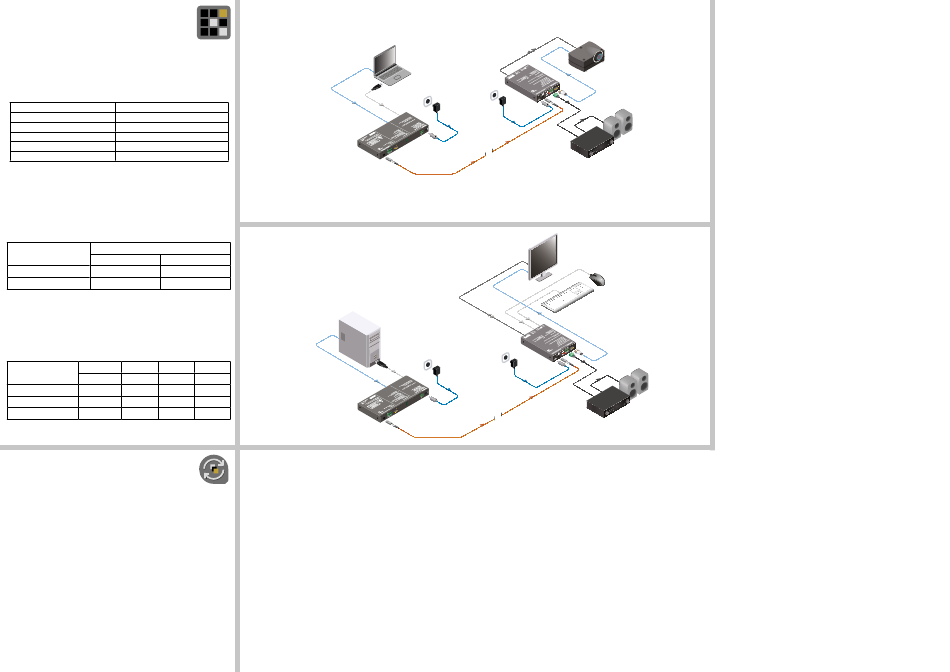

Typical application
HDMI-3D-OPT-TX210A
Laptop
HDMI
HDMI-3D-OPT-TX210A
Typical application
HDMI-3D-OPT-TX210RAK
-
Yes *
OM4
HDMI
(50/125)
2500 m
HDMI-3D-OPT-TX210RAK
1300 m
1100 m
RS-232
HDMI
HDMI-3D-OPT-RX150RA
USB
5V DC
5V DC
Power
Power
adaptor
adaptor
: 2.1 mm
PIN
-23 2
RS DC
1A
12V
TX RX
ACT IVE
LIVE ER LIN K
FIB LAS 232 ER
RS-
2 IN T
DIO MI OU
6 AU HD
E
MM TUR
SC AP ER T
ER OU TPU
LAS
Single fiber multimode
optical cable up to 2500m
Monitor
USB
RS-232
HDMI-3D-OPT-RX150RA
PC
5V DC
USB
Power
5V DC
adaptor
Power
adaptor
: 2.1 mm
PIN
2
RS -23
1A DC
12V
RX TX
IVE
LIVE ER ACT K
LAS ER LIN
RS- FIB 232
DIO 2 IN OU T
6 AU HD MI
MM TUR E
SC AP T ER
ER TPU
LAS OU
Single fiber multimode
optical cable up to 2500m
Projector
Analog audio
Power amplifier
USB
Mouse
Keyboard
HDMI
Analog audio
Power amplifier
