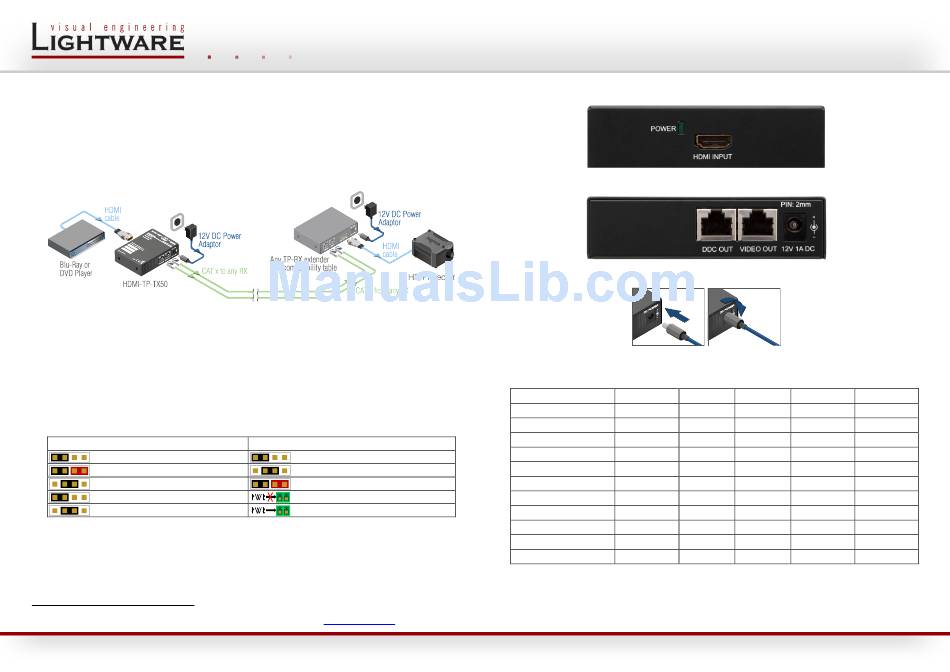

Lightware HDMI-TP-TX50 Quick Start Manual

Introduction
The HDMI-TP-TX50 is a CAT5, CAT6 and CAT7 Twisted Pair cable transmitter supporting
HDCP encryption and HDMI 1.3a compliant signals.
Typical application
HDMI-TP-TX50 and RX extender pair
Installation
1. Connect the source (e.g. computer) to the HDMI INPUT connector,
2. Connect the receiver or a compatible Lightware device
a. VIDEO OUT with a Twisted Pair cable
b. DDC OUT with another Twisted Pair cable
3. Supply the unit with +12V 1A DC. The available power supply settings:
TX jumper configuration
only local adaptor
local adaptor + remote send to RX
only remote receive from RX
only local adaptor
only remote receive from Input Board
Status LED
Connected power source is indicated by the front panel LED.
1
Please check the TP Extension System Cross Compatibility Table in the
www.lightware.eu
For technical support contact support@lightware.eu
1
to the
RX jumper or Matrix Input Board configuration
only local adaptor
only remote receive from TX
local adaptor + remote send to TX
12V DC IN not connected to Input Board
12V DC IN connected to Input Board
www.lightware.eu website
HDMI-TP-TX50 front view
HDMI-TP-TX50 back view
Locking DC plug: Twist 90° clockwise to lock
Maximum cable length
Resolution TMDS Freq CAT5e UTP CAT6 UTP CAT6 S/FTP CAT7 S/FTP
640 x 480 25,2 MHz
800 x 600 40,0 MHz
1024 x 768 65,0 MHz
1280 x 720p 74,4 MHz
1920 x 1080i 74,4 MHz
1280 x 1024 108,2 MHz
1920 x1080p 149,1 MHz
1920 x 1200 153,4 MHz
1600 x 1200 162,4 MHz
1920 x 1080p 30 bit 186,3 MHz
1920 x 1080p 36 bit 223,6 MHz
NR: Not Recommended
HDMI-TP-TX50
Quick Start Guide
65 m 75 m 80 m 80 m
65 m 70 m 75 m 75 m
60 m 65 m 75 m 75 m
60 m 65 m 75 m 75 m
60 m 65 m 75 m 75 m
50 m 65 m 70 m 70 m
30 m 55 m 65 m 65 m
20 m 50 m 65 m 65 m
NR 45 m 65 m 65 m
NR NR 40 m 60 m
NR NR 10 m 20 m
Document revision:1.0
