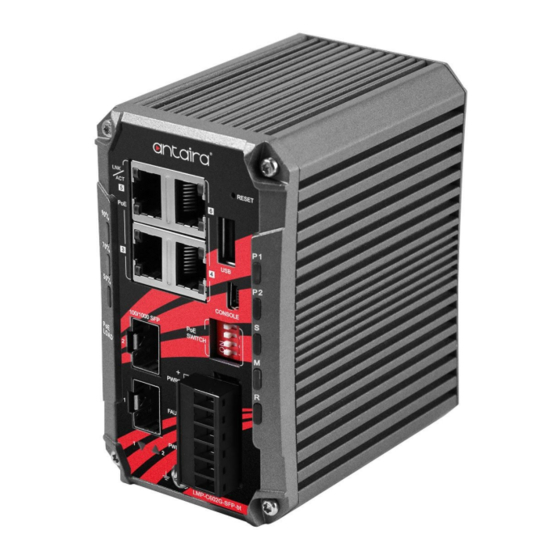

- Page 1 LMP-C602G-SFP-bt-V2 Series 6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots Hardware Manual Version 1.0 (February 2021) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Industrial Ethernet Switches Industrial Grade Managed Ethernet Switches Hardware Manual Version 1.0 (February 2021) The manual supports the following models: ● LMP-C602G-SFP-bt-V2 LMP-C602G-SFP-bt-T-V2 ● ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Product Software Features 2 1.3 Package Contents 2 1.4 Safety Precaution 3 2 Hardware Description 4 ... -
Page 6: Overview
90W/port and 2*100/1000 dual rate SFP slots for fiber connections. The LMP-C602G-SFP-bt-V2 series is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. There are also two wide operating temperature models ... -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy Network Management Web UI based management, SNMP v1/v2/v3, Serial Console ... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring ... -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product series: (W x D x H) is 64.9mm x 89.8mm x 110mm ... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the ... - Page 11 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Red On System booting The system is ready. There are no events On occurring. Green Flashing When the user presses the reset button Status (S) The system is working normally, but the software ...
-
Page 12: Poe Port Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 On Connected to network, 10/100Mbps Flashing Networking is active Amber Off Not connected to network IEEE 802.3bt connection On (Single Signature PD Class 5~8 / Dual Signature ... - Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 2.3 - PoE Budget Overloaded LED Sequence After the PoE port is recovered from the PoE budget overload event, the PoE LED of the port will act ...
- Page 14 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 **IEEE 802.3af/at: Amber **IEEE 802.3bt: Green Cable Short Event When the working PD encounters a cable short event, the PoE port LED will act cyclically as below until ...
-
Page 15: Dip Switch
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 After the PoE port is recovered from the Dual PD Fail event, the PoE LED of the port will act cyclically as below until the event indicator is clear manually: ... -
Page 16: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 * Note: When the relay is triggered because of event 2~5, the relay contact alarm will update the status every 30 seconds. If there is no event happening for 30 seconds, the relay contact alarm will be turned off. If the ... -
Page 17: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / TP0+ 3 / TP1+... -
Page 18: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.10 Wiring the Power Inputs C aution: Please follow the steps below when inserting the power wire. A ttention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. ... -
Page 19: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.11 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.13 . By inserting the wires, it will detect the fault status including power failure or port link failure ... -
Page 20: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 2.12 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in ... -
Page 21: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see F igure 3.1 to learn how to install the DIN-Rail on the switch. ... -
Page 22: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown ... - Page 23 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in F igure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 24: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: C aution: This device is intended for indoor use. ... -
Page 25: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the ... -
Page 26: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, ... - Page 27 Antaira Technologies - Industrial Ethernet Switches LMP-C602G-SFP-bt-V2 Series - Hardware Manual - v1.0 VLAN Group 4095 IGMP Group 1024 Port Interface 4*10/100/1000BaseTx w/4*PoE++ (90W/Port) Ethernet Ports Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection SFP Ports 2*100/1000 SFP slots ...
- Page 28 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 23 ...
