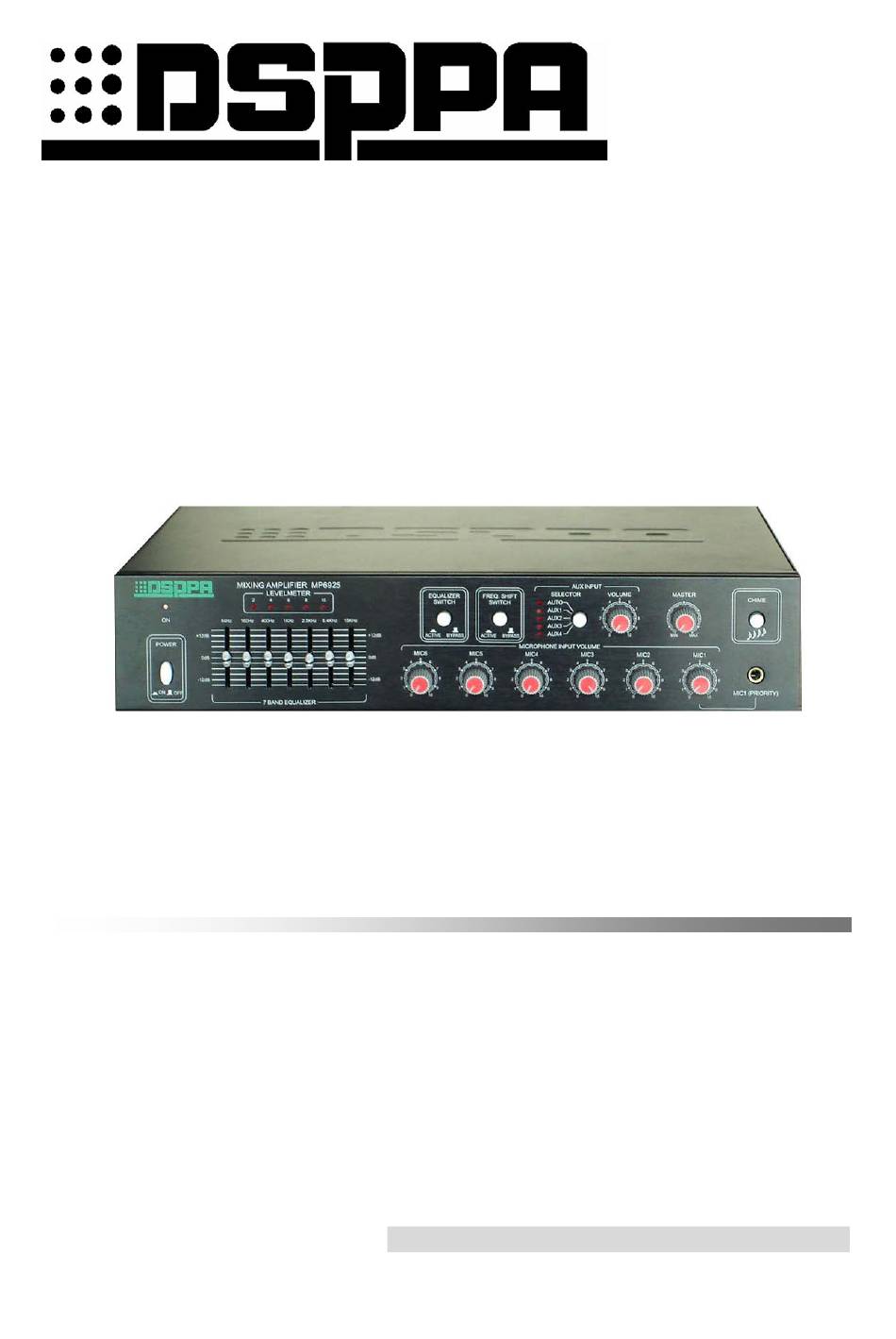

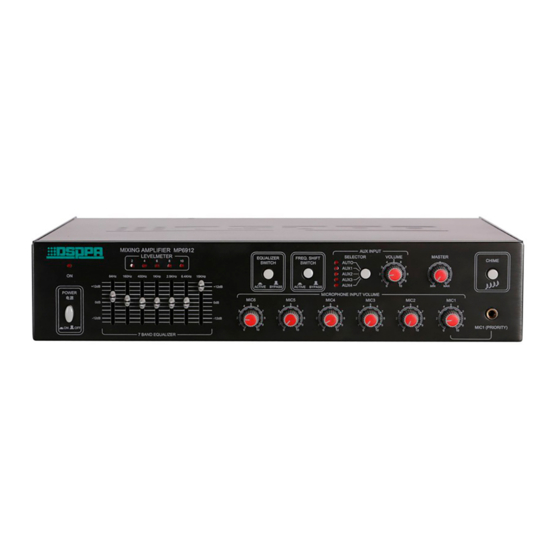

Power Amplifier for PA Conference System
Operation Manual
Welcome to enter DSPPA PA system. Please read the manual carefully before use to facilitate
your better application of the equipment.
D S P PA A c o u s t i c Te c h n o l o g y C o . , L t d .
MP6906
MP6912
MP6925
MP6935
http：//www.DSPPA.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DSPPA MP6906
Summary of Contents for DSPPA MP6906
- Page 1 MP6935 Operation Manual Welcome to enter DSPPA PA system. Please read the manual carefully before use to facilitate your better application of the equipment. D S P PA A c o u s t i c Te c h n o l o g y C o . , L t d .
-
Page 2: Table Of Contents
Fire brigade/PA system Conference power amplifier contents General Description ..........................3 About Power Amplifier of PA Conference System ..............3 Performance Features ........................3 Brief Description of Product ........................ 4 Description of Front Panel......................4 Description of Rear Panel ......................5 Operation Instructions .......................... -
Page 3: General Description
MP69 series products have rated voltage outputs of 100 V, 70 V, and rated resistance outputs of 4 Ω, 8 Ω, 16 Ω. They are divided into four kinds of power model 60 W(MP6906), 120 W(MP6912), 250 W(6925) and 350 W(6935). -
Page 4: Brief Description Of Product
Fire brigade/PA system Conference power amplifier Brief Description of Product Description of Front Panel 12 13 ⑴ Power switch and power indicator Press down the power switch button to turn on the power, and the power indicator is lit when the power is turned on; If press down the power switch button again to pop up the switch, the power is turned off, and the power indicator is distinguished when the power is turned off. -
Page 5: Description Of Rear Panel
Fire brigade/PA system Conference power amplifier ⑿ Microphone frequency shift switch Press down the switch for the frequency shift function; Press the switch again to pop up for the direct mode. ⒀ Channel status display indicator When the channel selecton button selects a certain audio source input channel, the indicator of the corresponding channel will be lit and display. -
Page 6: Operation Instructions
Fire brigade/PA system Conference power amplifier ⑸ AUX output port As an line output port, connecting the external power amplifier. ⑹ AC220 V power supply fuse If the fuse is damaged, please use the fuse of same specifications for replacement. ⑺... -
Page 7: Example Of Sound Box Connection
Fire brigade/PA system Conference power amplifier Example of loud speakers Connection Ω OUTPUT 4-16 SPEAKER OUTPUT 100V 4-16Ω SPEAKER SPEAKER 8Ω 8Ω 16Ω 70V OUTPUT 100V OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT 100V 4-16Ω 100V 4-16Ω MATCHING MATCHING MATCHING MATCHING TRANS TRANS TRANS TRANS... -
Page 8: Adjustment Operation Of Equalizer
Fire brigade/PA system Conference power amplifier Adjustment Operation of Equalizer The equipment is provided with two kinds of output modes, i.e. the equalizer available output and bypass output, and it is available to shift the output mode by press "EQUALIZER SWITCH" button at the front panel. -
Page 9: Microphone And Priority Function
Fire brigade/PA system Conference power amplifier weaken them a little by adjusting the knob. The adjusting scope is 0～-30 dB. The adjustment is set at -30 dB before dispatch from the plant. To avoid the strong whistle of microphones, the equipment build in a frequency shift function especially: Press down the selection switch "FREQ. -
Page 10: Precautions For After-Sales Service
As to the subjects or precautions not mentioned in the manual, please contact the distributor or visit the web page of our company: //www. dsppa. com when necessary. Please contact the service personnel of the company (or the distributor) if there is any failure... -
Page 11: Packing List
650 W Dimensions 430×368×88 mm Gross weight 12.5 kg 16 kg 15.5 kg 16.5 kg Net weight 11 kg 14.9 kg 14 kg 15kg No prior notice will be given for modification of specifications in any. DSPPA ACOUSTIC TECHNOLOGY CO. LTD.
