Version 1.0
Niva
Two People
Lowline 1500mm
fantasticfurniture.com.au
Required

Advertisement

loading
Need help?

Need help?

Do you have a question about the Niva Lowline 1500mm and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for fantastic furniture Niva Lowline 1500mm

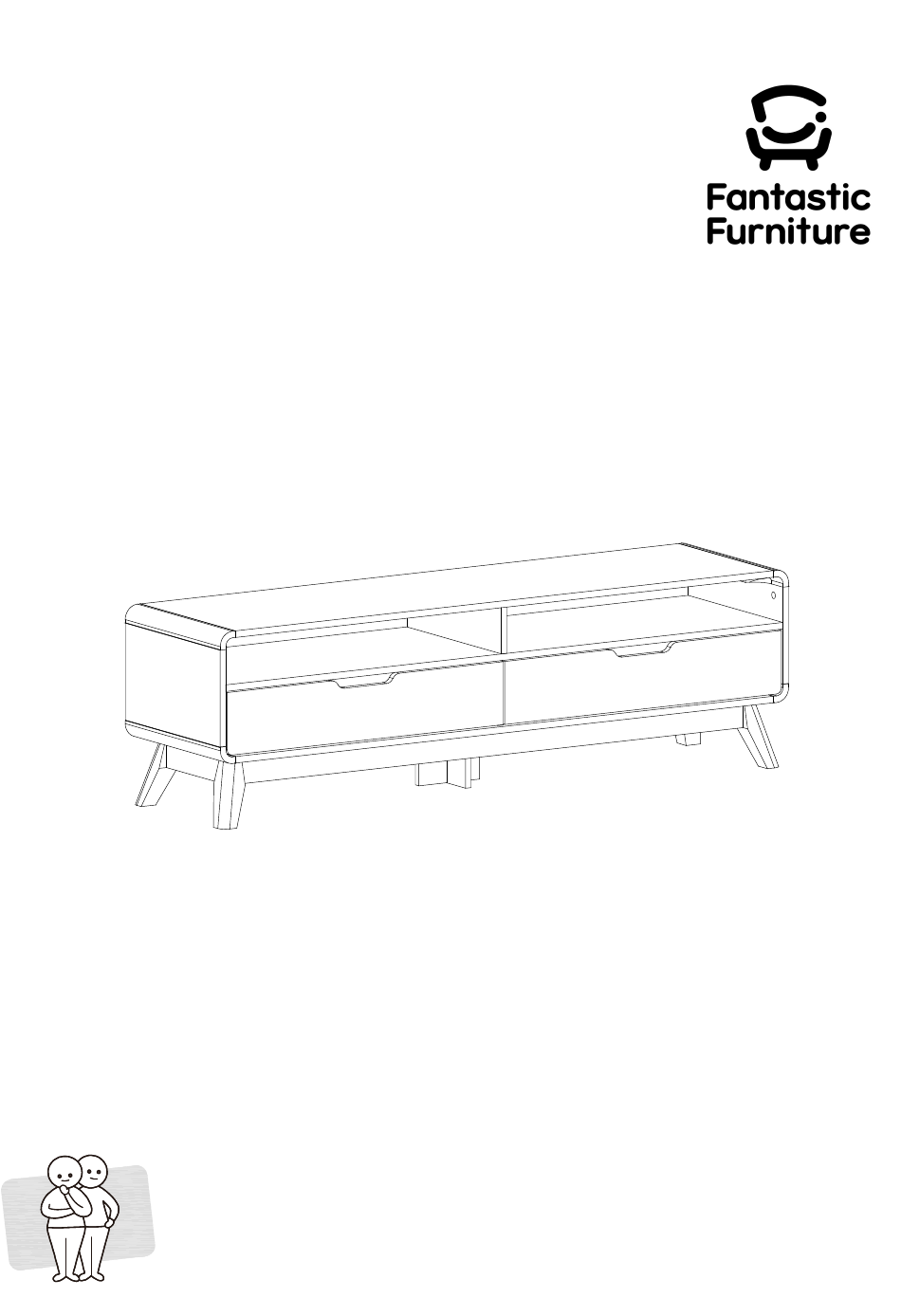

  • Page 1 Version 1.0 Niva Two People Lowline 1500mm fantasticfurniture.com.au Required...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for you chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
  • Page 4: What You Need

    What you need to assemble the product Othe tools you need Flat head screwdriver; Phillips head screwdriver; Mallet Top Panel (P1) Right Side Panel Upper Divider (P3) Panel (P8) Left Side Panel (P2) Shelf (P10) Back Panel (P20) Lower Divider Panel (P9) Bottom Panel (P4) Short Rail...
  • Page 5 Hardware Pack 44 x Dowels 19x Screws 12 x Small Cam 57 x Cam Bolts 45 x Big Cam (H3) (H5) Nuts (H4) (H1) Nuts (H2) #10x38 mm 4 x Felt Feet 1 x Adjustable 24 x Screws 4 x Slides 4 x Screws (H8) Foot (H10)
  • Page 6 Step 1 You will need 13 x Cam bolts Phillips head (H1) screwdriver (P4) Screw 13 x cam bolts (H1) into bottom panel (P4) as shown, tighten with a Phillips head screwdriver. Step 2 (P6) (P6) You will need 14 x Dowels Mallet (H3) (P7)
  • Page 7 Step 3 You will need 8 x Cam bolts Phillips head (H1) screwdriver (P5) 4 x Felt feet (H8) Screw 2 x cam bolts (H1) into each leg (P5) using a Phillips head screwdriver. Attach 1 x felt foot (H8) onto each leg (P5) as shown. This is how a cam nut works..
  • Page 8 (P5) Step 5 (P5) You will need 4 x Big cam Flat head (P7) nuts (H2) screwdriver (P7) (P5) (P5) Position 2 x long rails (P7) between the assembled units as shown. Insert 4 x big cam nuts (H2) into long rails (P7), using a flat head screwdriver turn clockwise to lock.
  • Page 9 Step 7 You will need (P18) (P19) 2 x Dowels Phillips head (H3) screwdriver #10x38 mm (P19) 1 x Screw (H5) (P18) Insert 2 x dowels (H3) into small middle leg (P19) and big middle leg (P18). Attach small middle leg (P19) to big middle leg (P18) with 1 x screw (H5), tighten with a Phillips head screwdriver.
  • Page 10 Step 9 You will need 6 x Cam bolts Phillips head (P4) (H1) screwdriver #10x38 mm 4 x Screws (H9) Screw 6 x cam bolts (H1) into bottom panel (P4) as shown, tighten with a Phillips head screwdriver. Screw 4 x screws (H9) into bottom panel (P4), tighten with a Phillips head screwdriver. Step 10 You will need (P1)
  • Page 11 Step 11 You will need (P8) 4 x Cam bolts 16 x Dowels (H1) (H3) Phillips head Mallet screwdriver (P10) (P20) Insert 4 x dowels (H3) into upper divider panel (P8) as shown. Insert 4 x dowels (H3) into shelf (P10) as shown. Insert 8 x dowels (H3) into back panel (P20) as shown.
  • Page 12 Step 12 You will need Separate the 4 sets of slide runners (H7-2) and slide tracks (H7-1) from slides (H7) by following the steps below: Extend the slide runner all the way forward. #6x12 mm Press the plastic release lever of the slide down and 8 x Cam bolts 6 x Screws (H1)
  • Page 13 H7-1 Step 13 Note the position of the rubber stopper Second hole H7-1 You will need from back Laminated edge 6 x Screws 4 x Dowels (H6) (H3) (P9) Phillips head Mallet screwdriver (P9) Note the screw fixing hole is di erent to the first runner.
  • Page 14 Step 15 Laminated These hole are facing up edge You will need (P9) (P20) Round corner 2 x Screws Phillips head (H5) screwdriver Attach lower divider panel (P9) to back panel (P20) with 2 x screws (H5) using a Phillips head screwdriver as shown.
  • Page 15 Step 17 (P2) You will need (P10) Flat head screwdriver (P20) Position left side panel (P2) to assembled unit as shown. Insert 4 x big cam nuts (H2) into panels (P10) & (P20). Turn clockwise to lock using a flat head screwdriver. Step 18 (P3) You will need...
  • Page 16 Two People Step 19 You will need (P3) Required (P2) Flat head screwdriver (P20) Position assembled unit (P9) onto bottom panel (P4) as shown. (P4) Insert 6 x big cam nuts (H2) into panels (P2) , (P3) & (P20), turn clockwise to lock using a flat head screwdriver.
  • Page 17 Step 22 You will need (P16) (P17) Screw 6 x cam bolts (H1) into each drawer fronts (P16) and (P17), using a Phillips head screwdriver as shown. Step 23 You will need (P11) (P11) Flat head screwdriver (P15) (P15) (P12) (P12) (P17) (P16)
  • Page 18 Step 24 You will need (P14) Phillips head (P11) screwdriver (P15) (P12) (P13) Slide drawer base (P14) into the grooves of panels of drawer assembly. Attach drawer back (P113) to each drawer assembly with 6 x screws (H5), using a Phillips head screwdriver as shown. Step 25 H7-2 You will need...
  • Page 19 Step 26 (P17) (P16) Move inner ball bearing track to front of slide track (H7-1). Gently insert drawer slide runner into ball bearing Track. H7-2 H7-1 Position drawer so that slide runners (H7-2) aligns with slide tracks (H7-1) as shown. Gently push drawer into the closed position.
  • Page 20: Job Complete

    Step 27 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 20...
