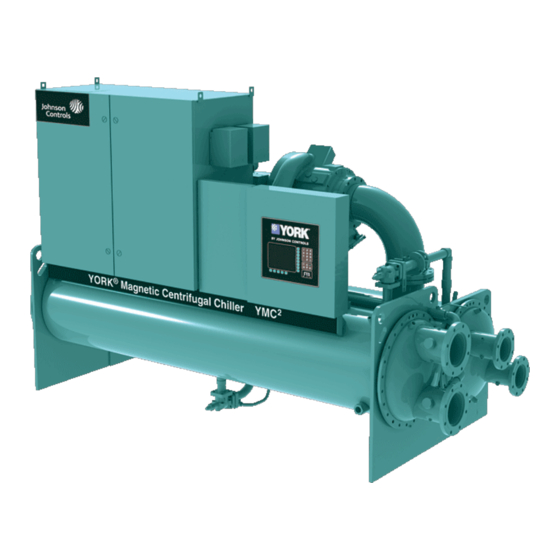

York YMC2 Manual

Startup Checklist
Customer: ______________________________________
Address: _______________________________________
Phone: _________________________________________
JCI tel no: _______________________
Chiller model no: _______________________________
The work (as checked below) is in process and will be completed by:
The following work must be completed in accordance with the operation manual:
A. General
Review the Installation Checklist, Form 160.78-CL1, to
validate the attributes have been completed. Attach a
completed copy for records.
1. Water connection inlet and outlet are at proper
locations, have hangers nearby that support their
weight and show no visible strain on chiller nozzles
2. Relief piping is complete and puts no strain on the
relief valves ..............................................................
3. Verify the chiller is charged with refrigerant
Pressures match R-134a saturation for ambient
temperature ..............................................................
4. Verify the evaporator pressure transducer isolation
valve is open ............................................................
5. Verify the condenser pressure transducer isolation
valve is open ............................................................
6. Verify the discharge pressure transducer (stall
transducer) isolation valve is open ...........................
7. Verify the compressor discharge isolation valve is
open .........................................................................
8. Verify that the liquid line isolation valve is open .......
JOHNSON CONTROLS
Supersedes 160.78-CL2 (421)
Startup Checklist
Job name: ______________________________________
Location: _______________________________________
Customer order no: _______________________________
JCI order no: ______________________ JCI contract no: ___________________
Unit serial no: __________________________________
10. Verify the motor stator liquid cooling angle valve
11. Verify the motor stator liquid cooling strainer service
12. Verify the drive shipping antifreeze solution is
13. Verify that the motor electrical connections are
14. Check the chiller for refrigerant leaks at joints ..........
15. Ensure jumper installed on OptiView™ TB6 terminal
16. If the unit is equipped with SC-EQ, set up in
YMC - Mod A
2
_____________ / ____________ /
Month Day
9. Verify the hot gas bypass line isolation valve, if hot
gas is present, is open ..............................................
just above the shells, below the motor is open .........
capped ball valve above the motor is open ...............
drained and fill with inhibited water that shipped
with the chiller, as outlined in the 160.00-M12
manual ......................................................................
tightened per the label on the back wall of the
drive.......................... ................................................
24 to 25 .....................................................................
accordance with 450.50-N1 Section 2 .....................
Form 160.78-CL2 (1121)
___________
Year
1
