- Page 1 TABLE OF CONTENTS BB – SKY – BBW MODEL LIFT DEVICE BB series 1150 – 1350 – 1370 – 1401 SKY series: 1000M – 1150L – 1250 – 1395 – 1400 BBW series: 905M – 1030L – 1350 – 1600...
-
Page 2: Table Of Contents
Lift DEVICE TABLE OF CONTENTS BB – SKY – BBW MODEL GENERAL WARNINGS ......................3 MANUFACTURER ........................3 MARKING ........................... 3 IDENTIFICATION OF OPERATORS ..................4 STRUCTURE AND USE OF THE MANUAL ................5 SAFETY – GENERAL RULES ....................7 GENERAL DESCRIPTION ...................... -
Page 3: General Warnings
GENERAL WARNINGS BB – SKY – BBW MODEL MANUFACTURER AUTOLIFT SRL Via Trentin 8 – 46020 Pegognaga (MN) - Italy Tel. +39 0376 550375 – info@autoliftsrl.com MARKING The lift device is manufactured in compliance with the relevant EC directives applicable on the date of entering the market. -
Page 4: Identification Of Operators
This applies also to any tampering or modifications by the operator of parts or components of the lift which no longer guarantee its safety and reliability for the transported persons. Autolift Srl declines all liability in the event of such situations. -
Page 5: Structure And Use Of The Manual
Before performing any operations on the lift, users and operators must carefully read the instructions given in this publication. In the event of doubt over the correct interpretation of the instructions, contact the AUTOLIFT srl technical department to obtain the required clarifications. - Page 6 Lift DEVICE GENERAL WARNINGS BB – SKY – BBW MODEL THE INDICATIONS MARKED BY THIS SYMBOL REPRESENT A POTENTIAL HAZARD, WITH THE RISK OF PHYSICAL DANGER FOR THE USERS. THE INDICATIONS MARKED BY THIS SYMBOL ARE DEEMED PARTICULARLY IMPORTANT FOR THE OPERATION OF THE LIFT. THE INDICATIONS MARKED WITH THIS SYMBOL ARE IMPORTANT FOR COMMUNICATION BETWEEN THE MANUFACTURER AND THE USER.
-
Page 7: Safety - General Rules
Examine the hydraulic lift carefully before each use. If there are any hazardous conditions or if you notice unusual noises or movements, do not use the lift and contact an Autolift agent or authorised workshop for the necessary inspections and repairs. - Page 8 Unauthorised persons must not stand nearby during the use of the lift, and must not stand between the vehicle and the platform, even for quick checks with the platform at a standstill. These checks and adjustments must be performed exclusively by authorised Autolift staff.
-
Page 9: General Description

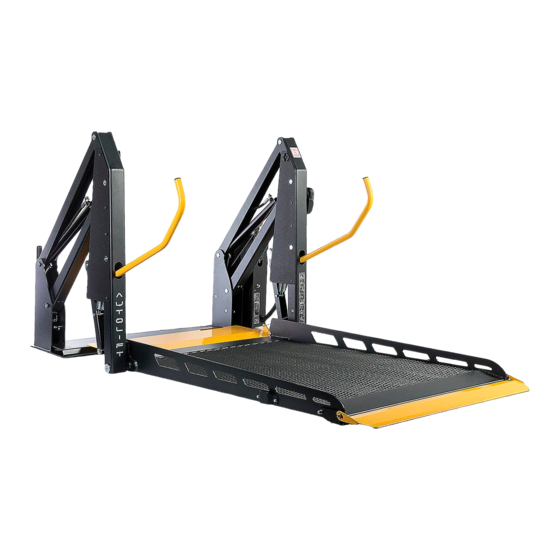

Lift DEVICE GENERAL DESCRIPTION BB – SKY – BBW MODEL COMPONENTS Vehicle fixing base Front flap Jointed drive arms Gripper handles Hydraulic power unit Rear flap Drive cylinders Safety microswitch and cam Load platform The drawing shown represents all models: BB – SKY – BBW... -
Page 10: Dimensions
Lift DEVICE GENERAL DESCRIPTION BB – SKY – BBW MODEL DIMENSIONS The drawing shown represents all models: BB – SKY – BBW... - Page 11 Lift DEVICE GENERAL DESCRIPTION BB – SKY – BBW MODEL 1150 1350 1370 1401 1140 1140 1240 1240 1030 1030 1130 1130 1250 1470 1500 1520 1150 1350 1370 1400 1000M 1150L 1250 1395 1400 1070 1140 1140 1240 1030 1030 1130 1125...
-
Page 12: Technical Data
Lift DEVICE GENERAL DESCRIPTION BB – SKY – BBW MODEL TECHNICAL DATA 1150 1350 1370 1401 Capacity Weight Power supply Volt 12-24 12-24 12-24 12-24 Max. pressure bars Platform 1150X800 1350X800 1370X800 1400X900 Max. overhang Aux emergency pump Airborne noise dB(A) <... -
Page 13: Field Of Use
Lift DEVICE FIELD OF USE BB – SKY – BBW MODEL INTENDED USE The lift is designed for installation on the loading floor of a vehicle designed for transportation of the disabled in wheelchairs, within the limits of the performances and capacities indicated in the technical characteristics. -
Page 14: Safety Devices
Lift DEVICE SAFETY DEVICES BB – SKY – BBW MODEL Gripper handles for the disabled passenger Internal stop flap Load and stop flap for lifting Hydraulic power unit safety devices: a) Overload limit valve b) Anti-tipping pressure switch Guard IT IS FORBIDDEN TO ELIMINATE, REMOVE OR TAMPER WITH THE EXISTING SAFETY SYSTEMS. -
Page 15: Warning Signs
Lift DEVICE WARNING SIGNS BB – SKY – BBW MODEL THE LIFT HAS THE FOLLOWING MARKINGS Do not lubricate, clean or adjust the device while moving Do not remove the guards Risk of crushing IT IS FORBIDDEN TO TAMPER WITH/REMOVE THE MARKINGS. -
Page 16: Installation
Lift DEVICE INSTALLATION BB – SKY – BBW MODEL RECEIPT AND INSPECTION On receipt of the lift, you must perform the following inspections: Check that the supply corresponds to the specifications ordered and the transport document. Check that the packaging is intact and that no parts have been broken or damaged during transportation. -
Page 17: Transport
Lift DEVICE INSTALLATION BB – SKY – BBW MODEL TRANSPORT The lift must be transported using a vehicle (van, lorry, etc.) of an appropriate size and capacity. The lift is shipped by the manufacturer packaged in a cardboard box or wooden crate anchored to a wooden pallet. -
Page 18: Handling
INSTALLATION ON A VEHICLE Installation on a vehicle must be performed exclusively by Autolift staff or authorised installers. Autolift declines all liability to damage to persons, property or the machine due to installation on a vehicle not performed by authorised persons. -
Page 19: Normal Use
MODEL NORMAL USE The AUTOLIFT SKY electro-hydraulic lift control is a wired portable remote control known as push- button panel, equipped with two round protruding buttons indicating the two operating states. The fundamental purpose of the push-button panel is to control the four distinct lift operations (open - down - up - close) in just two control buttons. - Page 20 Lift DEVICE BB – SKY – BBW MODEL The lift stops automatically when it reaches the height of the floor of the vehicle. To stow the platform in the vertical position in the installation compartment press the button with the up arrow again.
-
Page 21: Use In Emergency Conditions
To lift the platform, insert the pump arm extension (1) in the metal cylinder protruding from the hydraulic power unit (2). Move the arm alternately up and down (3) to raise the platform to the point of full closure. After the operation, replace the extension (1) in the housing and contact your Autolift agent or authorised installer. -
Page 22: Opening - Down
Lift DEVICE CLEANING BB – SKY – BBW MODEL 7.2.2 OPENING - DOWN To open and lower the platform using the manual hydraulic release pipe (2), use the emergency metal slider, again with the manual pump extension (1). The extension has a plastic cap on one end and a specifically milled section on the other end. To open and lower the platform, turn the extension anti-clockwise. -
Page 23: Cleaning
Lift DEVICE CLEANING BB – SKY – BBW MODEL The lift must be cleaned by hand using a cloth soaked in non-aggressive detergent and then rinsed with a cloth dampened with water. DO NOT USE AGGRESSIVE DETERGENTS. DO NOT USE WATER JETS OR HOT WATER JET CLEANERS. -
Page 24: Maintenance
In the event of an immediate safety hazard, the user must place the lift out of use until the fault has been eliminated. Defects or damages must be reported to the manufacturer AUTOLIFT srl which will take any appropriate measures. -
Page 25: Frequency Of Controls
Lift DEVICE MAINTENANCE BB – SKY – BBW MODEL FREQUENCY OF CONTROLS Frequency Operation Daily Monthly Yearly Frame check Operation check Controls check Oil level check Emergency devices check Plates and labels check Joints check ... -
Page 26: Demolition And Disposal
Lift DEMOLITION AND DEVICE BB – SKY – BBW DISPOSAL MODEL When disposing of the machine, comply with the procedures imposed by the law in force. Generally the machine should be disassembled to group homogeneous materials together. Specific materials such as lubricants, electrical / electronic components, must be disposed of according to specific laws. -
Page 27: Troubleshooting
Lift DEVICE TROUBLESHOOTING BB – SKY – BBW MODEL The troubleshooting table below helps to rapidly solve any operating faults. For any malfunctions that are not listed below or are due to mechanical and/or hydraulic breakages, contact your nearest authorised service centre. ANOMALY FAULT REMEDY... - Page 28 Lift DEVICE TROUBLESHOOTING BB – SKY – BBW MODEL ANOMALY FAULT REMEDY Push-button panel broken Replace the push-button panel Electronic control unit broken Replace the electronic control unit The platform descent is not properly Lowering valve screw not tight Close the lowering valve controlled Lowering valve broken Replace the lowering valve...
-
Page 29: Wiring Diagram
Lift DEVICE WIRING DIAGRAM BB – SKY – BBW MODEL... -
Page 30: Hydraulic Diagram
Lift DEVICE HYDAULIC DIAGRAM BB – SKY – BBW MODEL... -
Page 31: Spare Parts
Lift DEVICE SPARE PARTS BB – SKY – BBW MODEL For spare parts, contact the Autolift Srl spare parts department by submitting the following form. - Page 32 SPARE PARTS REQUEST FORM FROM SPARE PARTS DEPARTMENT Fax +39 (0)376 553728 – mail: info@autoliftsrl.com DESCRIPTION PRIORITY URGENT NORMAL SHIPMENT PAYMENT DESTINATION SIGNATURE DATE...
