AUTOLIFT I-Swim3 Instruction Manual

Swimming pool lift for persons with disability

Advertisement

Quick Links

FOR PERSONS WITH DISABILITY
DEVICE
MODEL
SWIMMING POOL LIFT
I-Swim3
ORIGINAL INSTRUCTIONS
00
REVISION
2022
YEAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-Swim3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AUTOLIFT I-Swim3

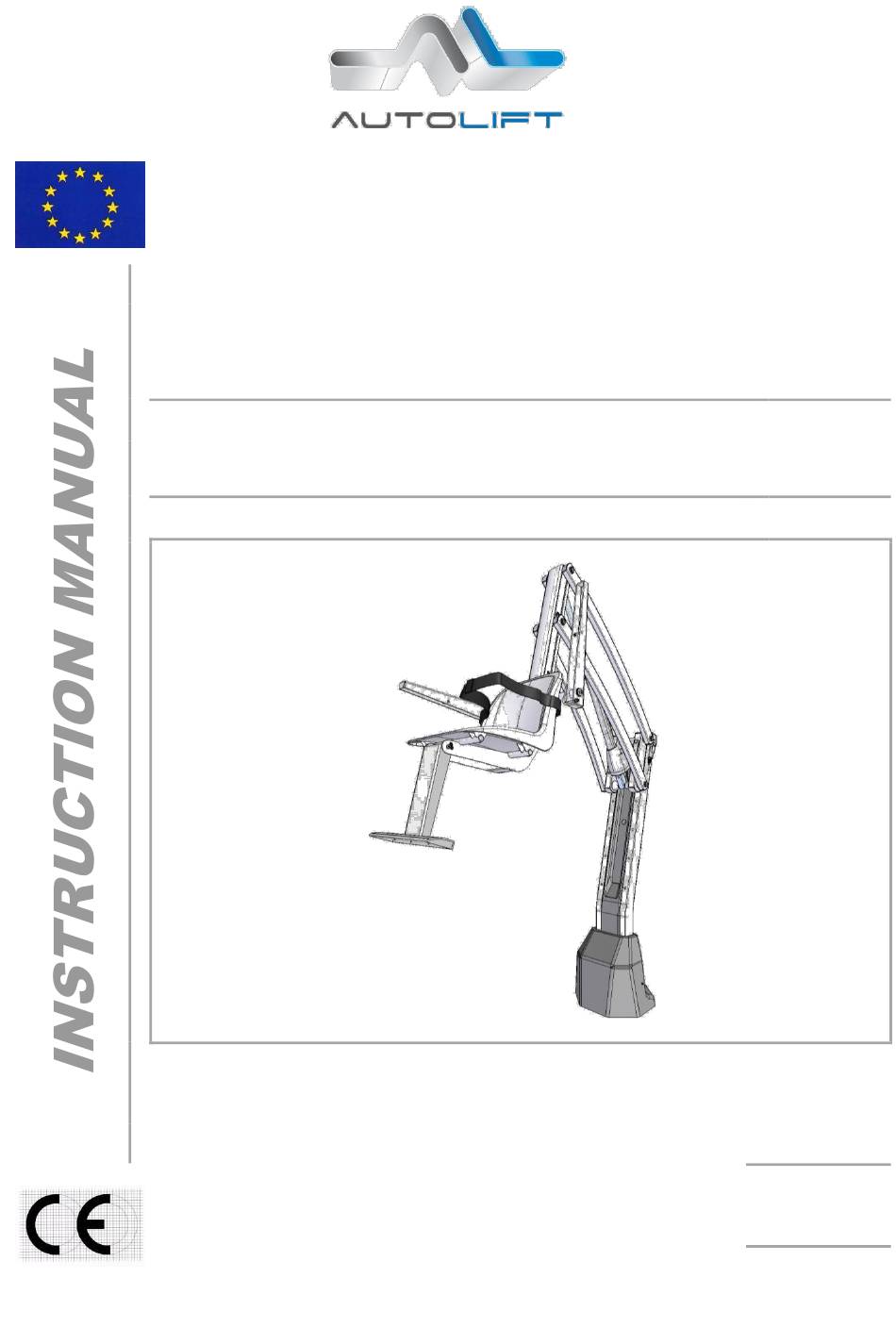

  • Page 1 SWIMMING POOL LIFT FOR PERSONS WITH DISABILITY DEVICE I-Swim3 MODEL ORIGINAL INSTRUCTIONS REVISION 2022 YEAR...
  • Page 2: Table Of Contents

    Swimming Pool Lift DEVICE INDEX i-swim3 MODEL GENERAL WARNINGS ........................3 MANUFACTURER IDENTIFICATION ..................... 3 MARKING ..............................3 DECLARATION OF CONFORMITY ......................4 IDENTIFICATION OF AUTHORIZED PERSONNEL ................5 STRUCUTURE AND USE OF THE MANUAL ..................5 LIST OF ENCLOSURES .......................... 6 SAFETY –...
  • Page 3: General Warnings

    Swimming Pool Lift DEVICE GENERAL WARNINGS i-swim3 MODEL MANUFACTURER IDENTIFICATION AUTOLIFT SRL Via B. Trentin, 8 – 46020 Pegognaga (MN) - Italy Tel. +39 0376 550375– info@autoliftsrl.com MARKING The lifting device is manufactured in accordance with the relevant Community Directives and applied at the time of placing on the market the same.
  • Page 4: Declaration Of Conformity

    Via B. Trentin, 8 – 46020 Pegognaga (MN) - Italy Tel. +39 0376 550375 – info@autoliftsrl.com Declares under its own responsibility that the medical device: NAME ............SWIMMING POOL LIFT TO TRANSFER DISABLED PERSONS MODEL ............i-swim3 SERIES ............…...………………..Class 1 CLASSIFICATION YEAR OF CONSTRUCTION……………..2022...
  • Page 5: Identification Of Authorized Personnel

    In addition to the duty to follow the instructions given in this manual, the operators have the obligation not to use the lift and report to their managers in charge or, in the absence of these, directly to the manufacturer AUTOLIFT srl, any deficiency or potentially hazardous situation which should occur.
  • Page 6: List Of Enclosures

    Swimming Pool Lift DEVICE GENERAL WARNINGS i-swim3 MODEL This manual consists of 45 pages, including the cover, and equipped with attachments (see par.1.6). Data and drawings are provided as example, the manufacturer, to pursue a policy of constant development and updating of the product, can make changes without prior notice.
  • Page 7: Safety - General Rules

    Swimming Pool Lift DEVICE GENERAL WARNINGS i-swim3 MODEL SAFETY – GENERAL RULES OPERATORS SHOULD READ THIS INSTRUCTION BEFORE USING THE LIFT. The staff involved in the operation must be in perfect physical and psychological conditions. Do not approach and do not put hands near moving parts.
  • Page 8: General Description

    Swimming Pool Lift DEVICE GENERAL DESCRIPTION i-swim3 MODEL COMPONENTS 1. Seat 2. Armest 3. Safety belt 4. Footrest 5. Motor casing Column Seat support Lifting actuator 10. Remote control 11. Control unit 12. Battery 13. Column assembly 14. Anchoring system 15.
  • Page 9 Swimming Pool Lift DEVICE GENERAL DESCRIPTION i-swim3 MODEL Anchoring system The anchoring system must be ordered separately; a version with square tube and a version with round tube are available. SQUARE FOOT SQUARE FOOT ROUND FOOT ROUND FOOT ANCHORING ANCHORING...
  • Page 10: Dimensions

    Swimming Pool Lift DEVICE GENERAL DESCRIPTION i-swim3 MODEL DIMENSIONS Configurations The arms can be positioned at five different heights in order to adapt the lifter to different types of swimming pool. The seat can be adjusted vertically up to 160mm.
  • Page 11 Swimming Pool Lift DEVICE GENERAL DESCRIPTION i-swim3 MODEL Dimensions for configuration with stretcher. Page 11 of 45...
  • Page 12: Technical Data

    Swimming Pool Lift DEVICE GENERAL DESCRIPTION i-swim3 MODEL TECHNICAL DATA Structure Material Aluminium / stainless steel Shell material Power supply 24 V d.c. Battery capacity 2,9 Ah Autonomy of the battery 50 lifting cycles Protection degree IP44 Room temperature +5°C ÷ +40°C...
  • Page 13: Field Of Use

    Swimming Pool Lift DEVICE FIELD OF USE i-swim3 MODEL PROVIDED USE The lift, placed at poolside, must be used only for the transfer of disabled persons inside the pool and for their exit. The positioning of the machine at the poolside should be without person on board, by an authorized operator.
  • Page 14: Safety Devices

    Swimming Pool Lift DEVICE SAFETY DEVICES i-swim3 MODEL On the lift there are the following safety devices. Emergency stop Safety belt 3 Carter IT IS FORBIDDEN TO TAKE OFF, REMOVE OR MODIFY THE EXISTING SECURITY DEVICES. Page 14 of 45...
  • Page 15: Warnings

    Swimming Pool Lift DEVICE WARNINGS i-swim3 MODEL ON THE LIFT THERE ARE THE FOLLOWING WARNINGS. IT IS FORBIDDEN THE USE OF THE LIFT TO PERSONS NOT TRAINED AND NOT AUTHORIZED TO LEAVE THE LIFT WITH PERSON ON BOARD TO CARRY AND / OR LIFT THINGS OR ANIMALS TO TRANSIT AND USE THE LIFT IN THE PRESENCE OF STEPS, ROUGHNESS, BRITTLE AND INCLINED FLOORS.
  • Page 16: Personal Safety Devices

    Swimming Pool Lift PERSONAL SAFETY DEVICE i-swim3 DEVICES MODEL As necessary or required by the relevant legislation in force, use custom security equipment. The personal safety devices are equipment designed to be worn by the worker to protect him against specific risks than can arise due to the type of working effected.
  • Page 17: Residual Risks

    Swimming Pool Lift DEVICE RESIDUAL RISK i-swim3 MODEL In spite of all the protection devices have been taken in the design of the lift, including complementary protection devices, there are still residual risks that are described below. Risk of falling for the user: during the positioning phase in the water and the lifting one, the user must be seated with the safety belt on.
  • Page 18: Installation

    Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL RECEIPT AND INSPECTION Upon receipt of the lift carry out the following checks: - Check whether the delivery agrees with the order specifications and to the transport document. - Make sure the packaging is undamaged and that no parts are damaged or broken during transport.
  • Page 19: Handling

    Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL HANDLING Handling of the packed lift must be effected through manual forklift, forklift, etc. The equipment used for safe movement and handling must be of adequate capacity. PERSONNEL EMPLOYED FOR HANDLING MUST WEAR: SAFETY SHOES WITH IRON TOE AND ANTI-SLIP SOLE.
  • Page 20: Positioning

    Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL POSITIONING The lift is provided in parts to be assembled according to the following instructions. For the assembly of the parts is necessary the presence of two operators. Personnel employed for opening the package must wear: safety shoes with iron toe and anti-slip sole and suitable gloves.
  • Page 21 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Drilling and installation of the bushing The drilling and positioning measurements are given in figure “B”. 1. Drill out with a Ø100 core bit to a depth of around 170mm. 2. Then remove the plug and prepare the hole for the installation of the bushing, cleaning off any debris.
  • Page 22 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Warnings Once the cement has cured, the cap must be removed in order to install the lifter; this is performed by pulling it via the dedicated screw/knob. It is advisable to replace the cap whenever the lifter is not in position, in order to prevent infiltration of dirt or foreign bodies.
  • Page 23 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Provision for fastening of the foot (optional) The foot of the lifter is equipped with two fastening holes which prevent rotation inside the bushing. The fastening operation is optional, depending on user requirements.
  • Page 24 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Installing the support foot on the lifter • Insert the two 10/10 shims (1). • Fasten the foot (2) to the column using 8 no. M10x20 hex head screws (3), tightening to a torque of 18Nm.
  • Page 25 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Installation • Ensure that the cement is cured. • Insert the tube of the support foot into the bushing installed in the floor. • Check the stability of the structure. Fig. F Fastening to ground (optional) •...
  • Page 26 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Positioning and fastening of the lifting arms • Select the positioning for the lifting arm in accordance with the following scheme, depending on the type of pool edge. Position 1 Position 2 Position 3...
  • Page 27 Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL • Insert the bracket (1) in the existing holes. • Position the fastening plate (2). • Tighten the lock nuts (3) to a torque of 62 Nm. Fig. I Page 27 of 45...
  • Page 28: Height Adjustment Of The Seat

    Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL Electrical connection of the actuator • Connect the wire (1) present on the column to the actuator (2), paying attention to the direction of the connector (3). Fig. L HEIGHT ADJUSTMENT OF THE SEAT In order to best adapt the lift to the type of pool, it is possible to adjust the height of the seat.
  • Page 29: Quick Release System For Mobile Seat And Stretcher

    Swimming Pool Lift DEVICE INSTALLATION i-swim3 MODEL QUICK RELEASE SYSTEM FOR MOBILE SEAT AND STRETCHER The quick release of the mobile seat or stretcher is fastened to the lifting column in the same way as the fixed seat, that is with four removable pins.
  • Page 30: Use

    Swimming Pool Lift DEVICE i-swim3 MODEL CONTROL PANEL AND REMOTE CONTROL On the machine are present: A. remote control for lifting / lowering and rotation of the user's location. The remote control is used directly by the person sitting on the machine or by an eventual assisstant.
  • Page 31 Swimming Pool Lift DEVICE i-swim3 MODEL In normal operation the display shows the remaining DISPLAY battery power. If the emergency button (1) is pressed, the orange LED (2) STOP warning light will come on and the machine will stop. The emergency stop button can be pressed only by an assistant and / or a supervision operator.
  • Page 32: Preliminary Operations Before Use

    Swimming Pool Lift DEVICE i-swim3 MODEL PRELIMINARY OPERATIONS BEFORE USE ALWAYS FOLLOW THE SPECIFIC INTERNAL SAFETY PROCEDURES ISSUED BY THE USER. IN THE DESCRIPTION OF THIS CHAPTER THE REFERENCE NUMBER OF THE DEVICES ARE REFERRED TO THE PREVIOUS CHAPTER 9.1.
  • Page 33: Use Description

    Swimming Pool Lift DEVICE i-swim3 MODEL USE DESCRIPTION AS REGARDS THE NOMENCLATURE OF THE LIFT PLEASE REFER TO CHAPTER 2.1 OF THIS MANUAL. The user must reach the poolside by means of his wheelchair and position himself close to the lift.
  • Page 34 Swimming Pool Lift DEVICE i-swim3 MODEL From the control panel, with the lifting button, move the seat to the maximum height. From the control panel, with the rotation control, position the seat perpendicular to the pool side. With the lowering button, proceed to the lowering until the immersion in water.
  • Page 35 MODEL For the raising from the pool, the user must proceed by reversing the operations described above. THE SEAT AS SUPPLIED BY AUTOLIFT SRL IS EQUIPPED WITH HOLES FOR WATER DRAINAGE MADE IN SUCH WAY NOT TO AFFECT ITS STRENGTH.
  • Page 36: Cleaning

    Swimming Pool Lift DEVICE CLEANING i-swim3 MODEL The lift must be manually cleaned with a cloth moistened with mild detergent (such as multi-purpose sanitizing environmental Amuchina HACCP) and then rinsed off with a cloth moistened with water. DO NOT USE AGGRESSIVE DETERGENT.
  • Page 37: Maintenance

    Swimming Pool Lift DEVICE MAINTENANCE i-swim3 MODEL ALL THE ORDINARY AND EXTRAORDINARY MAINTENANCE MUST BE CARRIED OUT BY PROPER SPECIALIZED TECHNICIANS (SEE CHAPTER 1.4). BEFORE ANY OPERATIONS ARE PERFORMED ON THE ELECTRICAL COMPONENTS AND ELECTRICALLY OPERATED MOVING PARTS, THE BATTERY MUST BE REMOVED FROM THE CONTROL UNIT. A SIGN MUST THEN BE APPLIED TO WARN THAT THE MACHINE IS UNDERGOING MAINTENANCE.
  • Page 38 Swimming Pool Lift DEVICE MAINTENANCE i-swim3 MODEL Place the battery (1) vertically on the appropriate wall support (2). • Green light (3) indicates that the battery charger properly connected electrical power network (100-240 V AC). • Orange indicator light (4) indicates that the battery is charging.
  • Page 39: Periodical Inspection

    DEFECTS OR DAMAGE MUST BE REPORTED TO THE MANUFACTURER AUTOLIFT SRL FOR APPROPRIATE ACTION. Page 39 of 45...
  • Page 40: Demolition And Waste Disposal

    Swimming Pool Lift DEMOLITION DEVICE i-swim3 AND WASTE DISPOSAL MODEL In the event of waste disposal of the machine, it is necessary to follow the procedures provided by the legislation in force. In general it is necessary to disassemble in order to obtain several groups of homogeneous materials.
  • Page 41: Spare Parts

    Swimming Pool Lift DEVICE SPARE PARTS i-swim3 MODEL DESCRIPTION CODE DA INSERIRE FOR A PARTICULAR PARTS OUT OF THIS LIST PLEASE CONTACT DIRECTLY AUTOLIFT SRL. Page 41 of 45...
  • Page 42 Swimming Pool Lift DEVICE SPARE PARTS i-swim3 MODEL DA INSERIRE Page 42 of 45...
  • Page 43: Attached Forms

    Swimming Pool Lift DEVICE ATTACHED FORMS i-swim3 MODEL • FORM FOR SPARE PARTS REQUEST • PERIODICAL INSPECTION REGISTER Page 43 of 45...
  • Page 44: Spare Parts Service

    FORM FOR SPARE PARTS REQUEST From SPARE PARTS SERVICE Fax +39 (0)376 553728 CODE TABLE NR. DESCRIPTION Q.TY POSITION   PRIORITY URGENT NORMAL SHIPMENT PAYMENT DESTINATION SIGNATURE DATE Page 44 of 45...
  • Page 45 PERIODICAL INSPECTION REGISTER MODEL i-swim2 Serial Nr. TYPE OF CONTROL RESULT REMARKS INSPECTION DATE DATE OF NEXT INSPECTION PERFORMER OF INSPECTION SIGNATURE Page 45 of 45...
