Warranty:
1. This swing must be assembled by two adults or more.
2. Tools are not included in packaging. The expected time required for assembly is usually
1-2hours.
3. Before assembly, ensure all parts are present and not damaged.
4. Assembly on a flat, hard, and debris-free surface.
5. Keep canopy swing away from fire or inflammable objects.
6. There are small parts are present in the packaging, do keeping small parts away from
children.
7. Children should be accompanied under the adults when use the swing.
8. Do not repack your swing until it is completely dry.
9. This swing must not be left erect in high wind conditions.
10. Do not place your swing in wet conditions where there is a risk of rust developing.
11. When not in use, wipe free of any dirt or loose objects, Do not use strong detergent or
abrasive cleaners.
12. When not in use, store in a cool, dry location away from sunlight.
Assembly Instructions

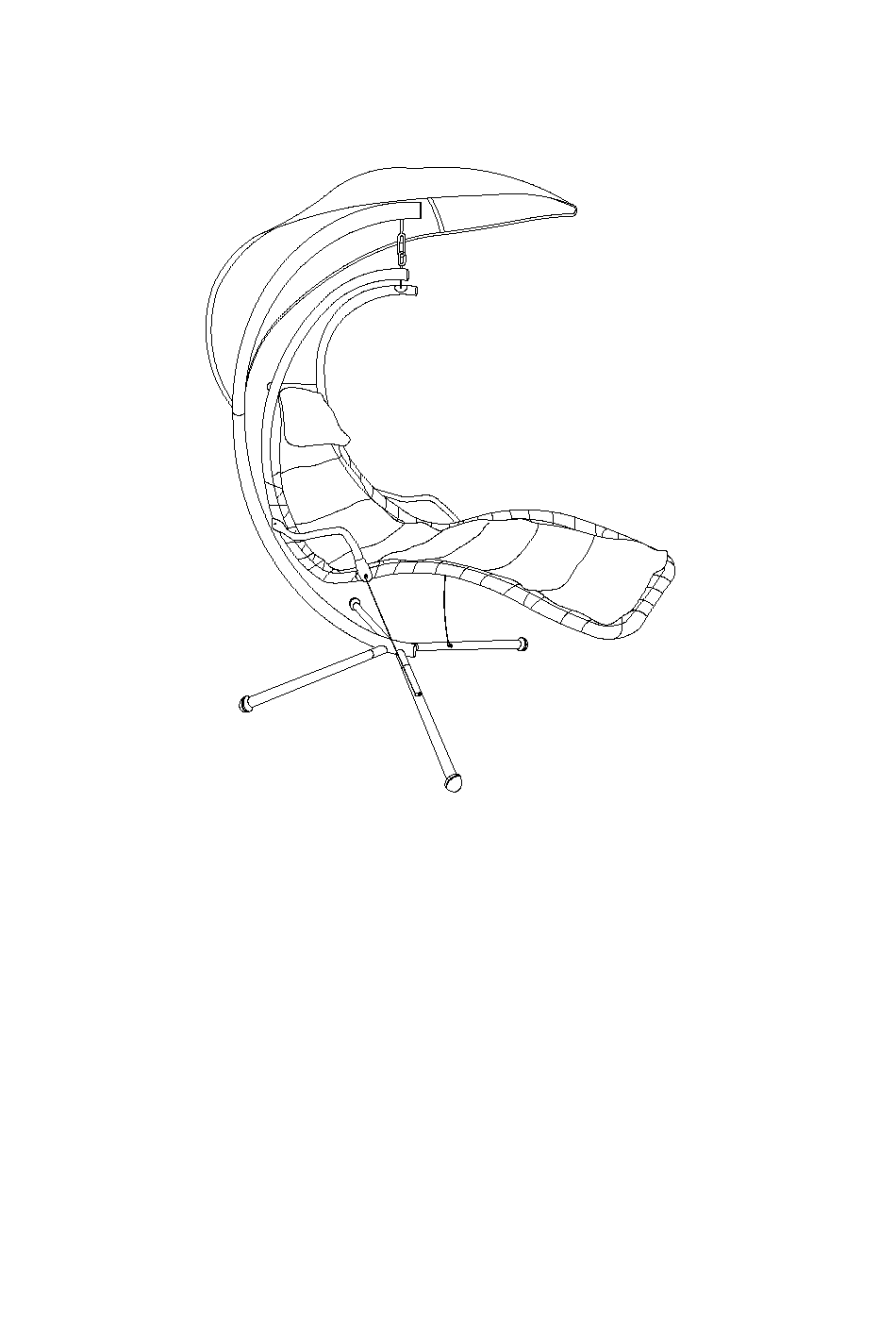

D-DNC490PST
Advertisement
Related Manuals for Sunjoy D-DNC490PST
Summary of Contents for Sunjoy D-DNC490PST
- Page 1 Assembly Instructions D-DNC490PST Warranty: 1. This swing must be assembled by two adults or more. 2. Tools are not included in packaging. The expected time required for assembly is usually 1-2hours. 3. Before assembly, ensure all parts are present and not damaged.
- Page 2 Parts List Description Qty. Description Qty. Top frame3 (long curved tube) Front leg tube Top frame4(long curved tube) Back leg tube Top frame upper connector Lower curve support tube Top frame base connector Upper curve support tube Steel cable Swing upper tube 1 Cover Swing upper tube 2 Pillow...
- Page 4 Step 1: Plug front/back leg tube A/A1 into B as Fig. 1 show. Step 2: Plug B into C and fix with CC and GG, cover the II on GG as Fig. 2 show. (Note – lock the down hole side). Step 3: Expand the cover N, have one end of I and J1(J2) pass through N and then plug in H as Fig.
- Page 5 Step 5: Plug E into U shpe tube F, make sure the snap buckle is locked in place as Fig 5 show. Step 5-1: Insert another side of E into D/D1 as Fig 5-1 show. Step 6: Connect the upper of M to D/D 1on G with AA/FF/HH as Fig. 6 show. (Note –...
- Page 7 Step 8: Plug the pre-assembled K into the tube connector on C as Fig. 8 show. Step 9: Insert the end of three connector J1(J2) into the tube of L, and attach L to C with CC, GG and II as Fig.9-1 show.
- Page 8 Place pad P on the sling pad Q (tie the rope on the upper part of R onto T), and then tie pillow O onto T. Now, the swing is ready to use！ Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes.
