Warning
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always
be followed to reduce the risk of personal injury and damage to the product. Please read all instructions before
assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important:
For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7
days a week, or
email to
Production Number: XXXXXXXX

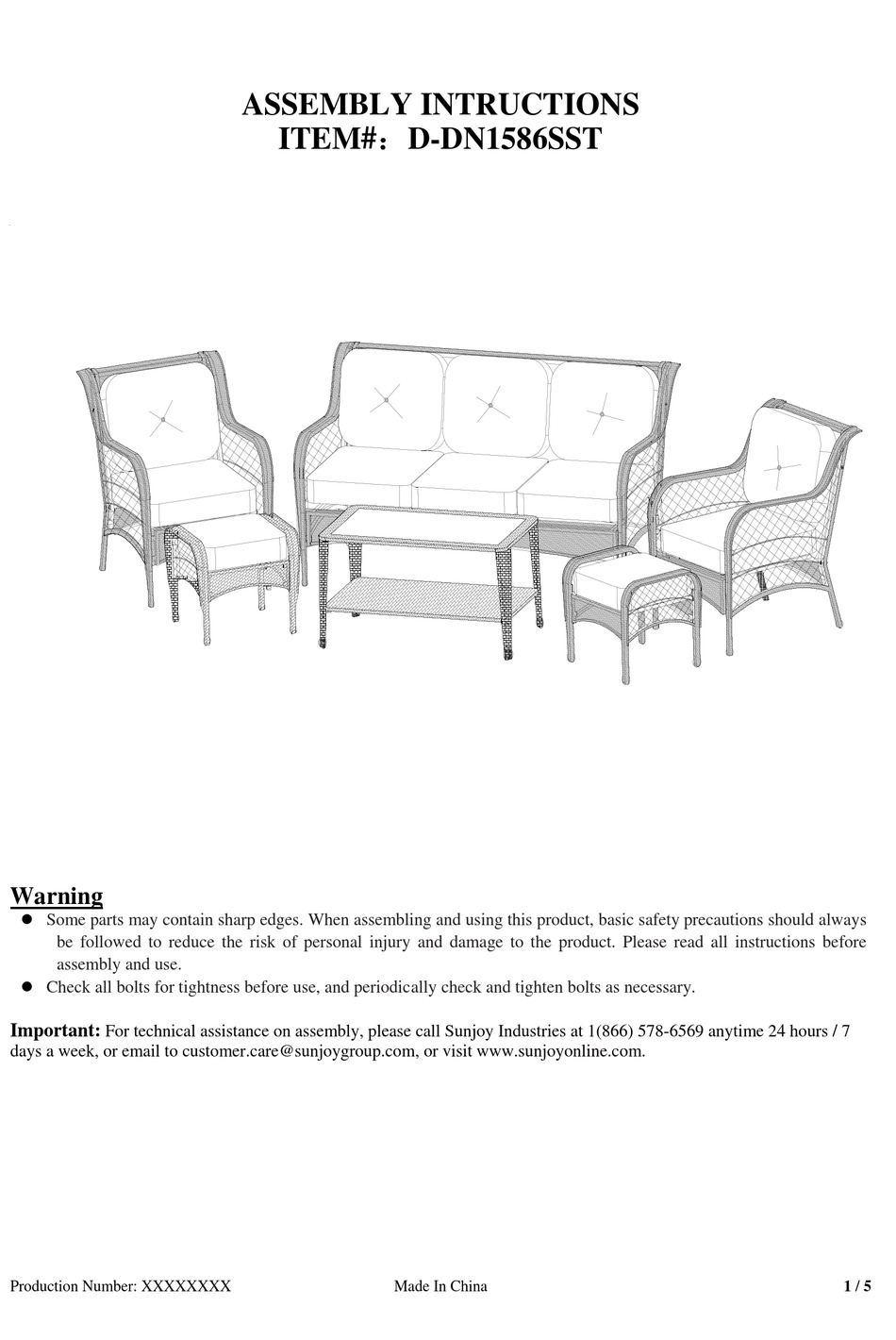

ASSEMBLY INTRUCTIONS
ITEM#：D-DN1586SST
customer.care@sunjoygroup.com,
or visit
www.sunjoyonline.com.
Made In China
1 / 5
Advertisement
Table of Contents
Related Manuals for Sunjoy D-DN1586SST
Summary of Contents for Sunjoy D-DN1586SST
- Page 1 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com,...
- Page 2 PARTS LIST Label Description Image of Part Left Armrest Right Armrest Sofa Back Sofa Seat Seat Cushion Back Cushion Chair Back Chair Seat Ottoman Leg Ottoman Seat Ottoman Cushion Country of Origin: China Production Number: 20187753...
- Page 3 Table Top Table Leg Table Base HARDWARE PACK Label Description Image of Part Washer M6 Screw M6x15 Screw M6x35 Wrench ASSEMBLY STEPS - Sofa Fig 1: Attach right armrest (A2) to sofa seat (C2) with Bolt (E) and Flat washer (D), use the same instruction to attach left armrest (A1) to sofa seat (C2), do not tighten at this moment.
- Page 4 ASSEMBLY STEPS - Chair Fig 4: Attach right armrest (A2) to chair seat (C) using bolt (E) and flat washer (D), use the same instruction to attach left armrest (A1) to chair seat (C), do not tighten at this moment. Fig 5: Attach chair back (B) to right armrest (A2) using bolt (E) and flat washer (D), and then attach chair back...
- Page 5 ASSEMBLY STEPS – Coffee Table Fig 8: Attach table legs (A) to table base (C3) using bolt (E) and flat washer (D), do not tighten at this moment. Fig 9: Attach table top (B3) to table legs (A) using bolt (E) and flat washer (D), tighten all the bolts with wrench (G), assembly is complete Care &...
