WARNING:
Repeated assembly can weaken the locking ability of the hardware. Periodically check all bolted
connections on your product to make sure they are tight and secure. Keep these instructions for future
reference.
Some parts may contain sharp edges. Wear protective gloves as necessary.
This unit is heavy. NO NOT assemble it alone. 2 adults should be needed for safe assembly.
This unit can be used both as a decorative and functional item, it does NOT accommodate any vehicles.
Set it up on the level ground.
Please do not return this product to the store. For technical assistance or replacement parts call
Sunjoy from 8:30 AM to 5:30 PM Eastern Time at 1-866-578-6569 or send email to
customer.care@sunjoydirect.com
ITEM# D-BG001PST

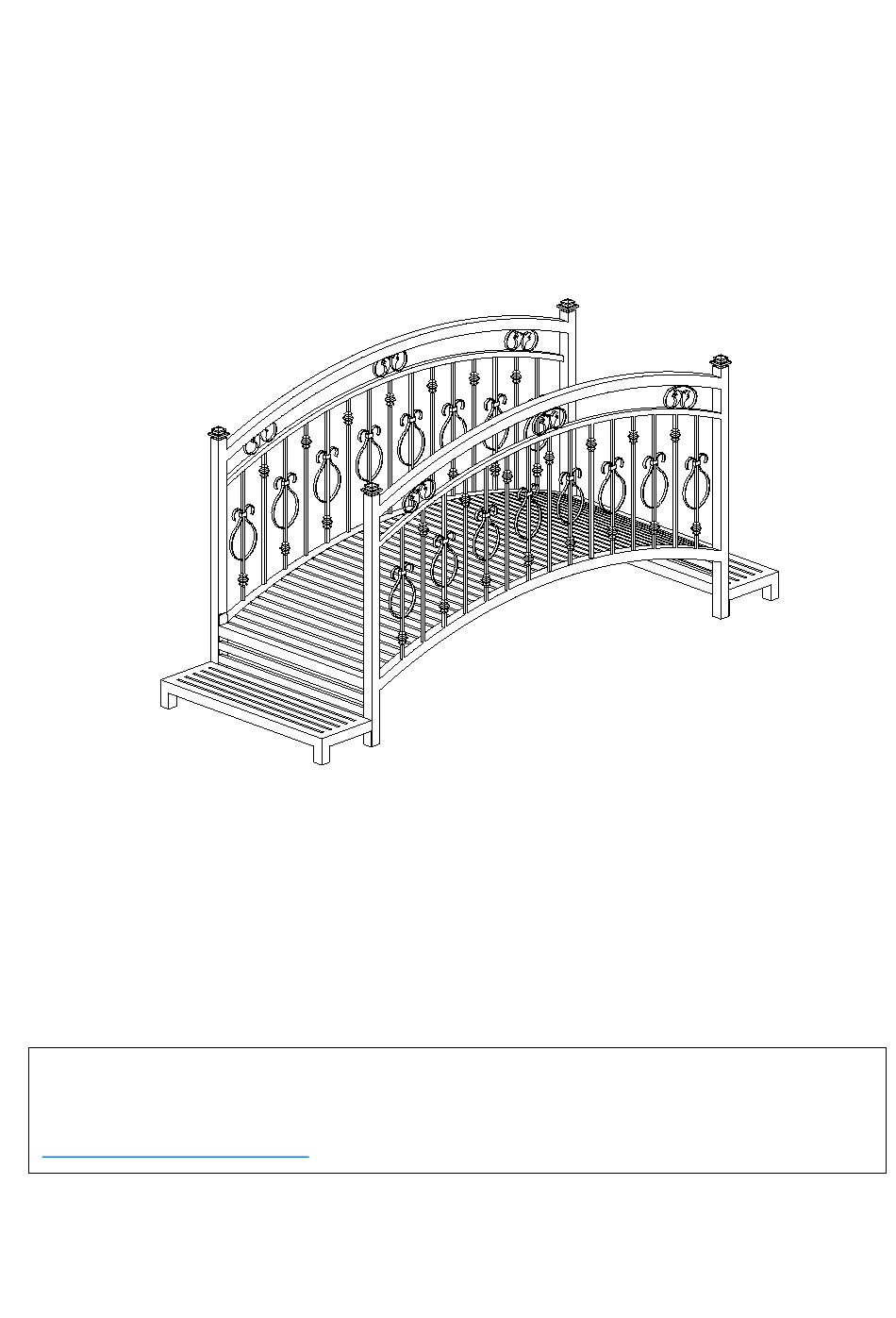

Assembly Instructions
for assistance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy D-BG001PST
Summary of Contents for Sunjoy D-BG001PST
- Page 1 Set it up on the level ground. IMPORTANT Please do not return this product to the store. For technical assistance or replacement parts call Sunjoy from 8:30 AM to 5:30 PM Eastern Time at 1-866-578-6569 or send email to customer.care@sunjoydirect.com for assistance.
- Page 2 Parts List bridge railing bridge top side panel support beam step...
- Page 3 Hardware List M8X20MM bolt TBZ00108020SS 8 PCS M8 flat washer 18PCS TBZ10808SS M10 nut 4 PCS TBZ20110SS M10 flat washer 4 PCS TBZ10810SS M8 nut 10 PCS TBZ20108SS M8 spring washer 14 PCS TBZ10508SS M8/M10 wrench 1 PC Fig.1: Attach support beam (D) onto bridge railings (A), then connect with flat washer (BB), spring washer (FF) and nut (EE), but do not tighten them at this step.
- Page 4 Fig.2: Attach side panel (C) onto bridge railings (A), then lock the lower part of side panel (C) with flat washer (CC) and nut (DD), then lock side panel (C) onto bridge railings (A) with bolt (AA), spring washer (FF) and flat washer (BB), but do not tighten them at this step.
- Page 5 Fig.4: Lock step (E) onto bridge railings (A) with bolt (AA) and flat washer (BB), then tighten all the bolts and nuts with wrench. Now, the garden bridge is ready to use. Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes.
- Page 6 Maintenance: Our iron/steel components for garden accessories and patio items are coated with rust inhibiting paint that protects it from rusting. However, due to the nature of iron, surface oxidation (rusting) will occur once these protective coatings are scratched. This is a natural process and is not a defect! To minimize this condition, we recommend care when assembling &...
