Installation
3.4.2 Flow assembly
CPA240
The CPA240 flow assembly offers up to three installation slots for sensors with a shaft diameter of 12
mm (0.47"), a shaft length of 120 mm (4.72") and a process connection Pg 13.5.
It is very suitable for use in pipes or at hose connections.
During trace measurement in particular, ensure the assembly is completely vented to avoid measuring
errors.

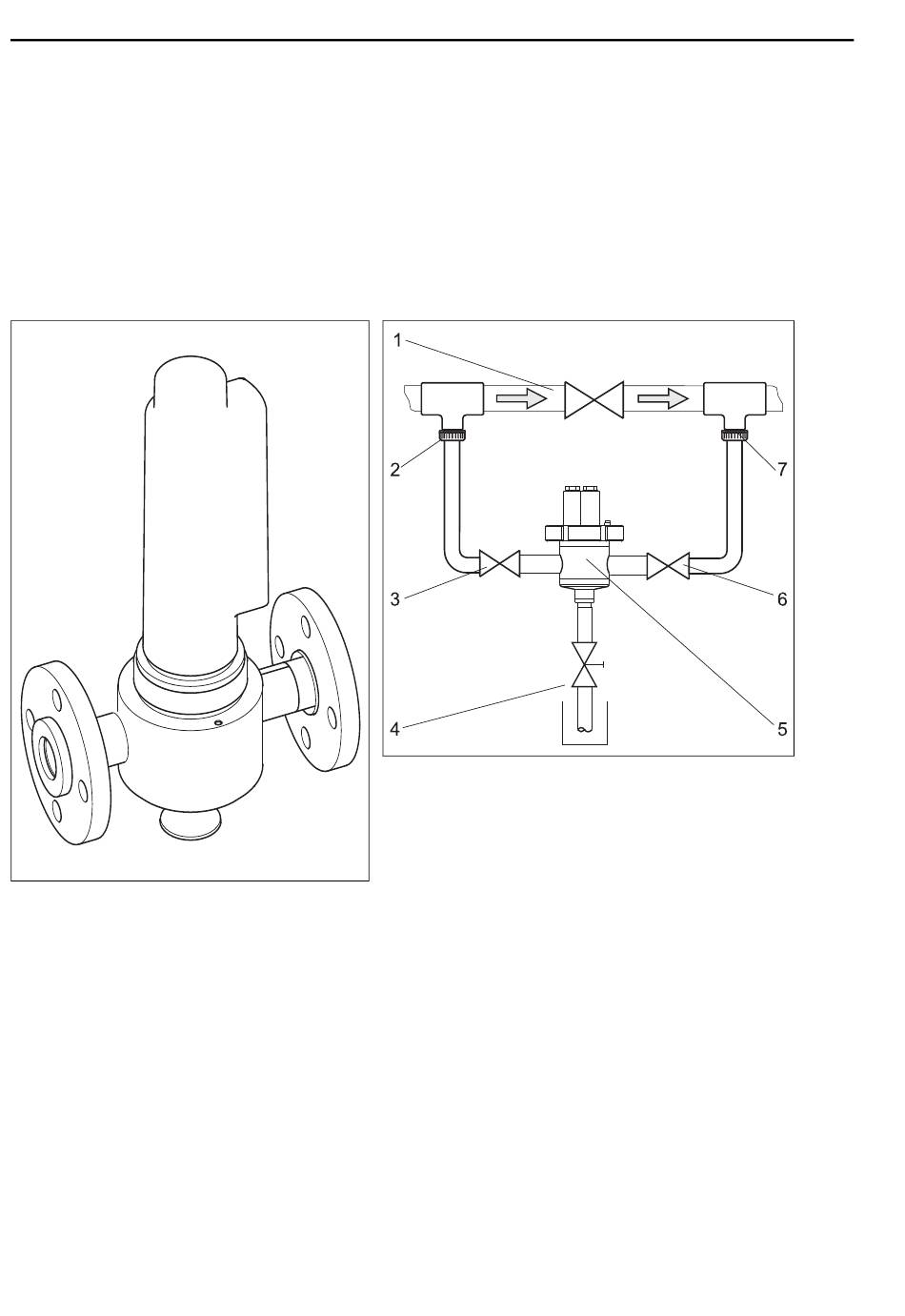

Fig. 4: CPA240 flow assembly with protective hood
12
Fig. 5: Bypass installation
1 Main line
2 Medium removal
3, 6 Manually actuated or solenoid valves
4 Sampling
5 Flow assembly with installed sensor
a0005720
7 Medium return
