Summary of Contents for Endress+Hauser Memosens COL37E

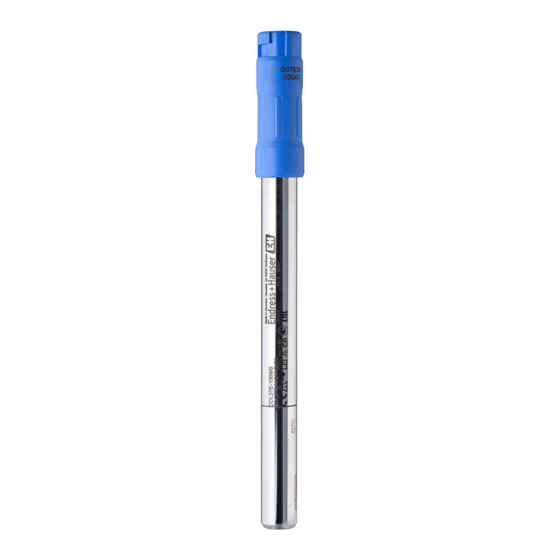

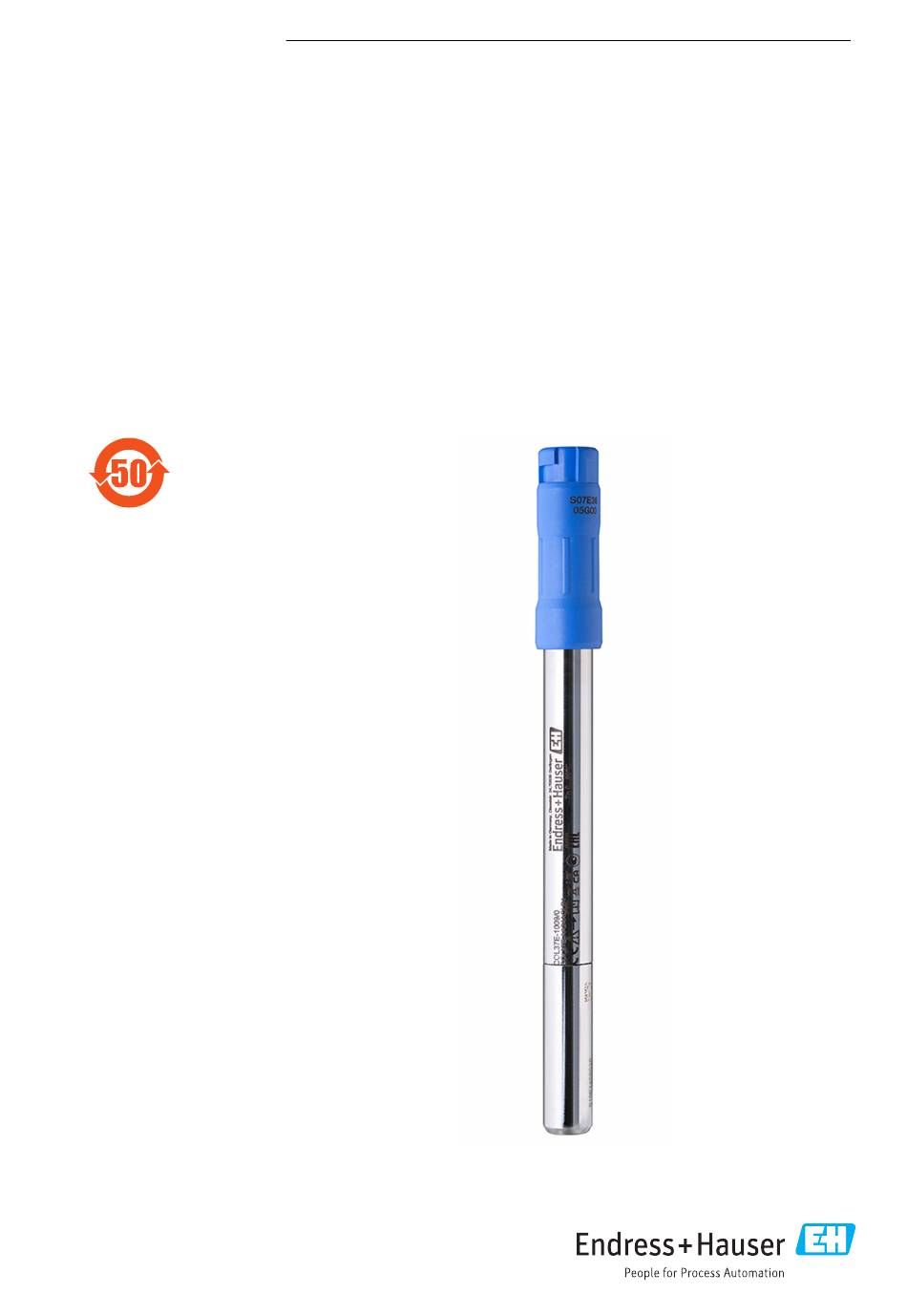

- Page 1 Products Solutions Services BA02236C/07/EN/01.21-00 71558605 2021-12-10 Operating Instructions Memosens COL37E Agile, optical oxygen sensor for laboratory measurements and random sampling in the field Digital with Memosens 2.0 technology...
-
Page 3: Table Of Contents
Memosens COL37E Table of contents Table of contents About this document ... 4 Warnings ......4 Symbols used . -
Page 4: About This Document
About this document Memosens COL37E About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣... -
Page 5: Documentation
Documentation The following manuals, which complement these Operating Instructions, can be found on the product pages on the Internet: Technical Information Memosens COL37E, TI01678C Operating Instructions Liquiline Mobile CML18, BA02002C Operating Instructions Memobase Plus CYZ71D, BA00502C Basic safety instructions Requirements for the personnel •... -
Page 6: Workplace Safety
Basic safety instructions Memosens COL37E NOTICE Halogen-containing solvents, ketones and toluene Halogen-containing solvents (dichloromethane, chloroform), ketones (e.g. acetone, pentanone) and toluene have a cross-sensitive effect and result in decreased measured values or, at worst, in the complete failure of the sensor! ‣... -
Page 7: Incoming Acceptance And Product Identification
Memosens COL37E Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved. -
Page 8: Scope Of Delivery
A new window (Device Viewer) opens. All of the information relating to your device is displayed in this window as well as the product documentation. 3.2.3 Manufacturer address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery The scope of delivery comprises: •... -
Page 9: Connection To Handheld Device Via M12
Memosens COL37E Commissioning Connection to handheld device via M12 cable A0041681 Connect the M12 cable to the handheld device. A0041680 Insert the sensor into the Memosens connection of the M12 cable and lock into place. Commissioning Calibration and adjustment The sensor is calibrated and adjusted in the factory prior to delivery and is therefore ready for immediate use. - Page 10 Commissioning Memosens COL37E Refer to Operating Instructions BA02002C on the product page (www.endress.com/cml18) for the measurement, calibration and adjustment of the sensor on the Liquiline Mobile CML18. Recommended procedure after replacing a spot cap First calibrate and adjust the sensor at the zero point and then in the presence of oxygen.
-
Page 11: Maintenance
Memosens COL37E Maintenance Is the measured value display on the transmitter stable: Perform the calibration in accordance with the Operating Instructions for the transmitter. Pay particular attention to the software settings for the stability criteria for calibration and for the ambient pressure. -
Page 12: Repair
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions. -
Page 13: Accessories
Memosens COL37E Accessories Accessories The following are the most important accessories available at the time this documentation was issued. ‣ For accessories not listed here, please contact your Service or Sales Center. Device-specific accessories 8.1.1 Measuring cable Memosens data cable CYK10 •... -
Page 14: Technical Data
Technical data Memosens COL37E 8.1.4 Maintenance kit • Maintenance kit for Memosens COL37E • Scope of delivery of the: • Spot cap • O-ring mounting tool • Maintenance instructions • Calibration bottle • O-rings • Certificate • Ordering information: www.endress.com/col37e under "Accessories/spare parts"... -
Page 15: Environment
Memosens COL37E Technical data 9.2.3 Maximum measured error ±1 % or ±8 µg/l (ppb)of the measured value (the higher value is relevant in each case) Environment 9.3.1 Ambient temperature range –5 to +60 ˚C (23 to 140 ˚F) 9.3.2 Storage temperature range -25 to 50 °C (-13 to 122 °F) - Page 16 Technical data Memosens COL37E Spot cap Stainless steel 1.4435 (AISI 316L) Spot layer Silicone 9.5.3 Temperature sensor Pt1000 (Class A according to DIN IEC 60751) Endress+Hauser...
- Page 20 *71558605* 71558605 www.addresses.endress.com...
