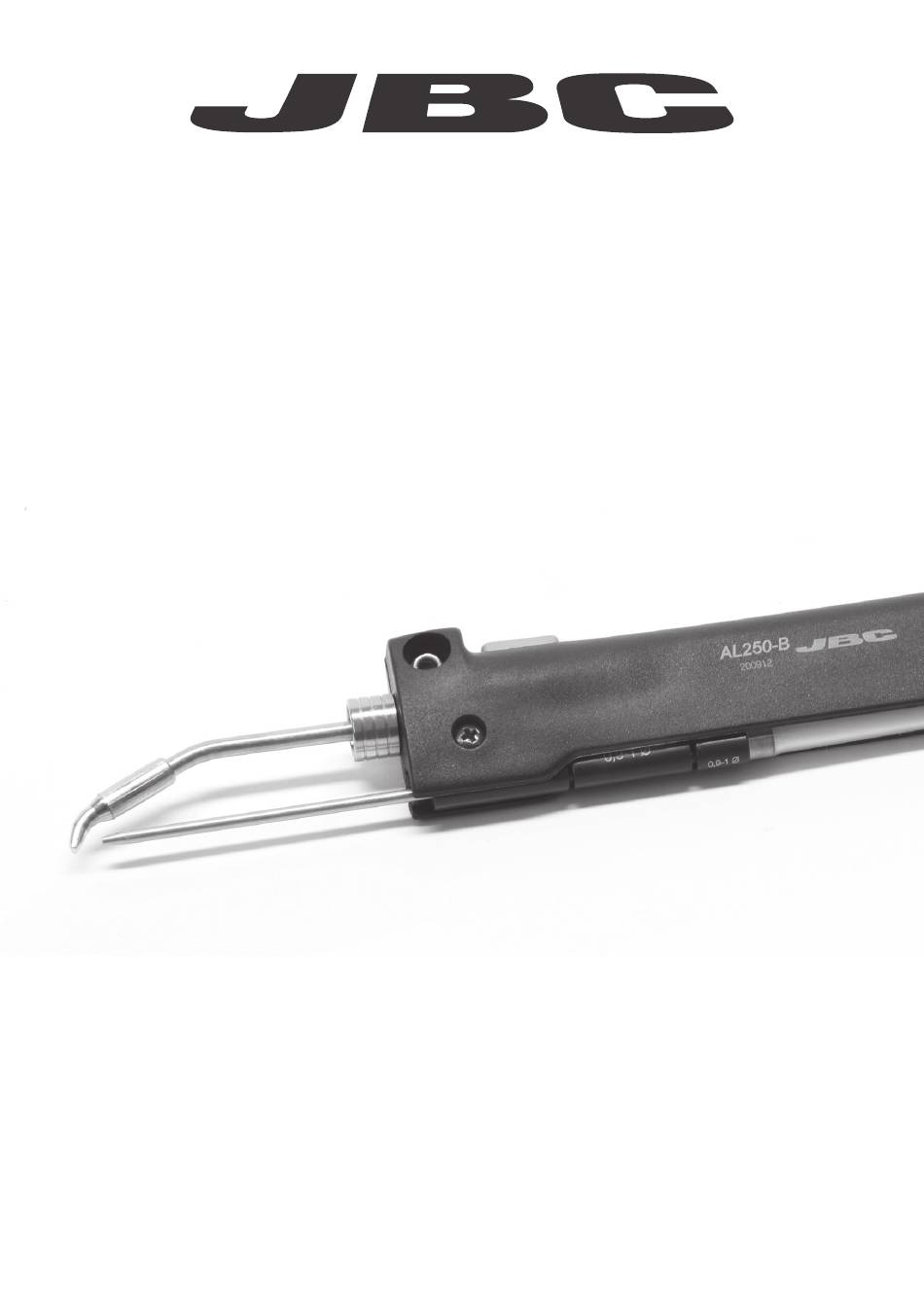

www.jbctools.com
INSTRUCTION MANUAL
Auto-Feed Iron
Ref. AL250-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc AP250

Summary of Contents for jbc AP250

  • Page 1 www.jbctools.com INSTRUCTION MANUAL Auto-Feed Iron Ref. AL250-B...
  • Page 2 Packing List The following items should be included: Auto-feed Iron ............................1 unit Ref. AL250-B Includes: C250403 Cartridge Guide set - Ref. 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in) C250403 Guide set - Ref. 0002401 Allen Key 2,5mm ........1 unit Manual ............
  • Page 3 w w w.jbctools.com Features The AL250-B Auto-feed Iron is compatible only with Auto-feed Soldering station. Main switch Fuse Power Socket Equipotential connection Pedal connection (optional) Stand Ref. AL-SD Auto-feed Iron Ref. AL250-B...
  • Page 4 Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron. Mark Guide tube Ref . 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in) 2.
  • Page 5 w w w.jbctools.com Compatible Cartridges The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 2,2 ø 0,4 ø 0,6 C250-420 C250-401 C250-402 C250-403 C250-409 C250-410 4,8x1,5 1,8x0,8...
  • Page 6 Accessories Fume Extractor Ref. F4468 - 2 m (78.74 ft) lenght. The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint. Support Optional Guide set Ref. AL-IA Ref. 0002399 Ø 0,4 - 0,5 mm (0.015 - 0.02 in) 0002402 Ø...
  • Page 7 Use a damp cloth or alcohol. - Periodically check all cables and tubes connections. - Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only be performed by a JBC authorized technical service.
  • Page 8 - Diameter of solder wire: Ø 0,4 - 1,8 mm (0.02 - 0.07 in) Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
